| Brand | Jade Bird |

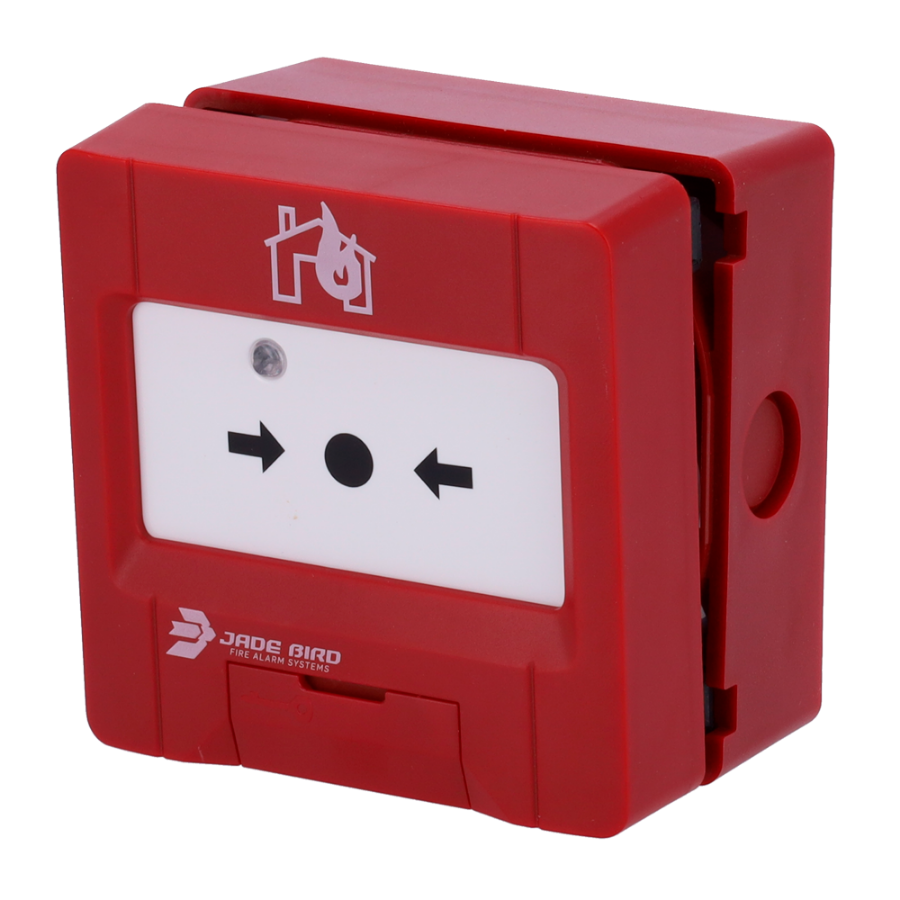

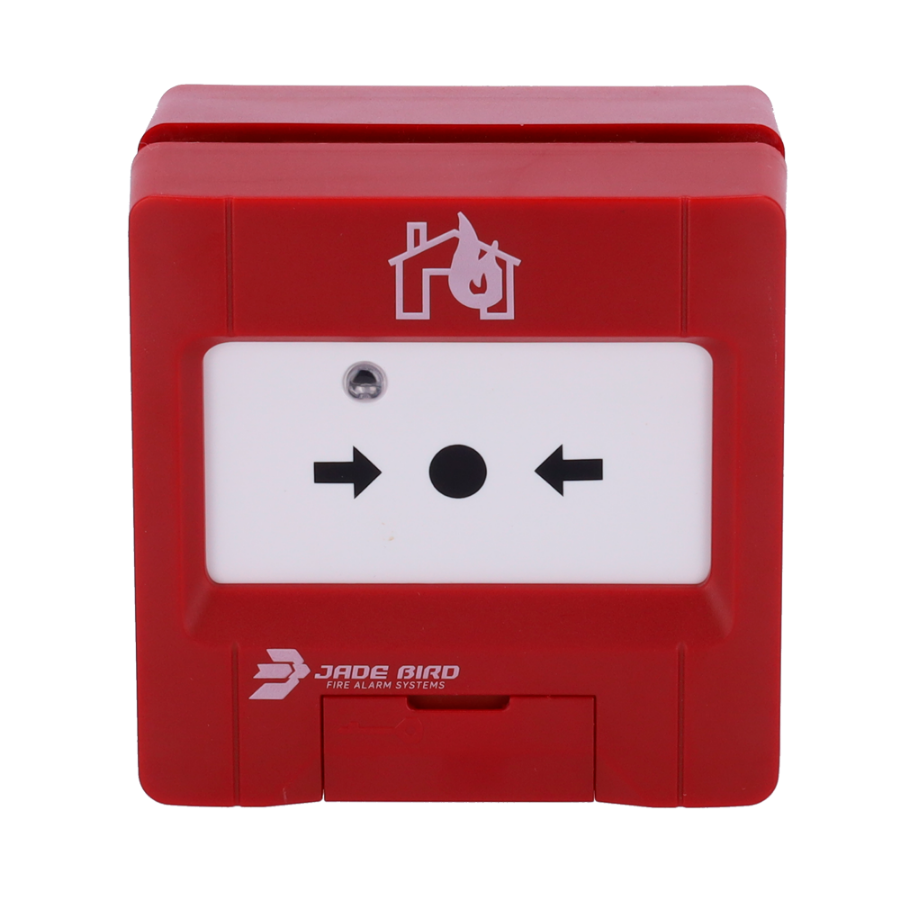

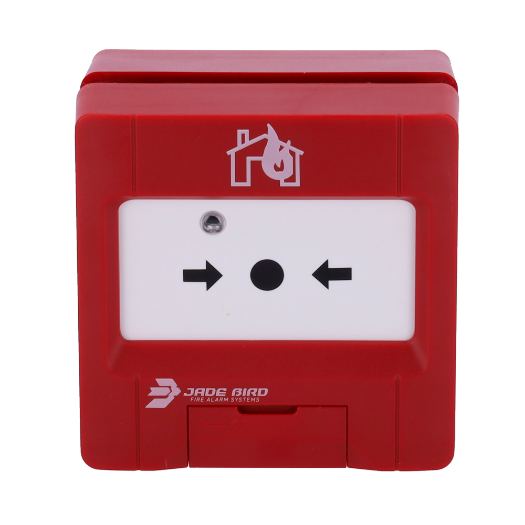

| Type | Manual resettable pushbutton |
| Operating voltage | 19-28 VDC (pulse width of JBE protocol) |
| Connection | JBE communication bus 2 wires, no polarity |
| Cable size | Twisted pair without mesh 0.5 - 2.5 mm2 |
| Consumption in idle mode | ?0.3 mA @24 V |
| Consumption in alarm mode | ?1.0 mA @24 V |
| Dry contact | 0.1 A / 30 VDC |
| Temp. of work | -10oC to 55oC |
| Temp. of storage | -20oC to 60oC |
| Humidity | ? 95% RH (non-condensing) |
| Address | Addressing tool JBE-AT1 |
| Address range | 1-200 |
| Led indicator | Rest: Blinking with loop poolingAlarm: Fixed ignition |
| Dimensions (HxWxD) | 90 mm × 90 mm × 52 mm |
| Protection Grade | IP40 |
| Weight | 0,16 kg |
| Standard | EN 54-11 |
