| LEDs | 12 |
| Wavelength | 850 nm |

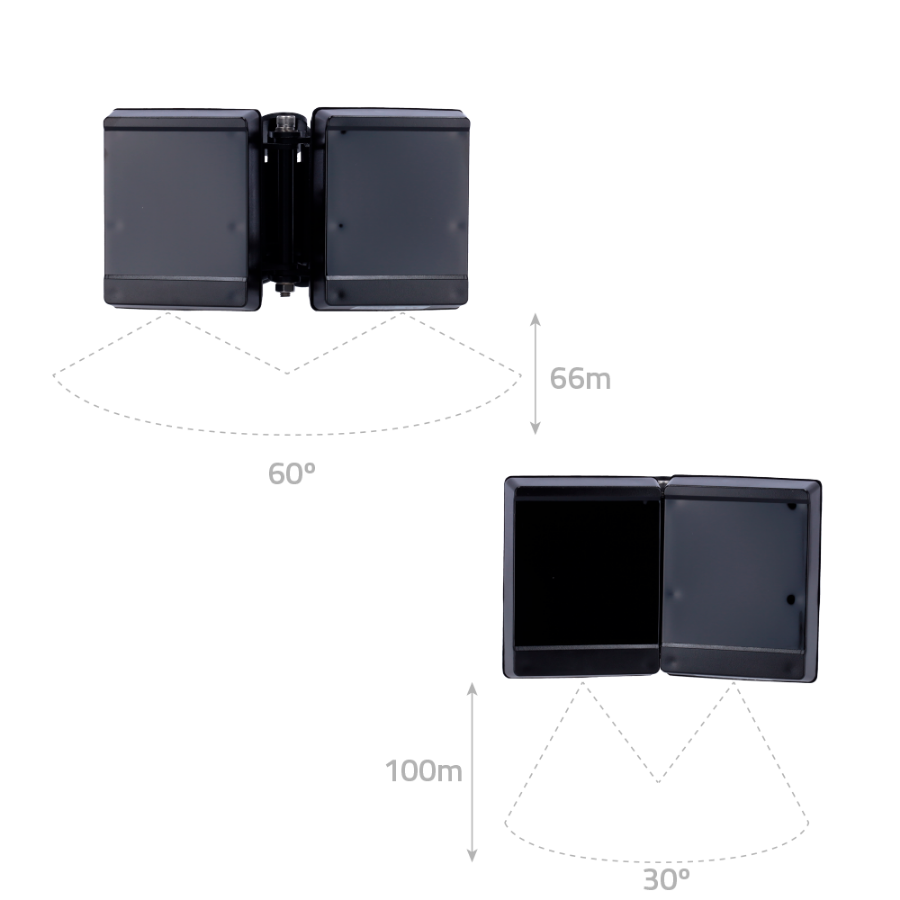

| Opening angle | Straight support:30o, support turned to max : 60o |
| Range | 66m with 60o and up to 100m if 30o |
| Power | 12VDC/1.6 A |
| Degree of protection | IP66, IK10 |
| Temp. operation | -30o C ~ 50o C |
| Dimensions | 171 (W) x 118 (H) x 85 (D) mm |
| Weight | 1 kg |
