| Brand | HiLook |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | Motorized varifocal 2.8~12 mm |
| Viewing Angle (FOV) | H: 96.7~29.7°, V: 51.7~16.7°, D: 114.3~34° |
| Range performance | 64~198 m (D), 25.4~78.6 m (O), 12.8~39.6 m (R), 6.4~19.8 m (I) |
| Minimum illumination | Colour: 0.005 Lux @(F1.6, AGC ON)0 Lux with IR range 30 m |
| Supplementary lighting | Hybrid light:IR Range 30 mWhite light range 30 m |
| Day/Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal memory | MicroSD card slot up to 256 GB |
| Audio | Integrated microphone |
| Audio type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bitrate | 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |

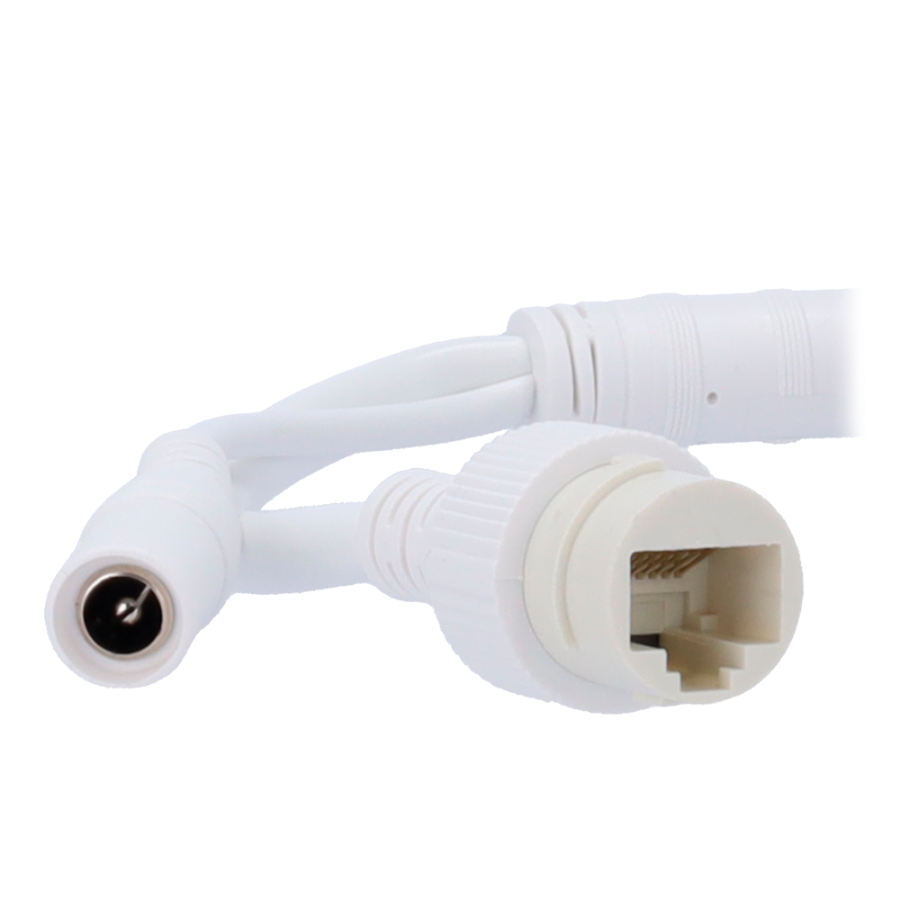

| Power | DC 12 V / 800 mA / 9.6 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67Vandal proof IK08 |
| Material | Base: MetallicCover: Plastic |
| Temp. operation | -30o C ~ +60o C |
| Dimensions | O 121.5 mm x 97.6 (H) mm |

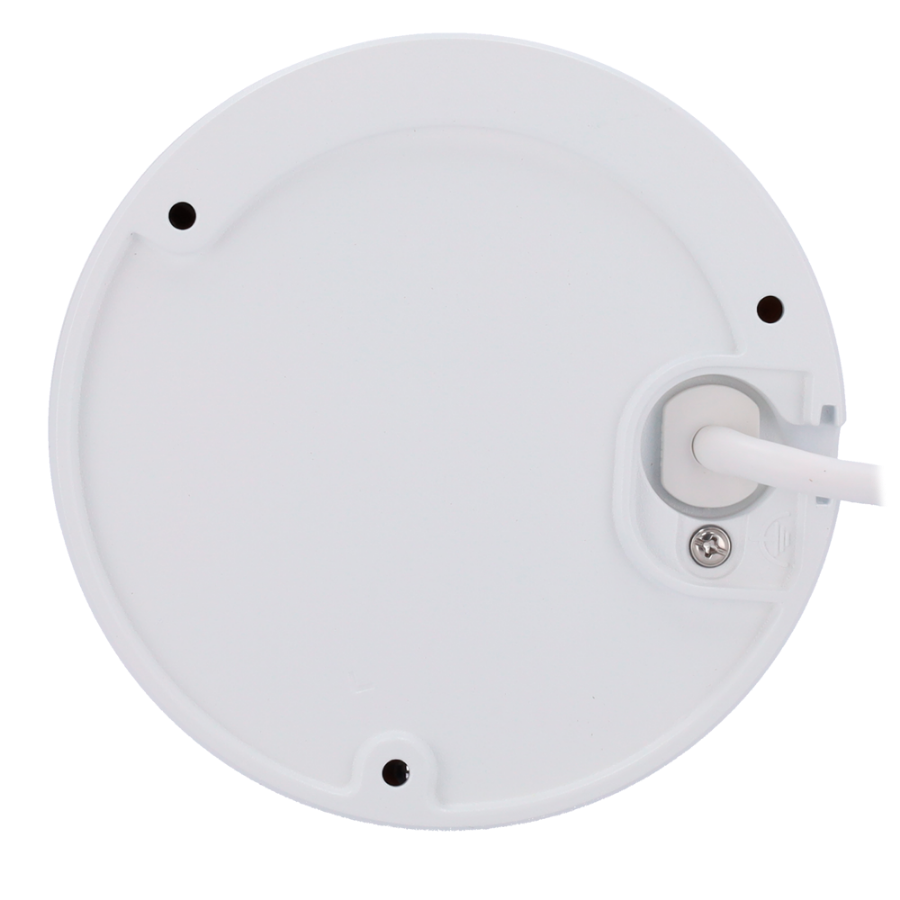

| Base dimensions | O base 121.5 mm / O entre tornillos 104.7 mm / 3 tornillos |
| Weight | 540 g |
