| Brand | HiLook |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840X2160) |
| Main Stream rate | 12.5 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream rate | 12.5 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 113°, V: 62°, D: 134° |
| Range performance | 79 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Minimum illumination | Colour: 0.01 Lux @(F2.0, AGC ON)0 Lux with IR range 30 m |
| Supplementary lighting | Hybrid light:IR Range 30 mWhite light range 30 m |
| Day/Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal memory | Does not have |
| Audio | Integrated microphone |
| Audio type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bitrate | 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |

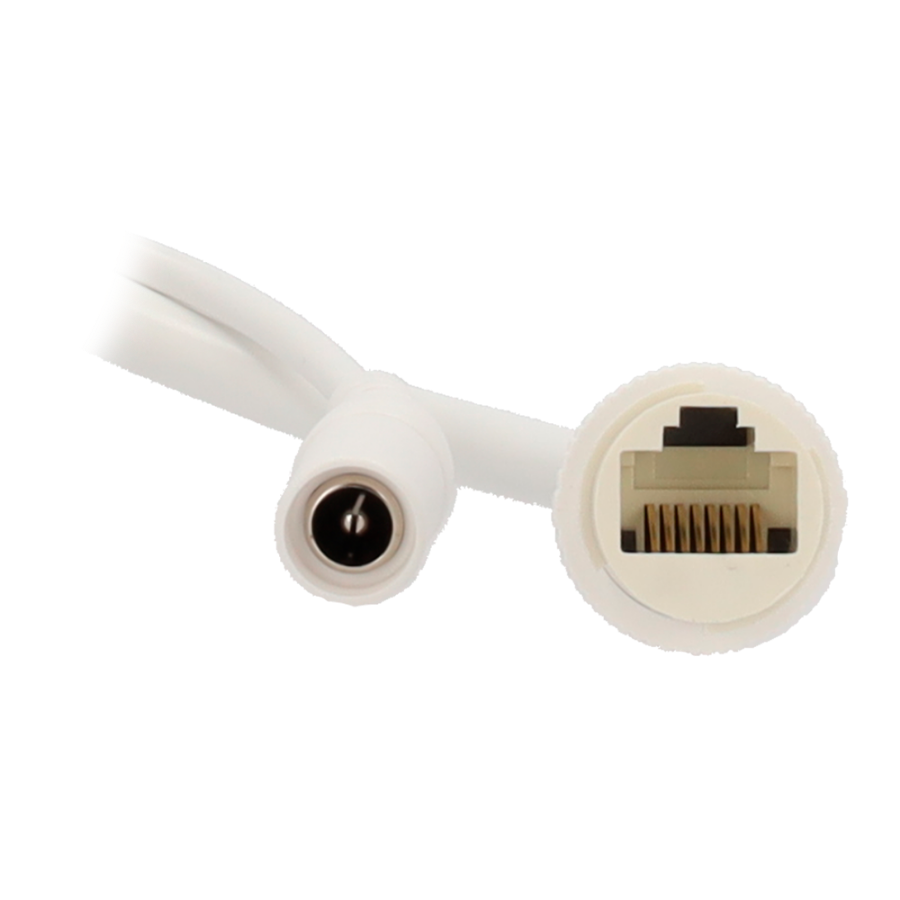

| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 410 mA / 5 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30o C ~ +60o C |
| Dimensions | 69.1 (W) x 66 (H) x 184.1 (D) mm |

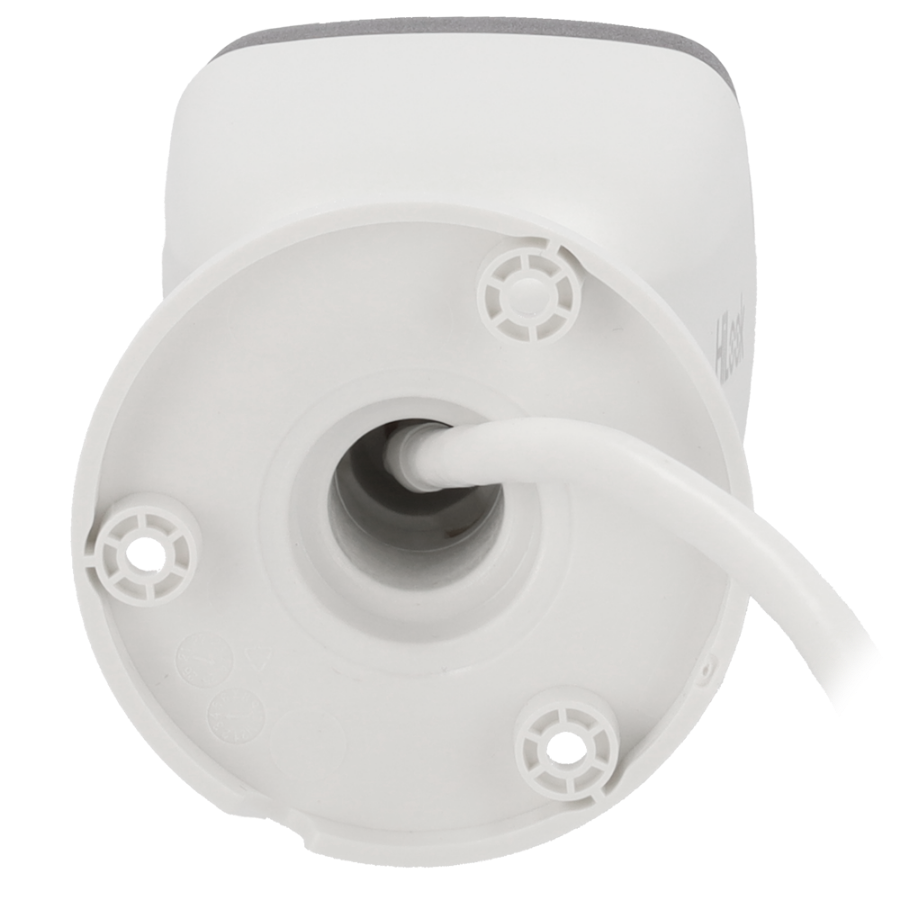

| Base dimensions | O base 70 mm / O entre tornillos 55 mm / 3 tornillos |
| Weight | 270 g |
