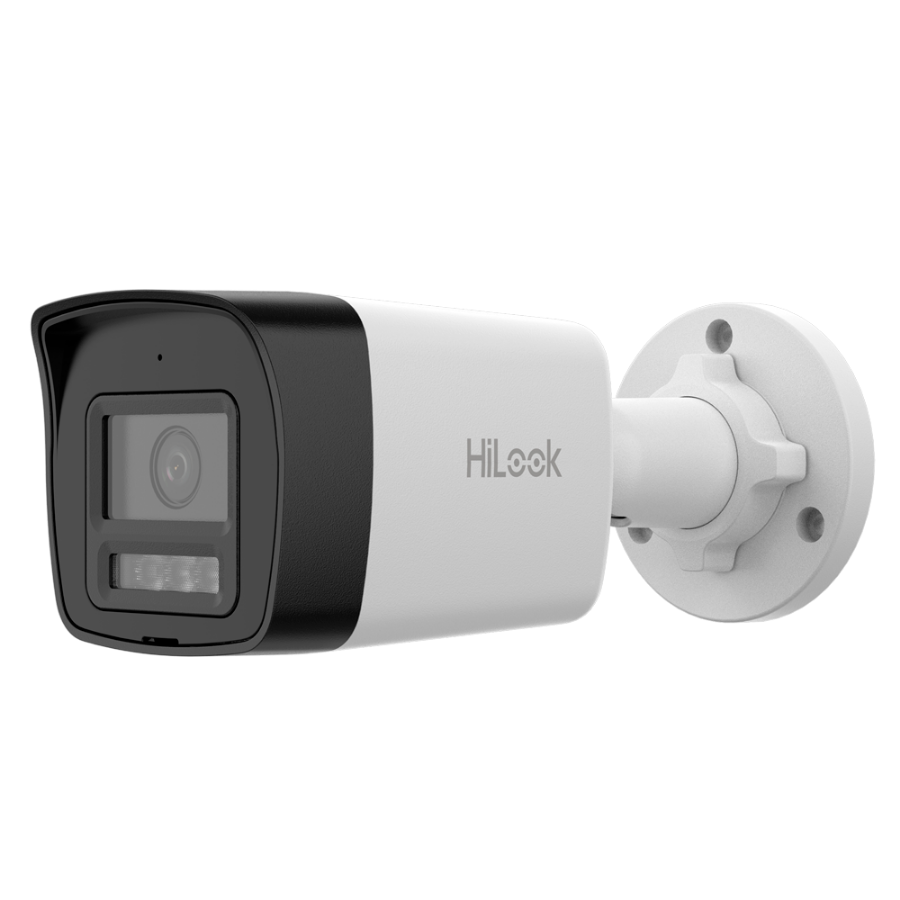

| Brand | HiLook |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 104°, V: 57°, D: 123° |
| Range performance | 53 m (D), 21 m (O), 10 m (R), 5 m (I) |
| Minimum illumination | Colour: 0.01 Lux @(F2.2, AGC ON)0 Lux with IR range 20 m |
| Supplementary lighting | Hybrid light:IR Range 20 mWhite light range 20 m |
| Day/Night | Removable mechanical ICR filter |
| Image improvements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion detection 2.0 with human classification applied in motion detection. |
| Internal memory | Does not have |
| Audio | Integrated microphone |
| Audio type | Mono |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio bitrate | 64 Kbps (G.711ulaw)/16 a 64 Kbps (AAC-LC) |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 420 mA / 5 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67 |
| Material | Plastic |
| Temp. operation | -30o C ~ +45o C |
| Dimensions | 69.1 (W) mm x 66.9 (H) mm x 172.9 (D) mm |
| Base dimensions | O base 70 mm / O entre tornillos 55 mm / 3 tornillos |
| Weight | 240 g |
