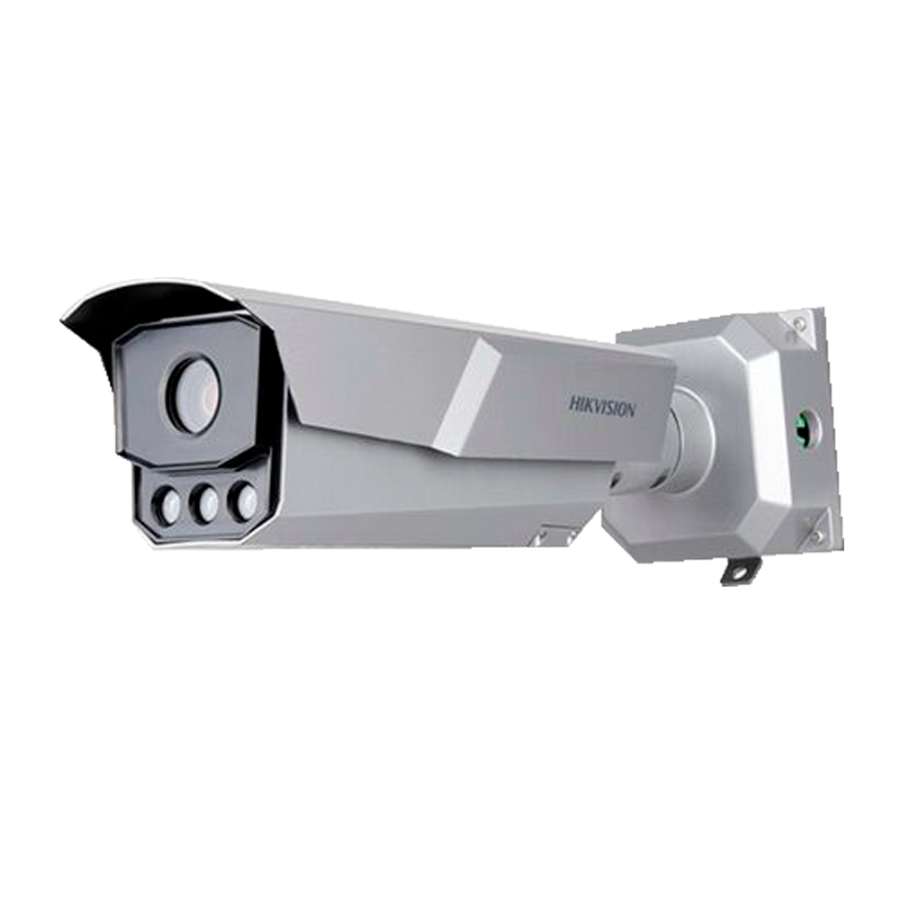

| Brand | Hikvision |
| Range | SOLUTIONS |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | 25 fps (2688×1520, 1920×1080, 1280×760, 704x576, 352x288) |
| Extra Stream rate | 25 fps (1920×1080, 1280×760, 704x576, 352x288) [%VAR%] |
| Third stream rate | 25 fps (1280×760, 704×576, 325×288) |
| Compression | H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 10~50mm varifocal |
| Viewing Angle (FOV) | H: 32.2~7.8°, V: 18.1~4.4°, D: 37.1°~8.95° |
| Minimum illumination | Colour: 0.0005 Lux @ (F1.2, AGC ON)Black and White: 0 Lux with IR |
| Infrared lighting | IR LEDs range 50 m |
| Shutter time | 1/25~1/100,000 s |
| Day / Night | Removable mechanical ICR filter |
| Image improvements | WDR (140 dB), BLC, 3D-DNR, AGC, AWB |
| ANR | Yes |
| Motion Detection | Yes |
| License plate recognition | YesSupports detection of vehicles without license plates.Supports motorcycle license plate detection. |
| Accuracy | Capture accuracy > 99%,Vehicle direction of motion recognition accuracy > 98.5%,LPR accuracy > 98%,Erroneous capture rate < 2%. |
| Traffic management functions | Detection up to 3 lanes.Hull detection and non-motorized manned vehicle detectionTraffic flow detection: average speed, traffic flow, queue lengths and traffic condition. Incident detection: traffic j |
| Satellite positioning | GPS |
| Wireless communication | Micro SIMStandard LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE |
| Frequency wireless communication | LTE FDD: Band 1, 2, 3, 4, 5, 7, 8, 12, 17, 28, 66LTE TDD: Band 38, 40WCDMA/HSPA+: Band 1, 2, 3, 4, 5, 8GSM/GPRS/EDGE: 850/900/1800/1900 MHz |
| Alarms | 1 inputs/ 1 outputs |
| Audio | 1 Input / 1 Output |
| Audio Compression | G.711/G.722.1 |
| Audio bit rate | 8 Kbps (G.711)/16 Kbps (G.722.1) |
| Internal memory | Slot for micro SD card up to 512 GB |
| Network interface | Ethernet 10/100/1000M BaseT |
| Communication | 1 x RS-485 / Wiegand |
| Remote access | Web Browser, Hik-Central Master, Hik-Central Pro |
| Operating system | Linux |
| Interoperability | ONVIF (Profiles S, G, T, M), ISAPI, SDK |
| Power | DC 12 ~ 24V / 1250 mA / 15 W max.PoE+ IEEE802.3at |
| Degree of protection | Weatherproof IP67Vandal proof IK10 |
| Material | Aluminium alloy |
| Temp. operation | -30o C ~ +70o C |
| Dimensions | 132.8 (H) x 120 (W) x 428.5 (D) mm |
| Base dimensions | 120 x 120 mm / O entre tornillos 62.6 mm / 4 tornillos |
| Weight | 2975 g |
