| Brand | V-SOL |

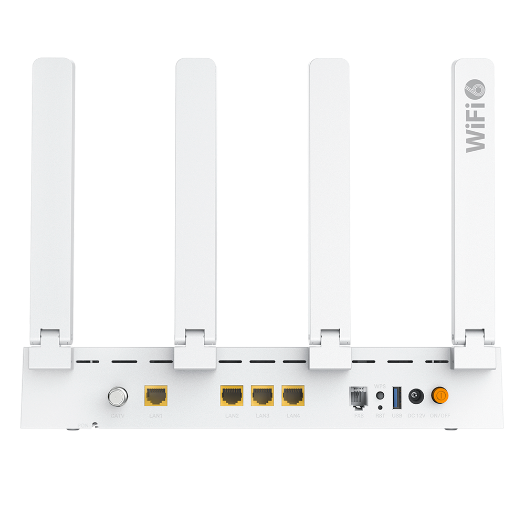

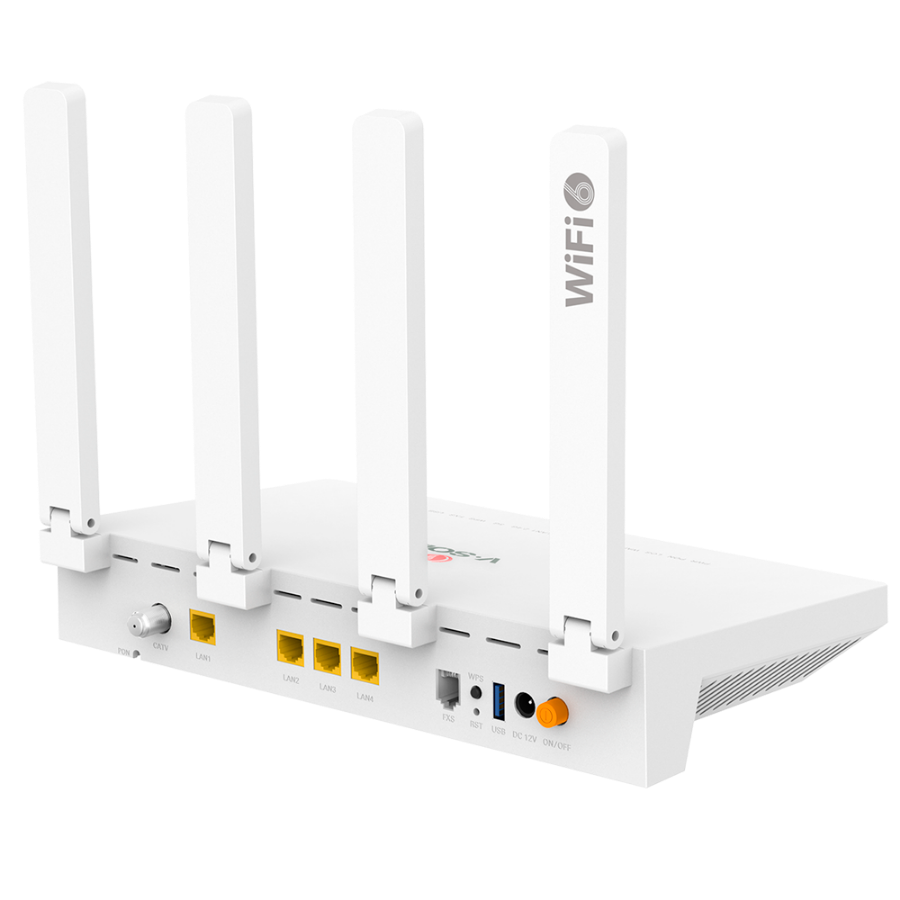

| Interface | 1X PON 4x LAN RJ45 10/100/1000Mbps 1x RJ11 ( FXS ) 1x CATV 1x USB3.0 |
| PON | XPON Port (EPON PX20+ and GPON Class B+)Single-mode SC, SC/UPC connectorOptical transmission power: 0 to +4 dBmReceiving sensitivity: -27 dBmOptical overload power: -3dBm (EPON) o -8dBm (GPON)Transmis |
| CATV | Optical reception wavelength: 1550 ± 10 nmOptical input range: +2 ~ -18 dBmOptical reflection loss: ?40 dB- RF frequency range: 47 ~ 1000 MHzRF output impedance: 75 ?RF output level and AGC range:?81 |
| WiFi Antennas | Complies with IEEE802.11b/g/n/acWi-Fi: 2,4 GHz, 5 GHz 2x2, speed up to 1,167 Gbps, multiple SSIDsTransmission power: 2,4 GHz: 18 dBm; 5 GHz: 17 dBmReceiving power: 2,4 GHz: HT40-MCS7 -71 dBm; 5 GHz: V |
| Funciones WiFi | 802.11b/g/n/ac integradoAutenticación: WAP-PSK (TKIP)/WAP2-PSK (AES)Múltiples SSIDSSID ocultosWiFi MeshAdmite hasta 64 conexiones de dispositivos |
| Protocolos de Gestión | OAM/OMCI/Telnet/Web/TR069Admite la gestión completa de las funciones de HGU mediante VSOL OLT |
| Funciones de capa 2 ( switching ) | Compatible con bridge 802.1D y 802.1ad, VLAN 802.1Q |
| Funciones de capa 3 ( routing ) | IPv4, IPv6 e IPv4/IPv6 dual stackDHCP/PPPOE/EstáticoRuta estática, servidor DHCPNAT/DMZ/DDNS/Servidor virtual |
| Multicast | IGMP v1/v2/v3, espionaje IGMPProxy IGMPEspionaje MLD v1/v2Proxy MLD |
| Voip | SIP e IMS SIPCódecs G.711a/G.711u/G.722/G.729Cancelación de eco, VAD/CNG, Retransmisión DTMFFAX T.30/T.38Identificación de llamada/Llamada en espera/Desvío de llamadas/Transferencia de llamadas/Retenc |
| Seguridad | Funciones básicas de firewall Filtrado de MAC basado en MAC o URLACLsCompatible con detección de bucles |
| Funciones del sistema | NTP (Protocolo de Tiempo de Red) Reinicio programado del dispositivoHerramientas de diagnósticos de ping y traceroute |
| Color | Blanco |
| Dimensiones | 260.4mm x 157.4mm x 45.8mm |
| Peso | 550g |
| Temp. Funcionamiento | 0o C ~ +55o C |
| Alimentación | DC 12V 1.5A (adaptador incluido) |

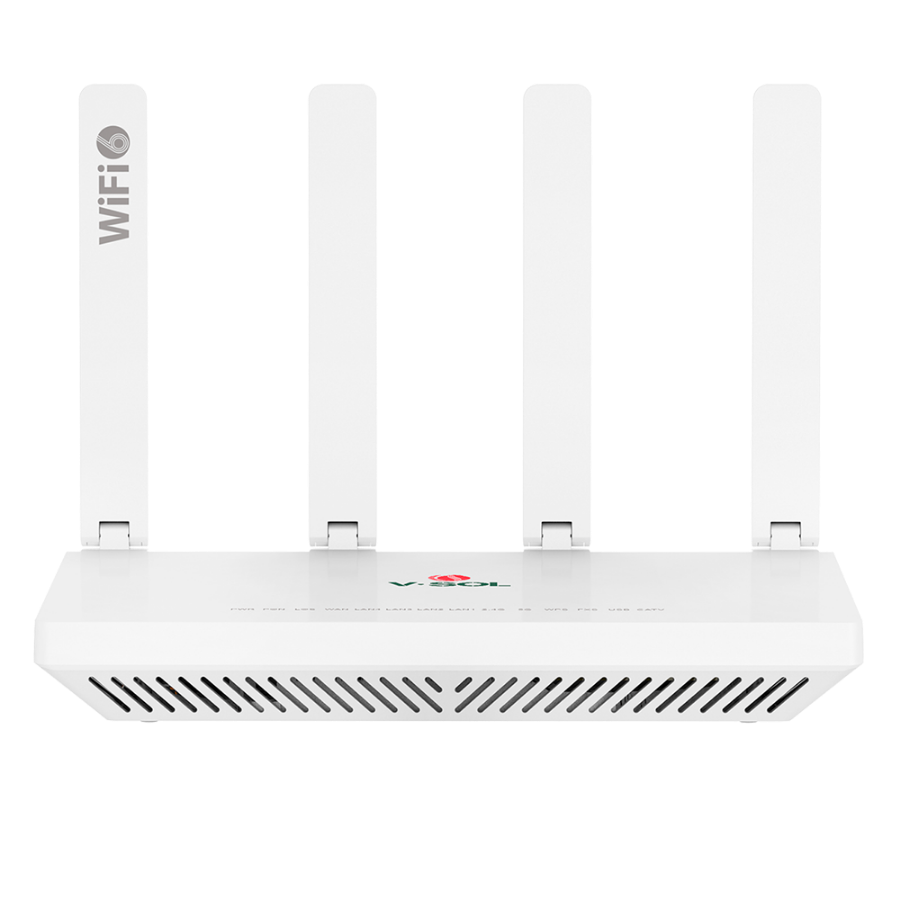

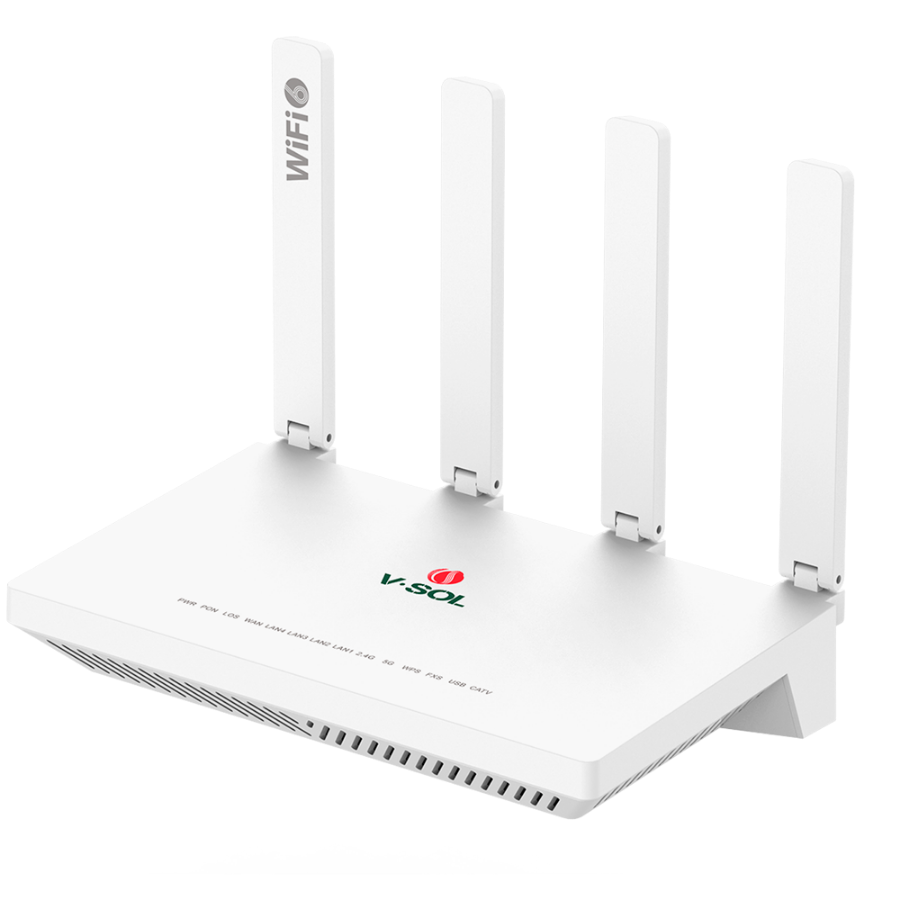

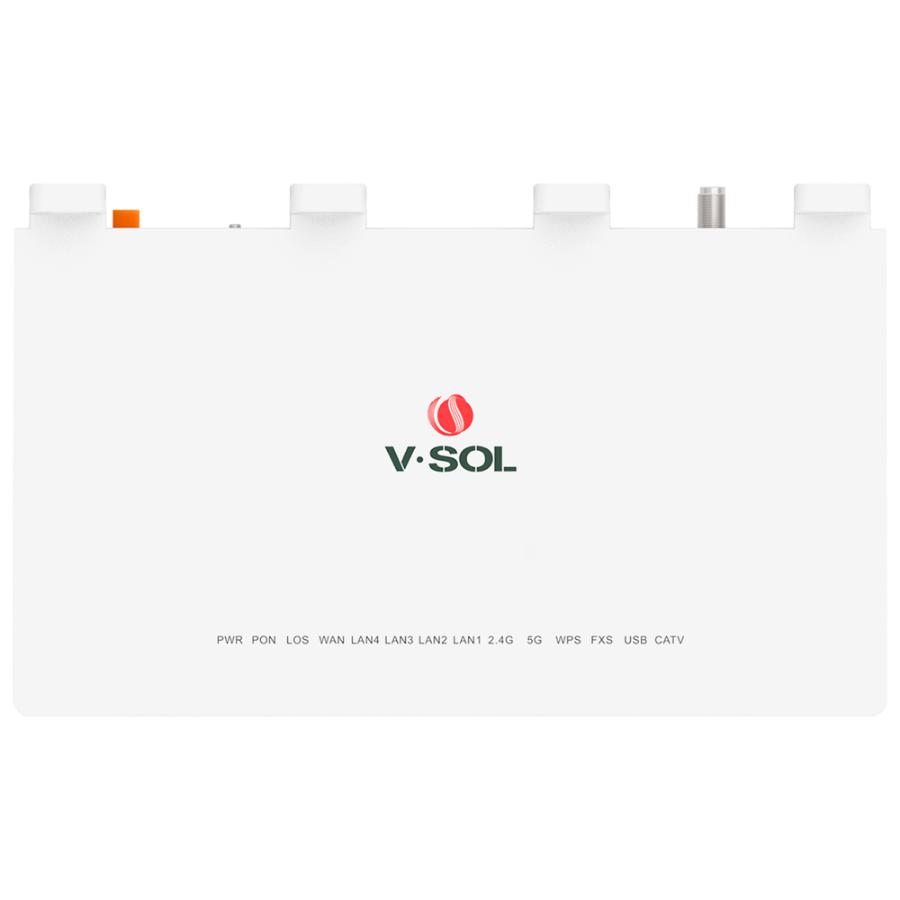

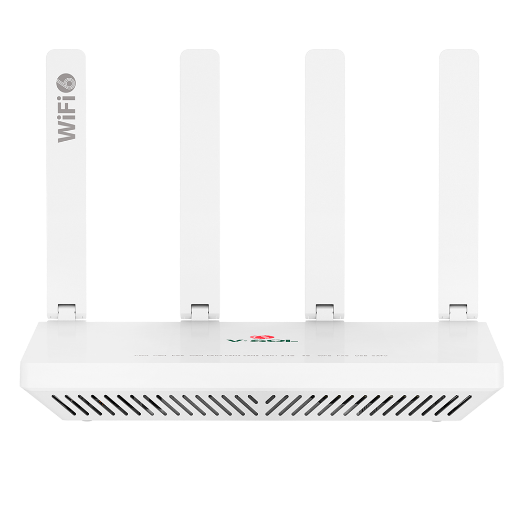

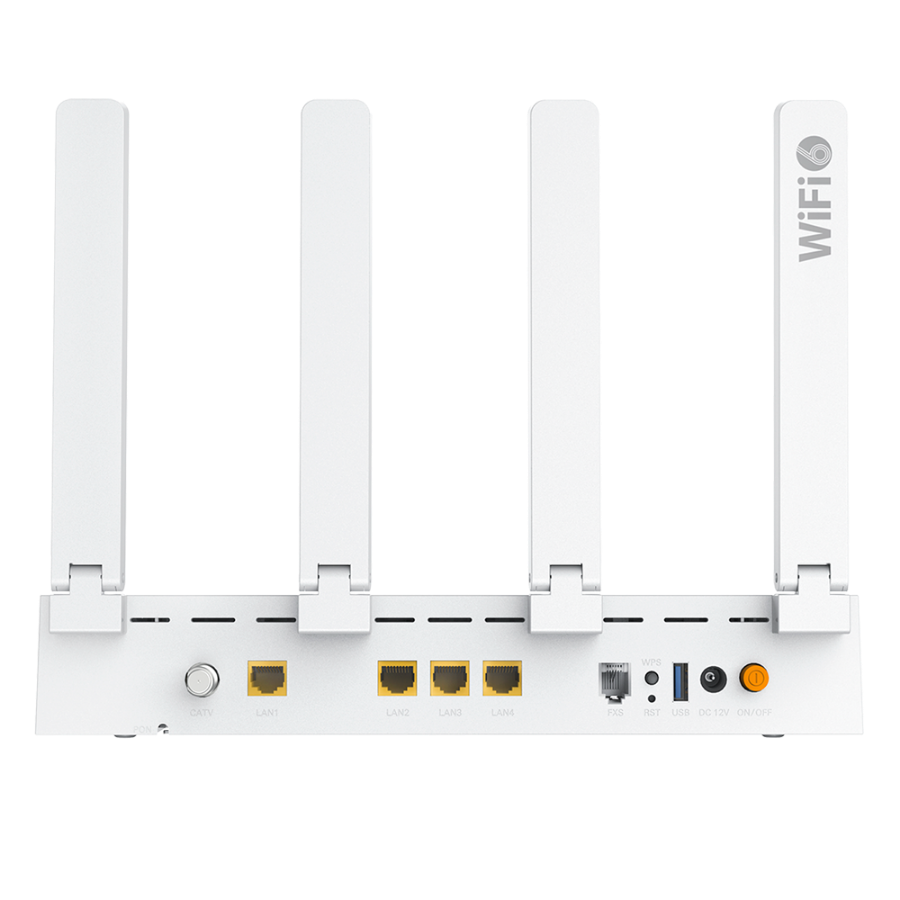

The HG3232AX30T (4GE+1POTS+CATV+WiFi6 XPON HGU ONT) is a broadband access device designed to meet the demands of fixed network operators for FTTH and triple play services.

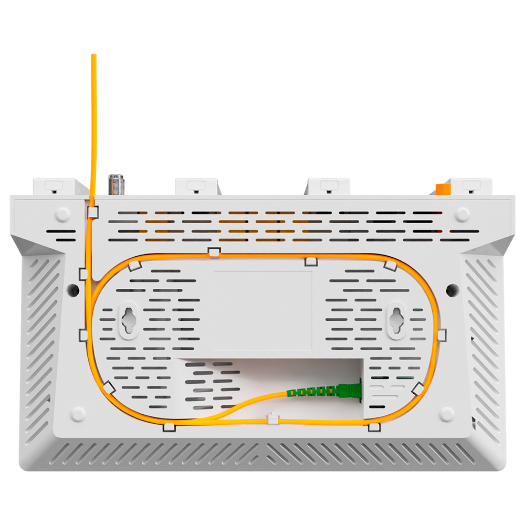

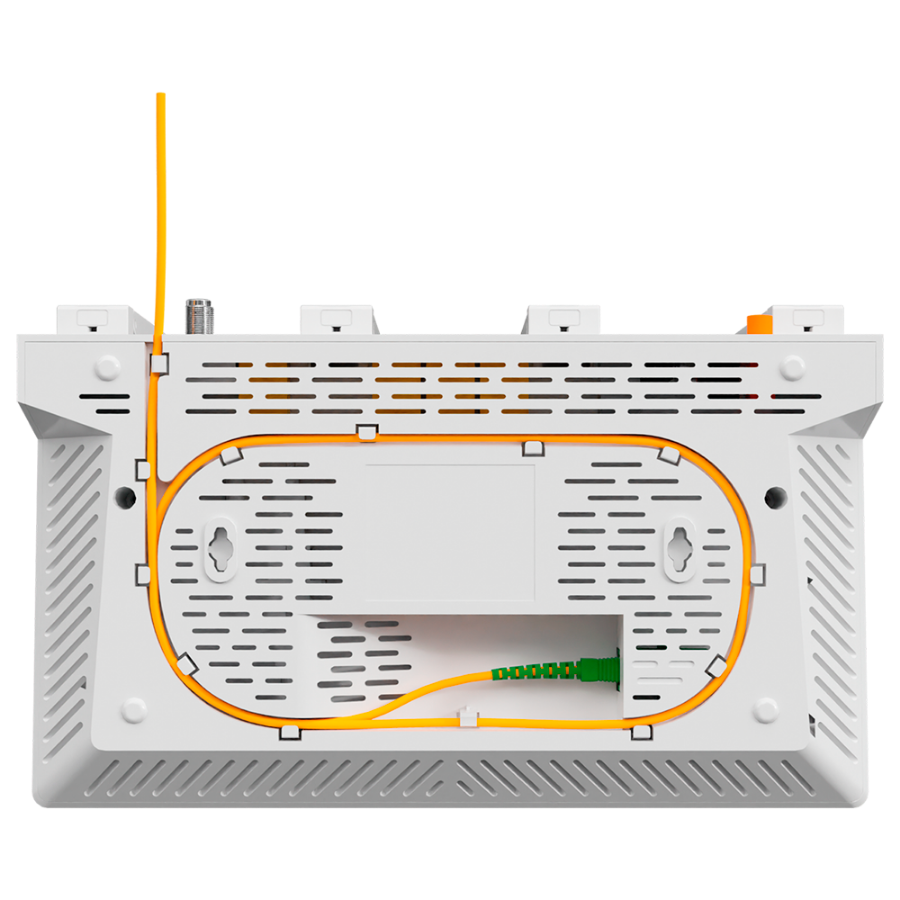

This ONT is based on a high-performance chip solution compatible with dual-mode XPON technology (EPON and GPON). With WiFi speeds up to 3000 Mbps, it also supports IEEE 802.11b/g/n/ac/ax WiFi 6 technology and other 2/capa 3, layer functions, providing data services for carrier-grade FTTH applications. In addition, this ONT is compatible with OAM/OMCI protocols, which allows the configuration and management of various services in the VSOL OLT, facilitating its management and maintenance, and ensuring the quality of service (QoS) for various services. Complies with international technical standards such as IEEE802.3ah and ITU-T G.984. The HG3232AX30T is available in two colors: black and white. Thanks to its lower disc fiber structure design, it can be placed on a desk or on the wall, easily adapting to a variety of scene styles.
