| Brand | V-SOL |

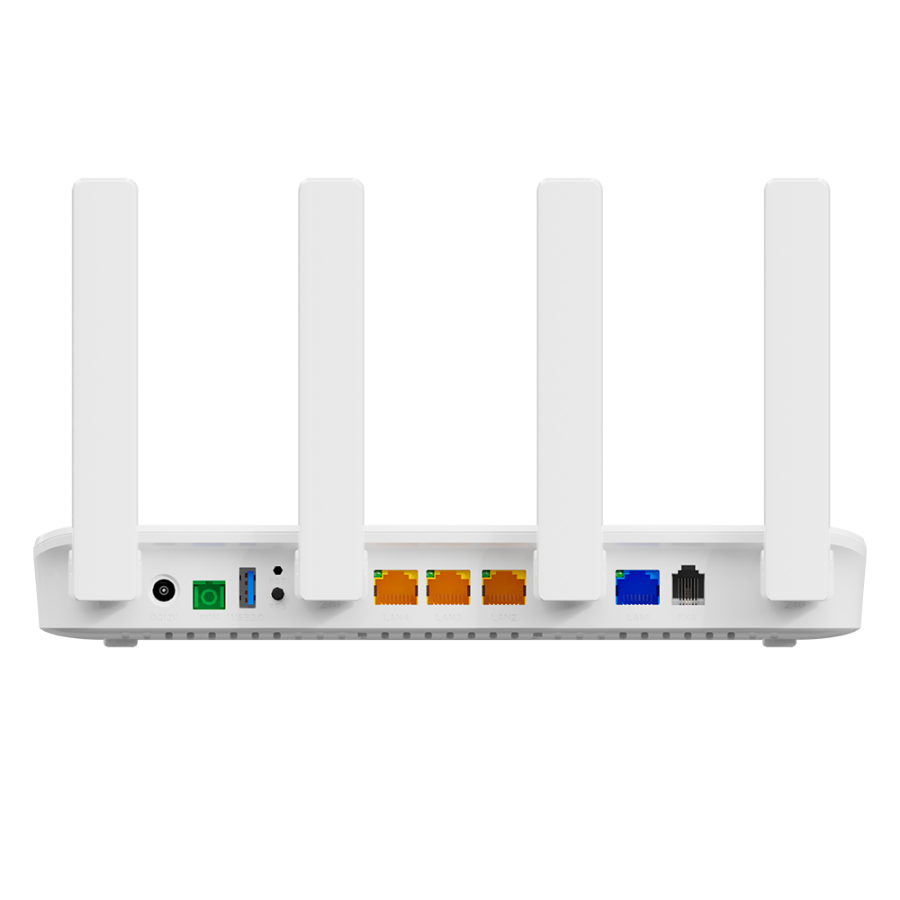

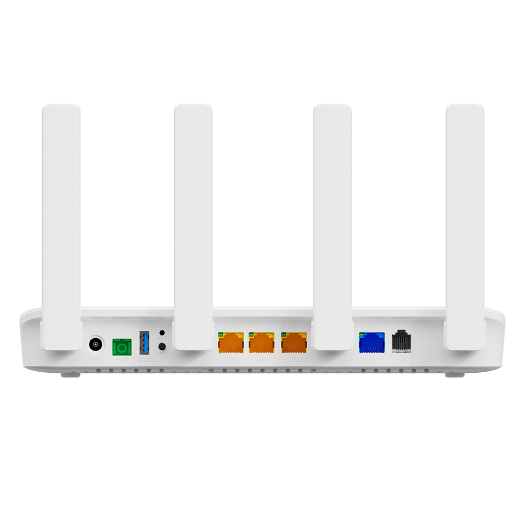

| Interface | 1x PON 1x LAN RJ45 2.5GE 3x LAN RJ45 GE 1x RJ11 ( FXS ) |
| PON | Port 10G PON: Class B+Single-mode SC, SC/UPC connectorOptical transmission power: 6 dBm (XGS-PON), 5 dBm (XG-PON), 4 dBm (10G EPON)Receiving sensitivity: -28 dBmOptical overload power: -8 dBmTransmiss |
| WiFi Antennas | Complies with IEEE802.11b/g/n/ac/axWi-Fi: 2,4 GHz, 5 GHz 2x2, speed up to 3 Gbps, multiple SSIDsTransmission power: 2,4 GHz: 18 dBm; 5 GHz: 17 dBmReceiving power: 2,4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VH |
| Funciones WiFi | 802.11b/g/n/ac integradoAutenticación: WAP-PSK (TKIP)/WAP2-PSK (AES)Múltiples SSIDSSID ocultosWiFi MeshAdmite hasta 64 conexiones de dispositivos |
| Protocolos de Gestión | OAM/OMCI/Telnet/Web/TR069Admite la gestión completa de las funciones de HGU mediante VSOL OLT |
| Funciones de capa 2 ( switching ) | Compatible con bridge 802.1D y 802.1ad, VLAN 802.1Q |
| Funciones de capa 3 ( routing ) | IPv4, IPv6 e IPv4/IPv6 dual stackDHCP/PPPOE/EstáticoRuta estática, servidor DHCPNAT/DMZ/DDNS/Servidor virtual |
| Voip | SIP e IMS SIPCódecs G.711a/G.711u/G.722/G.729Cancelación de eco, VAD/CNG, Retransmisión DTMFFAX T.30/T.38Identificación de llamada/Llamada en espera/Desvío de llamadas/Transferencia de llamadas/Retenc |
| Multicast | IGMP v1/v2/v3, espionaje IGMPProxy IGMPEspionaje MLD v1/v2Proxy MLD |
| QoS | Admite 4 colas de QoS ( Voip, IPTV, Internet ..)Compatible con SP, WRR, 802.1P y DSCP |
| Seguridad | Funciones básicas de firewall Filtrado de MAC basado en MAC o URLACLsCompatible con detección de bucles |
| Color | Blanco |
| Dimensiones | 244mm x 131mm x 36mm |
| Peso | 425g |
| Temp. Funcionamiento | -10o C ~ +55o C |
| Alimentación | DC 12V 2A (adaptador incluido) |

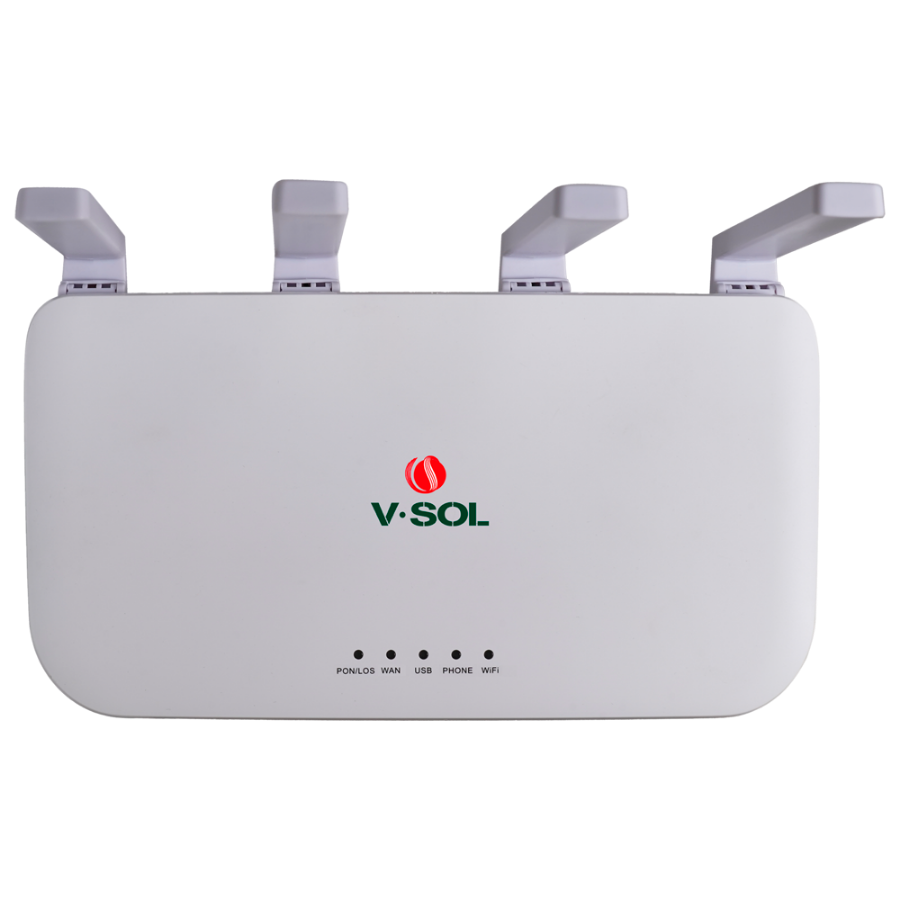

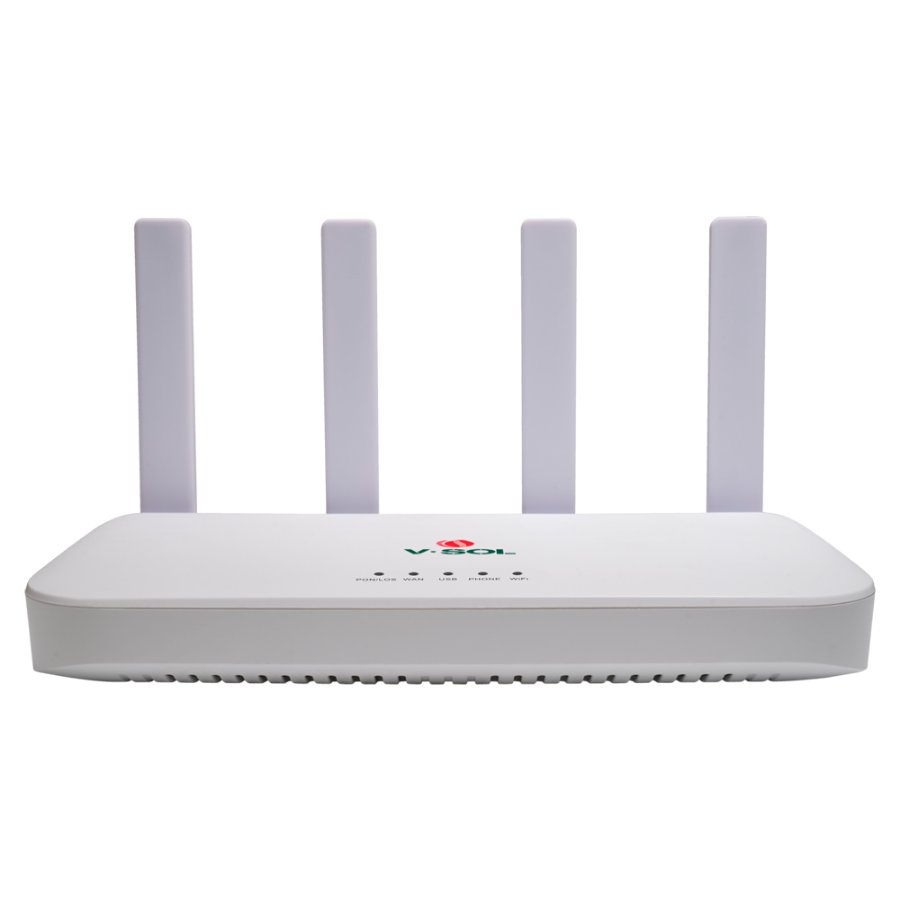

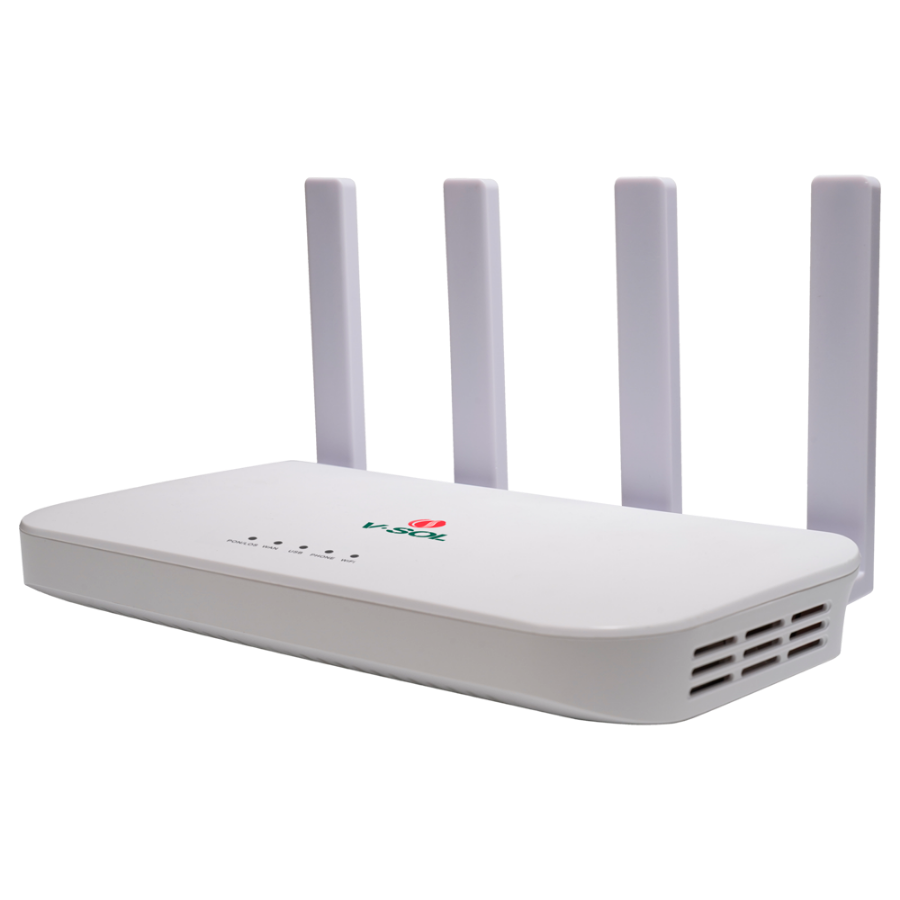

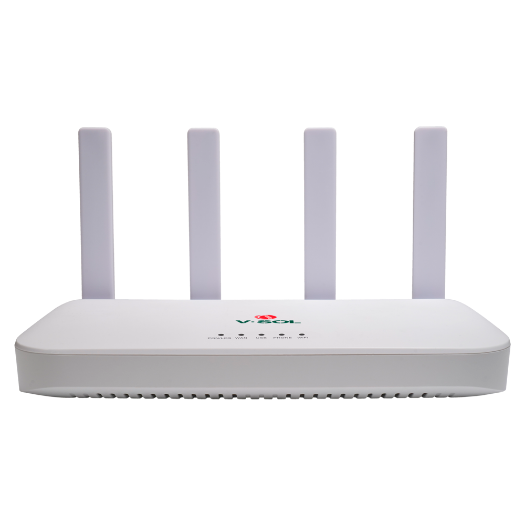

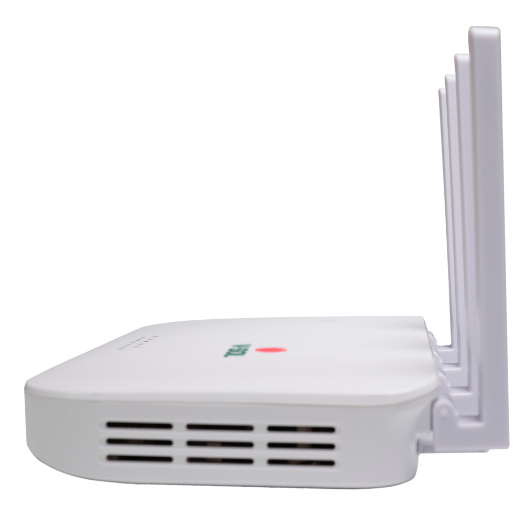

Equipped with the latest WiFi 6 (AX3000) technology and IEEE PON interface 802.3av (10G-EPON)/ITU-T G.987 G.9807.1 (XG-PON)/ITU-T IEEE802.11ax (XGS-PON) and interface 6), (WiFi 10G the V-SOL HG3110AX PON HGU [%VAR%] offers the triple play of services, allowing data, voice and video services via standard Ethernet, Wi-Fi, FXS and USB interfaces. This helps internet service providers to offer internet service at more than 2,5 Gbps, limited by GPON. The HG3110AX features integrated Ethernet LAN ports, one 2.5GE BASE-T port and three 1GE BASE-T ports that support ultra-fast connection of devices. In addition, it includes a powerful enhanced WLAN interface based on 2x2 MU-MIMO OFDMA 2,4 GHz and 5 GHz 2x2 MIMO Wi-Fi MU-MIMO antennas, compatible with 802.11a/b/g/n/ac/ax standards in the 2,4 GHz and 5 GHz wireless frequency bands for Internet applications such as video, email, web browsing, file uploading and downloading, and online gaming. In addition, it provides VoIP service through the POTS port (RJ11).
