| Brand | Hongdian |
| Device | Industrial 4G Router |
| SIM | 2 SIM card slot 4G / 3G 2FF (not included) |
| Dual SIM | Auto Failover in case of low signal / data limit / roaming / no network |
| Serial Ports | Transparent, Modbus RTUDefinition of ports: RX, TX, GND (RS-232) , A+, B-, GND (RS-485)Connector 6-pin 3.5 mm female socketTransmission rate RS-232 (300-115200bps), RS-485 (300-115200bps) |
| Wi-Fi | Wi-Fi 4 802.11b/g/n 2.4GHz |
| LTE Frequencies | 4G(LTE-FDD): B1/B3/B5/B7/B8/B204G(LTE-TDD): B38/B40/B413G: B1/B5/B82G: B3/B8 |

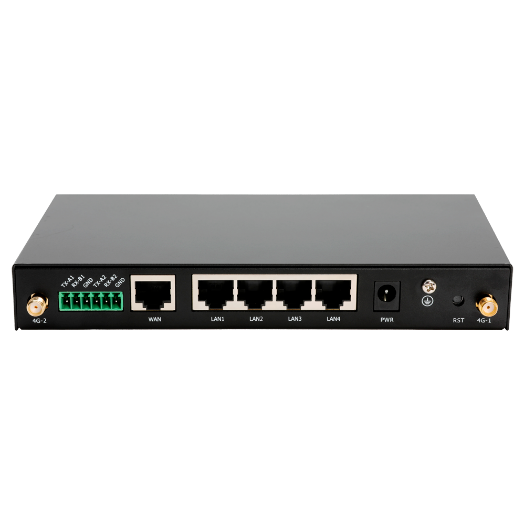

| Ethernet | 5 Ethernet ports RJ45 10/100/1000Mbps (1 WAN + 4 LAN) |
| Antenna connectors | WiFi and LTE (antennas included) |
| CPU | MIPS 24Kc 580 MHZ |
| RAM | 128MB DDR3 |
| Flash | 16MB |
| Network Protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP, ICMP, NAT, HTTP, HTTPs, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, APN, VPDN, VLAN, QoS, Static Routing, Policy routing, RIP, OSPF,BGP,Failover. |
| VPN Protocols | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard |
| Monitoring and Management | HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP |
| Security | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List, DDOS prevention, Anti port scanning |
| Power | DC connector 5~36V (Power supply 12V included) |
| Electricity consumption | Inactive: 200mA@12vDCData Link: 550mA@12vDC |
| Material | Metallic |
| Degree of protection | IP30 |
| Temp. operation | -30o C ~ +70o C |
| Operating Humidity | ? 95%(no condensing) |
| Installation | Wall or tabletop |
| Dimensions | 25 (Al) x 176 (W) × 105 (D) mm |
| Weight | 540 g |
| Region | Europe, Middle East, Africa, Korea, Thailand, India, Malaysia, India, Malaysia |
