| Video format | HDCVI / analogue CVBS / IP |
| Hybrid configuration | Up to 2 Channels from BNC and 2 IP Channels (1080p) |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | Bidirectional audio |
| Video/Audio compression | H.264 / G.711 |
| Display resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording resolution | 1920x1080(1080p), 1280x720(720p), 960x576(960H), 704x576(D1) |
| Main Stream coding | Channel 1~4: 720p/960H/D1 (1~25 FPS) |
| Extra Stream coding | Channel 1~4: CIF/QCIF (1~12 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | Does not have |
| Recording method | Manual, programmed, motion detection |
| Backup | USB / Network devices |
| Internal memory | 1 SATA 3.5" HDD up to 4TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 (Ethernet) |
| Remote access | Browser (ActiveX), Smartphone Application or PSS software |
| Power | DC 12 V / 1.5 A |
| Dimensions / weight | 40 (H) x 260 (W) x 220 (D) mm / 0.75 Kg |

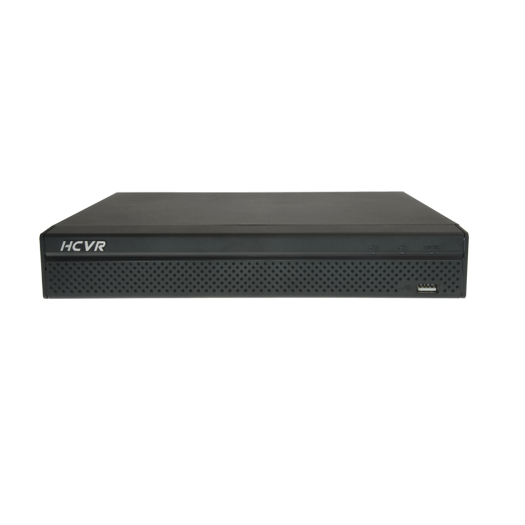

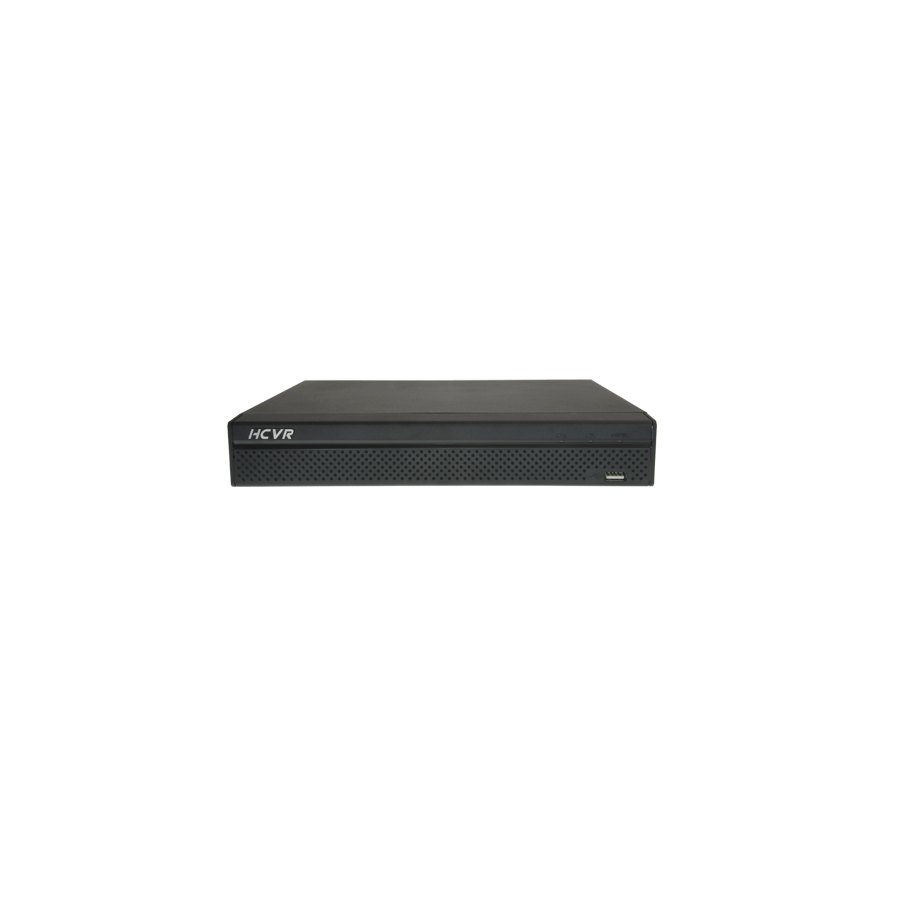

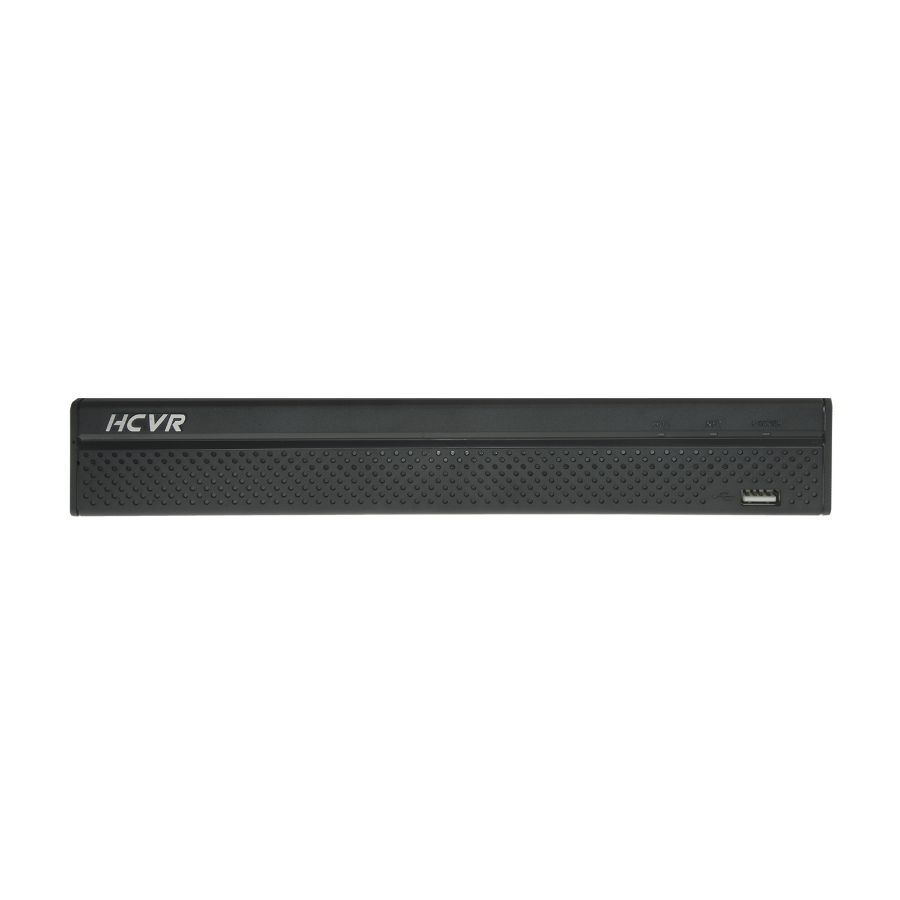

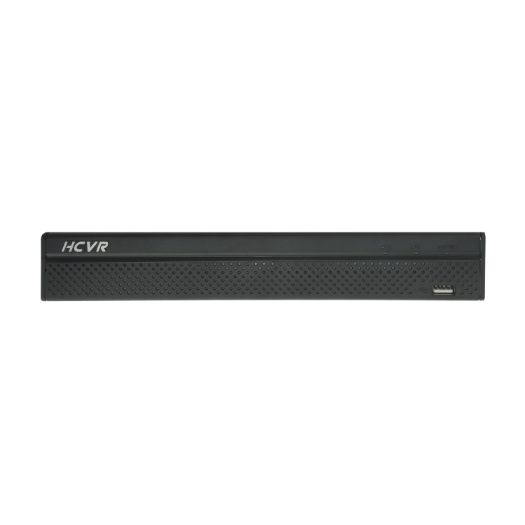

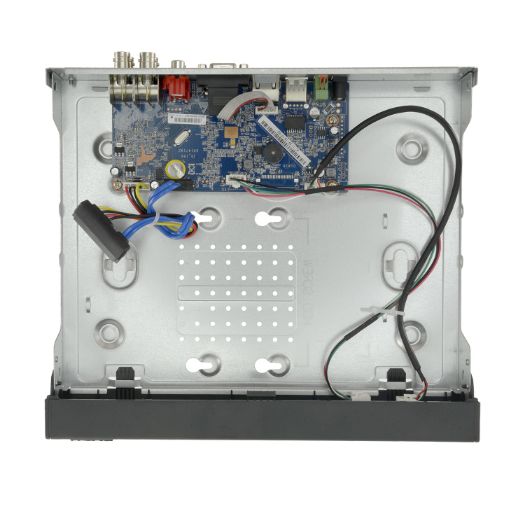

Branded Universal HDCVI standalone digital video and audio recorder.

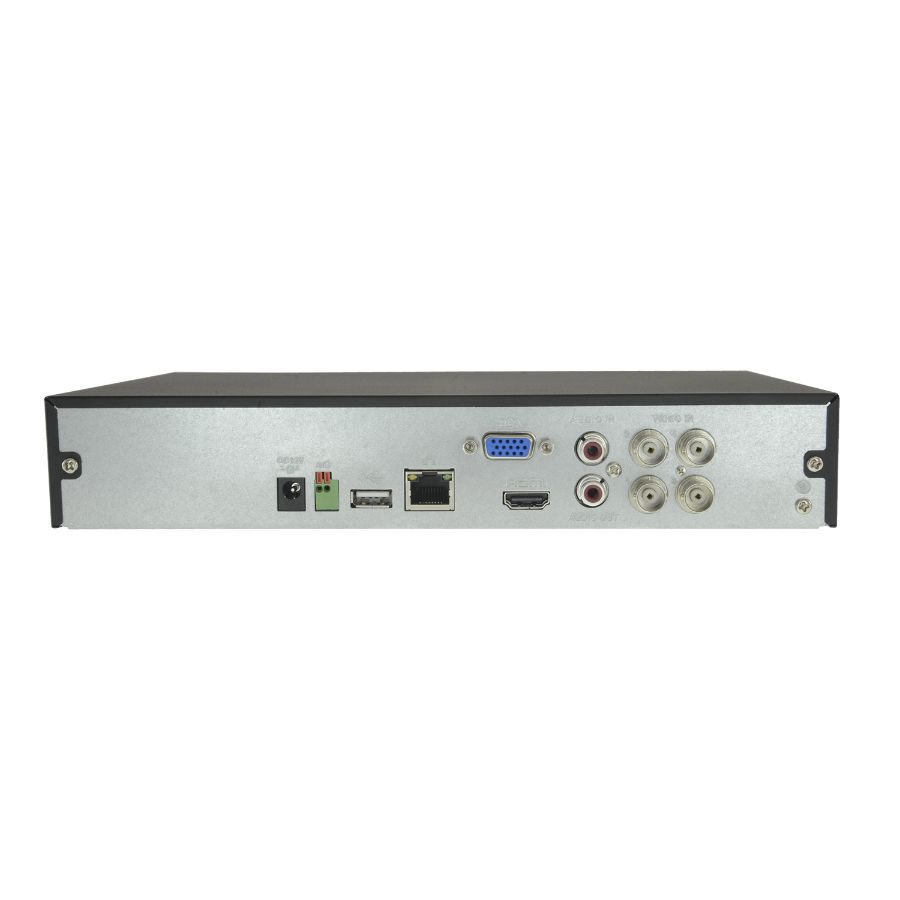

It has 4 video inputs by BNC connection, allowing HDCVI and analogue CVBS cameras interchangeably at the same channel, and 1 audio input by RCA connection. It has 1 RCA audio output and 2 video outputs: a VGA output and a Full HD HDMI output. Embedded Linux operating system, with pentaplex multitasking that allows: live viewing, recording, playback, backup and remote access simultaneously.
Compression of video H.264 and audio G.711. Video recording at 25 FPS per channel in resolution 720p. In addition, it allows you to add IP cameras to replace analogue channels, with a maximum resolution of 1080p (Max Bitrate. 10 Mbps). Various recording methods: Manual, scheduled, by motion detection. It supports storage at 1 SATA internal drive of up to 4 TB. No alarms. Privacy mask and water marking (to check if the video has been altered). PTZ cameras control via port RS485.
Easy to use thanks to the intuitive GUI, supplied with USB mouse. External Backup via USB devices (memory, hard drive or recorder) and via Ethernet. With RJ45 network connection which permits remote access via Internet Browser(ActiveX), PSS software or via Smartphone App. Supports Dual Stream, which gives fast and fluent access to the Internet. Supports DDNS, which will allow easy remote access even with dynamic IP.
