| Brand | GJD |
| Technology | PIR |
| PIR lens | 28 for each PIR |
| Detection range | Adjustable: 10, 20 y 30 m / 10~70o |

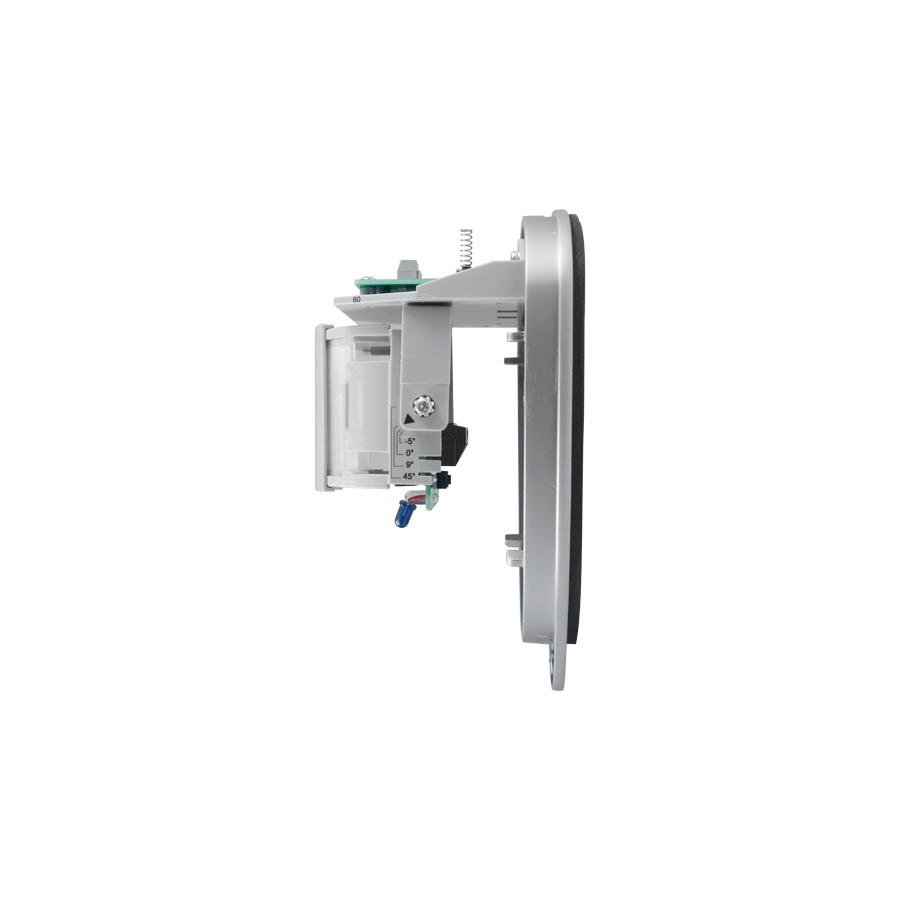

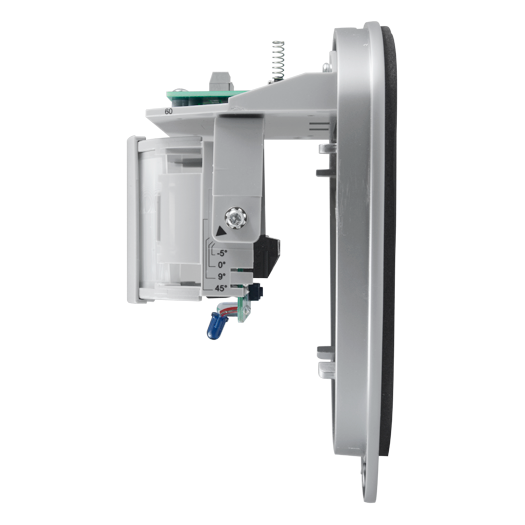

| Installation | Adjustable inclination: 180o H / 90o V |
| Installation height | Recommended: 3 m / Maximum: 6 m |
| Pet immunity | Available |
| Masking | Not available |
| Tamper-resistant opening | Available |
| LEDs indication | Alarm |
| DIP Switch configuration | LEDs, detection range m(10-20-30 ) and pulse (1 counter or 2) |

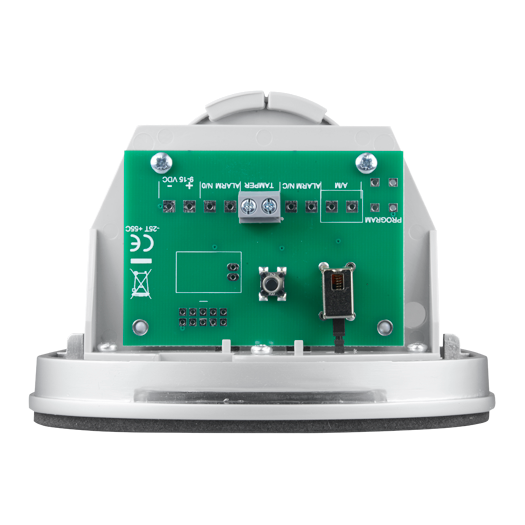

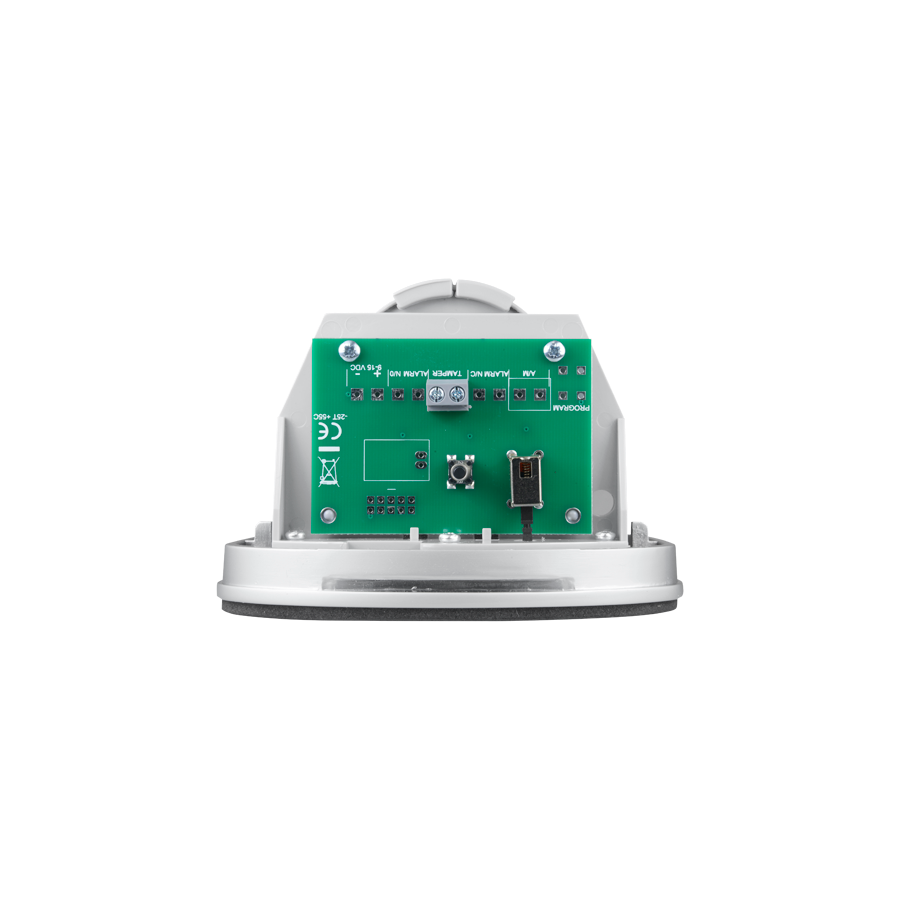

| Wired outputs | NC/NO alarm and Tamper |
| Power | 9 at 15 VDC |
| Average consumption | 8 mA at 12 VDC |
| Temp. operation | -20 oC ~ 55 oC |
| Degree of protection | IP65 |
| Covered material | High-quality chrome-plated metal |
| Dimensions | 145 (H) x 120 (W) x 115 (D) mm |
| Weight | 740 g |
