| Certification | LPCB / CE-CPREN54-12:2015BS 5839 Part1:2017 |
| Coverage distance | 1 Mode: 8 - 20 m (Need 1 reflective panel)2 Mode: 20 - 40 m (Need 1 reflective panel)3 Mode: 40 - 70 m (Need 4 reflective panels)4 Mode: 70 - 100 m (Need 4 reflective panels) |
| Sensitivity | Level 1: 2.6dB (High Sensitivity)Level 2: 3.8dB (Average sensitivity)Level 3: 5.8dB (Low Sensitivity) |
| Configuration | Via DIP Switch |
| Alignment Guide | Laser pointer |
| Indications | Via Display for configuration and LED for faults (Red: fire / Yellow: failure / Green: Aligned) |
| Reset time | Less than 2 seconds without power |
| Relay | 2 relays (fire and fault) NO/NC, 30VDC/2A max. |
| Power | 20-28 VDC |
| Consumption | Standby: 23mAAlarm: 33mA |
| Dimensions | L:190.87 x W:126.87 x H:91.96 mm |
| Weight | 440g |
| Material | ABS plastic |
| Degree of protection | IP30 |
| Temperature range | -10~55oC |
| Humidity | 0~95% relative humidity, non-condensing |

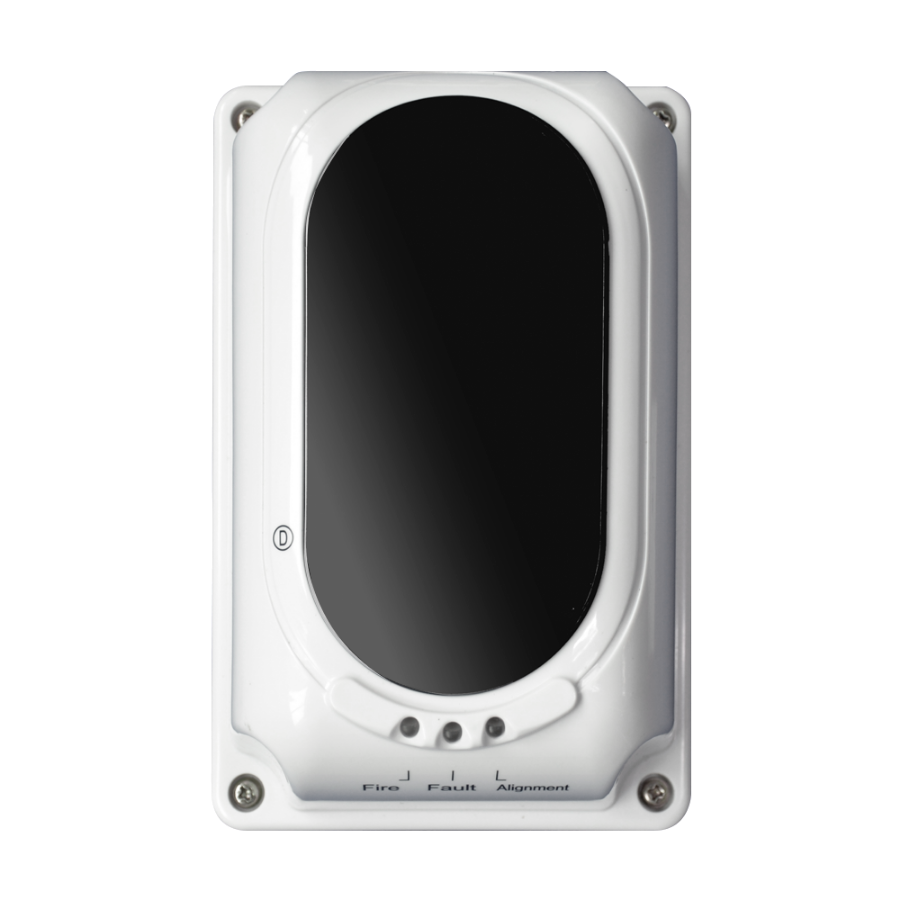

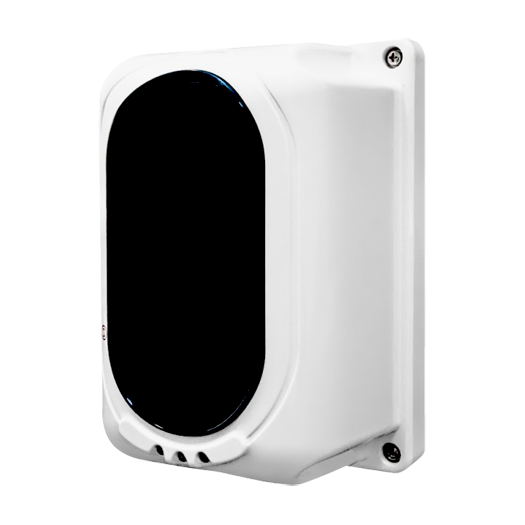

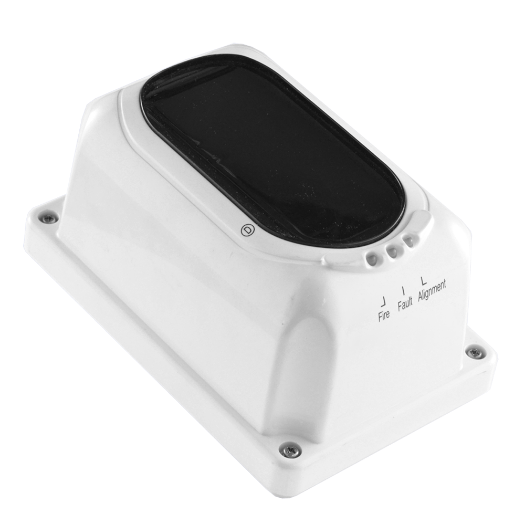

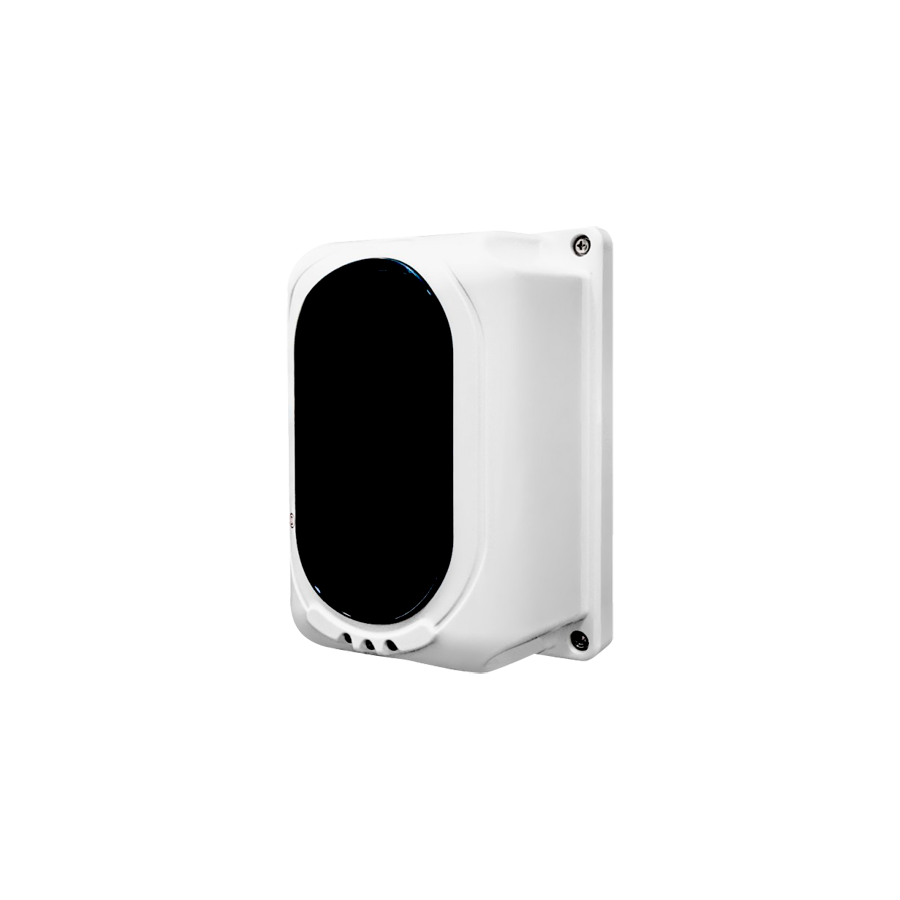

The FIREBEAM IR fire barrier is a conventional IR fire detection barrier. It works on the principle of reflected infrared beam obscuration, which triggers the alarm when the beam is obscured by smoke.

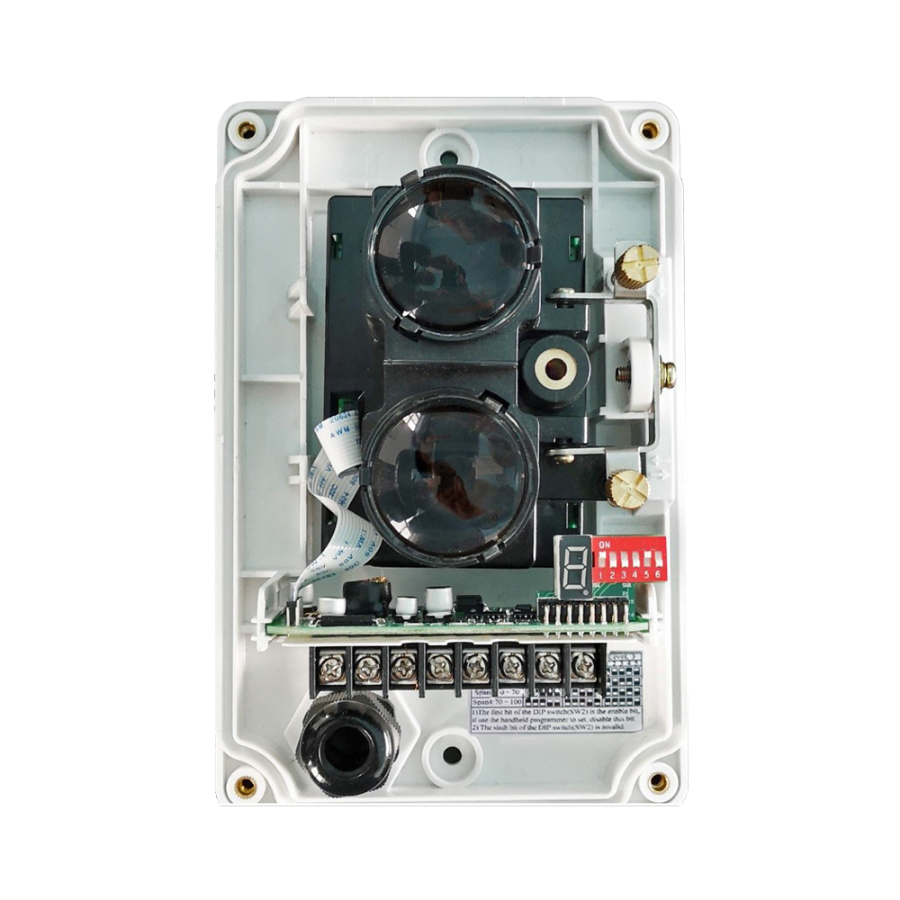

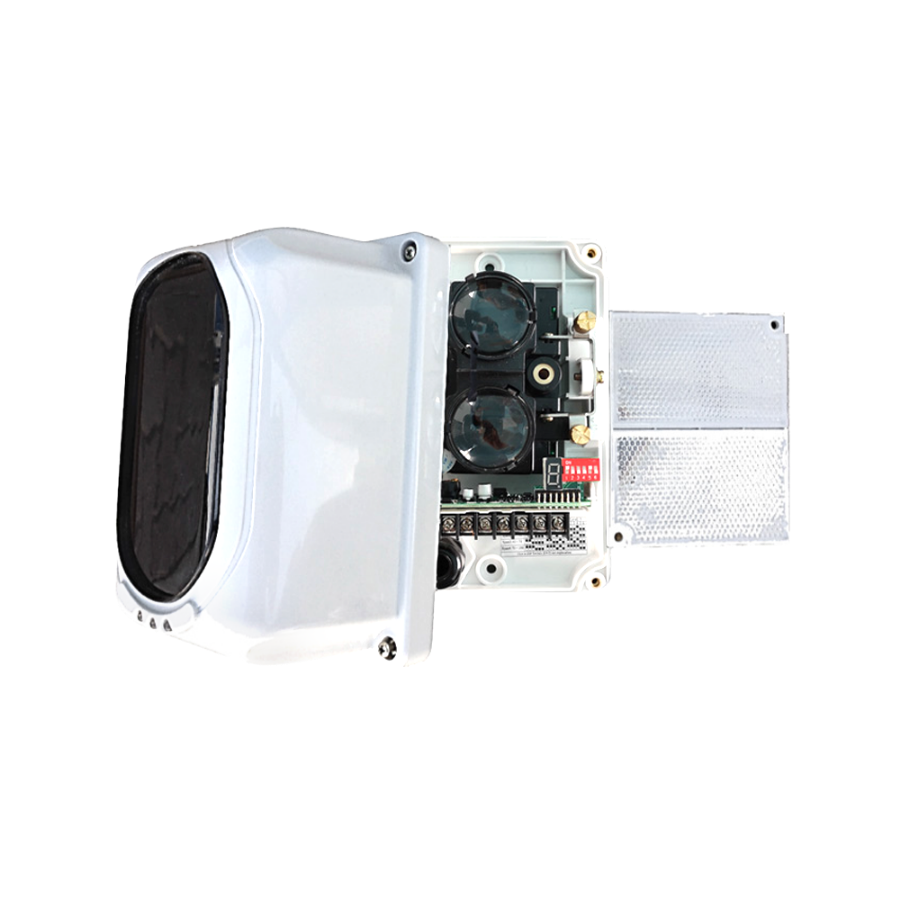

In addition, it has an integrated laser pointer and digital display, which facilitates precise alignment of the mirror and detector, and allows adjustment of the light intensity between the two, ensuring easier alignment. The device offers four adjustable operating ranges (8-20m, 20-40m, 40-70m and 70-100m) and three sensitivity levels, (2.6dB, 3.8dB and 5.8dB).
FIREBEAM is ideal for use in high ceilings and large spaces such as warehouses, shopping malls, museums and factories, as well as in areas with smoke or corrosive gases.
