| Brand | Dyness |
| Capacity | 14336Wh |
| Nominal capacity | 280 Ah |
| Battery type | LiFePO4 51.2V / 280Ah |
| Nominal voltage | 51.2 V |
| Recommended charging / discharging current | 140 A |
| Load current at full power | 150 A |
| Discharge current at full power | 200 A |
| Peak power charge/discharge current | 210 A |
| Life Cycle | Unlimited (10 years) |
| Nominal power | 7168 W |
| Maximum power | 10240 W |
| Maximum peak power | 10752 W (15 s) |
| Depth of discharge (DOD) | 95% |
| Recommended loading and unloading | 0.5C |
| Temp. Operation (load) | 0 - 55 ? |
| Temp. Operation (download) | -20 - 55 ? |
| Dimensions | 435(W) x 233(D) x 857(H) mm |
| Weight | 114 Kg |
| Protection | IP20 |
| Communication | CAN / RS485 |
| Expansion | Up to 50 units in parallel |
| Compatibility | SMA / Victron / Ingeteam / Delios / Goodwe / Solis / Deye / SAJ / Voltronic / Sungrow / TBB ... |

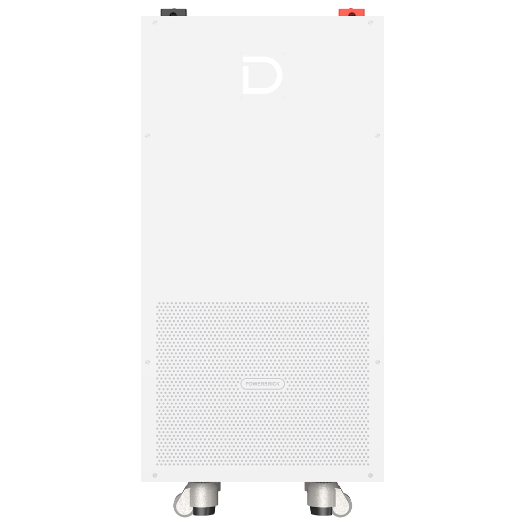

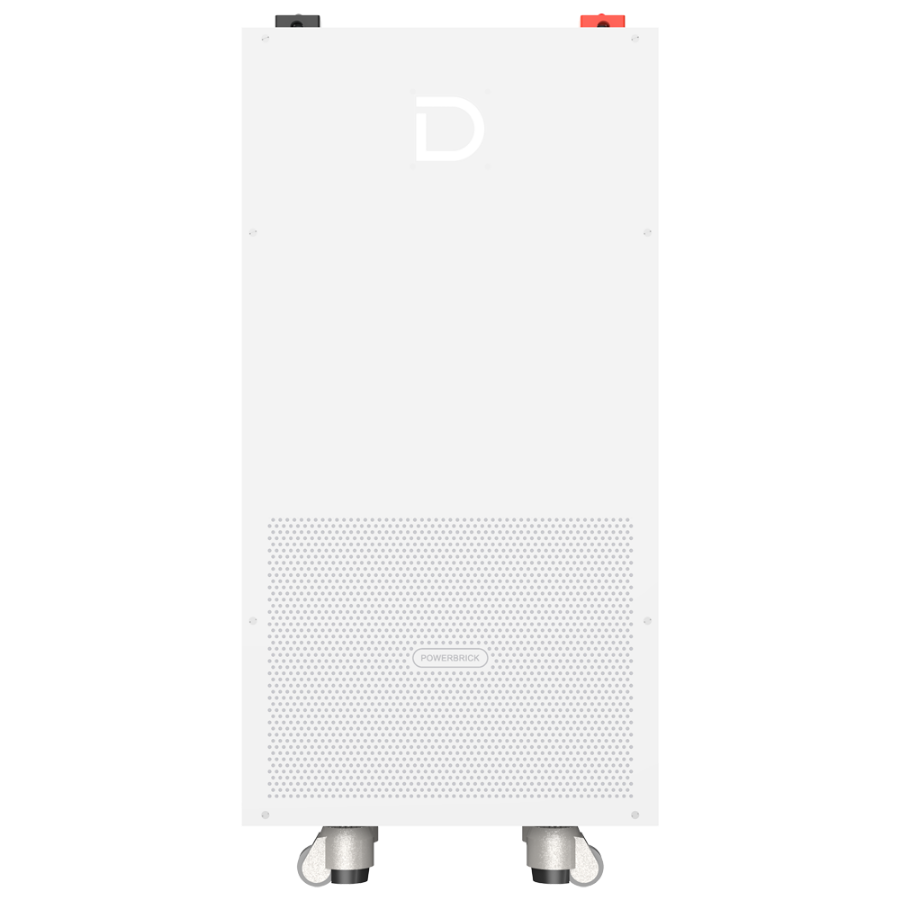

The Dyness DY-POWERBRICK-14336 battery is the best energy storage solution for large residential environments, both grid-tied and off-grid. Its sleek exterior design and advanced cell technology extend battery life to 10 years. With a unit capacity of 14.3 KWh, it can be adapted, in parallel, for applications with higher storage requirements.

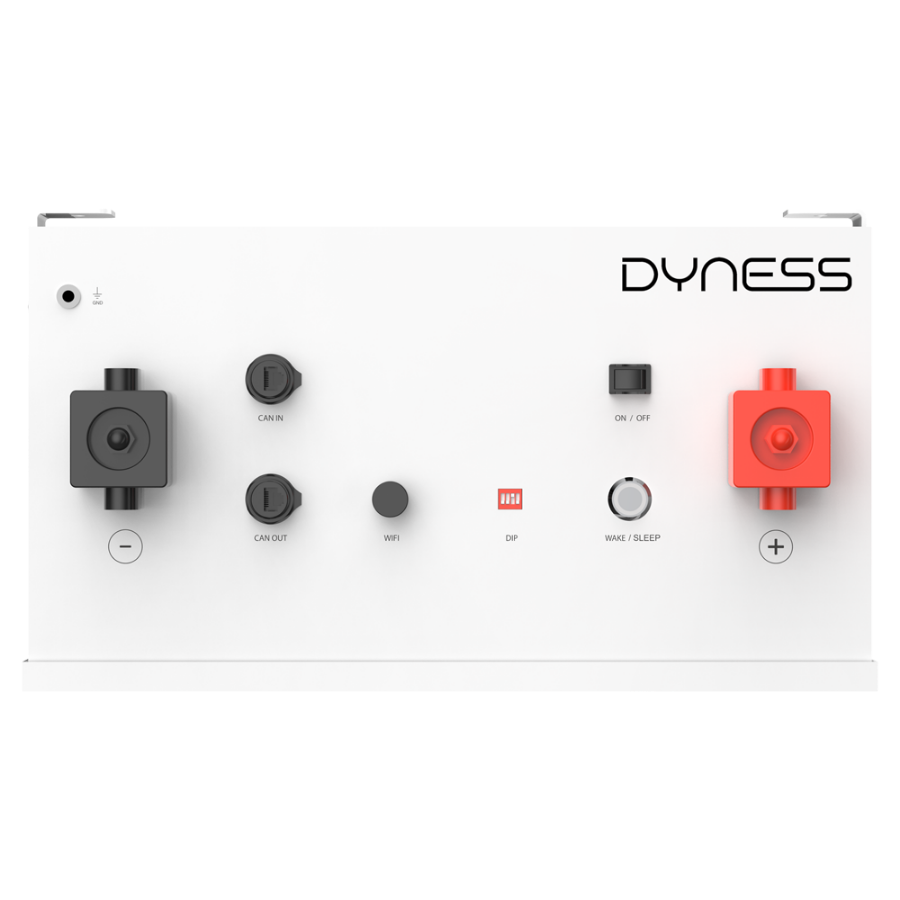

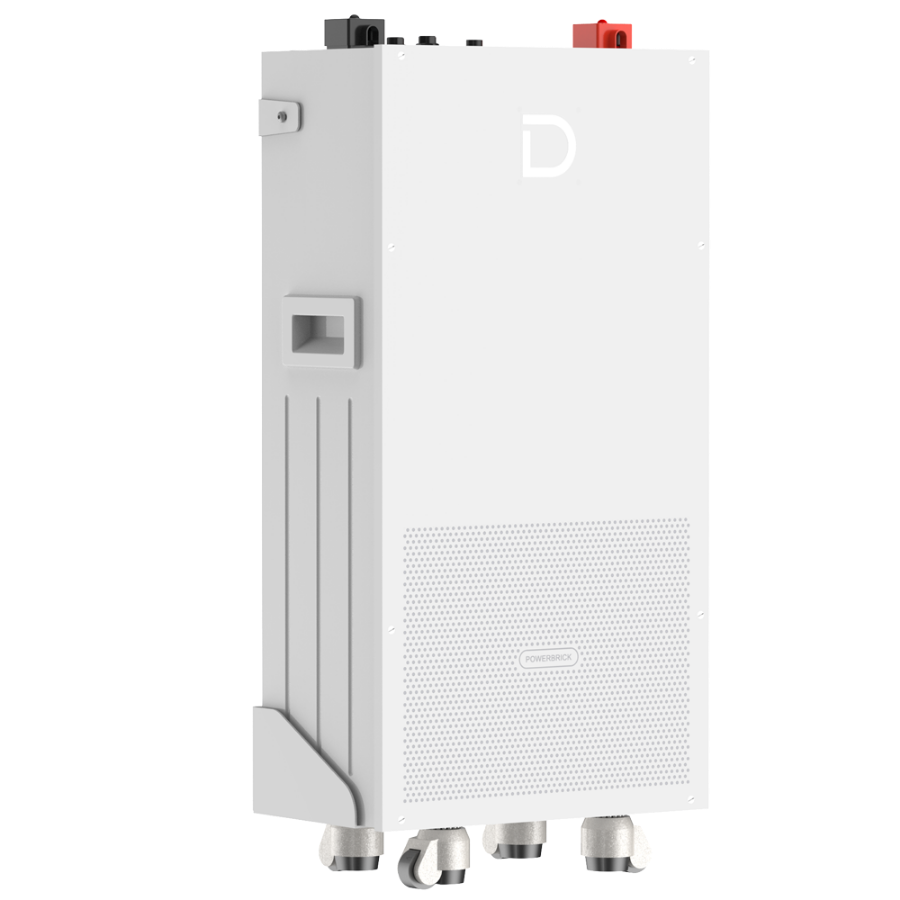

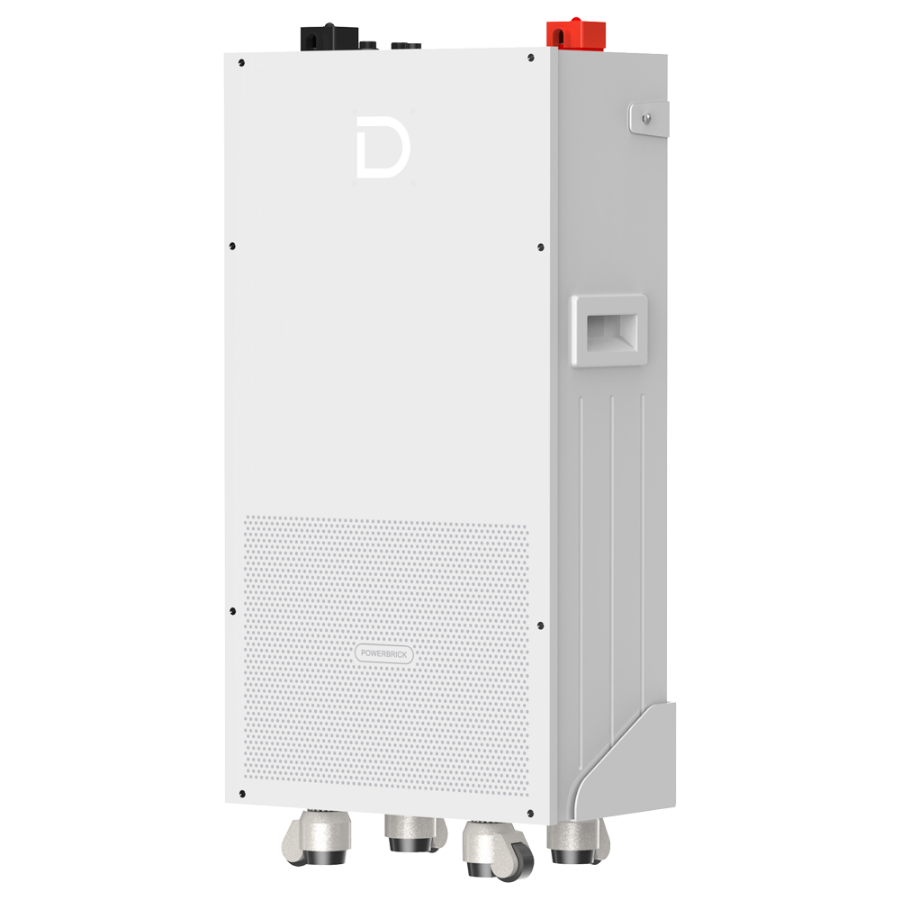

It is a battery highly recommended for installers, since its design is simple and has the possibility of communication through RS232, CAN and WiFi adapters to be able to monitor both locally and remotely. Its versatility is also remarkable, as it is compatible with virtually all solar inverters on the market, including the most popular brands. It also has wheels, so its maneuverability at the time of installation facilitates the work.
