| Brand | Duevi |
| Model | Moskito K |
| Type of integration | Universal |
| Technology | Double side PIR (both sides) and double front PIR |
| PIR lens | Adaptive lenses in 3 positions |

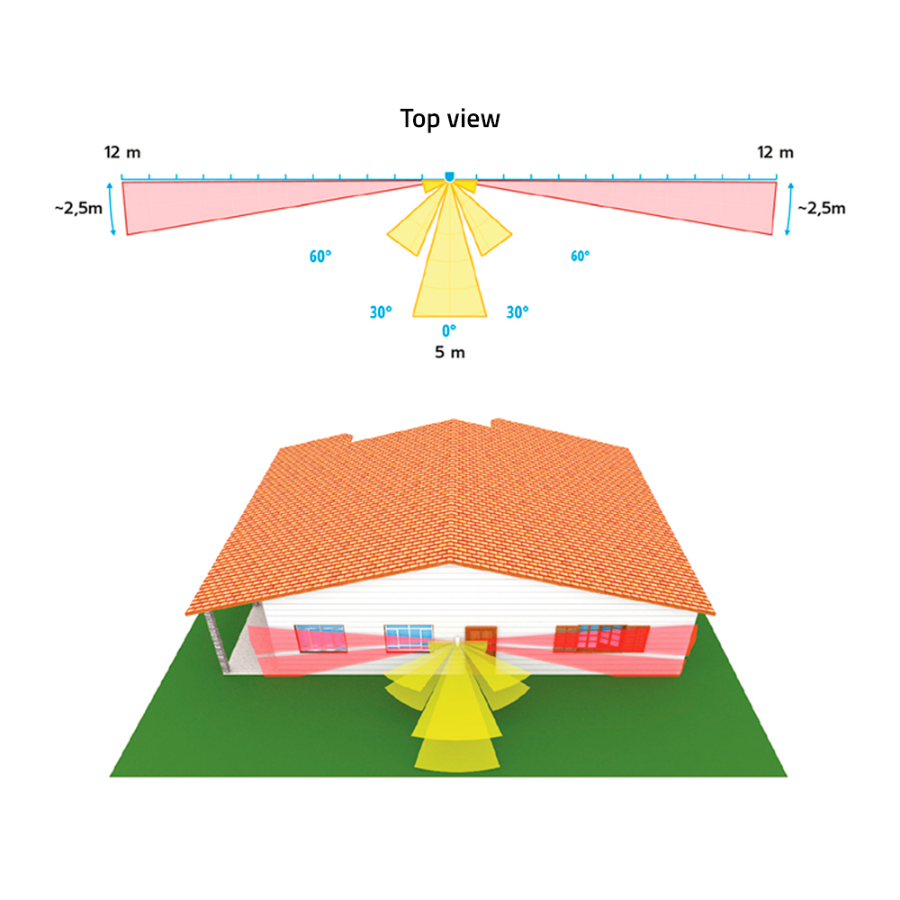

| Lateral detection field | Configurable on each side: 3 m to 12 m (in 3 levels) / 10o |
| Front detection field | Configurable: 2 m to 5 m (in 3 levels) / 180o |
| Installation height | Recommended 2.2 m (from 1 to 1.4 meters) |
| Masking | Available: from 0oC, always on (through App) or disabled |
| Sensitivity | Adjustable on each side and front (potentiometer and jumper) |
| Tamper-resistant opening | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LEDs indication | Alarm (blue) and Walk test (6 red LEDs: one for each PIR / blue: alarm confirmation) |
| Sound indication | Integrated buzzer for easy installation: alarm, sabotage, antimasking |
| DIP Switch configuration | 1 - Antimasking (On/Off)2- Front pre-alarm (On/Off)3- Front walk-test (On/Off)4- Walk-test right (On/Off)5- Walk-test left (On/Off)6- Alarm LED (On/Off) 7- Programming by App (On/Off)8 y 9 - Side conf |
| Additional configuration in App | Antimasking (from 0oC, always on or disabled) / Independent sensitivity adjustment per side / Sleep time (On/Off/Up to 60 s) |
| Configuration by App | DV-BTLINK module required and download View Sensor App (Android) |
| Wired outputs | Alarm and Fault (tamper and antimasking) |
| Power | 2 lithium batteries CR123A 3V (included) |
| Consumption | Minimal consumption (Rest: 26 uA / Maximum: 6 mA) |
| Temp. operation | -40 oC ~ +70 oC |
| Degree of protection | IP54, Antivandalic IK10 |
| Dimensions | 190 (H) x 85 (W) x 113 (D) mm (transmitter spacing) |
