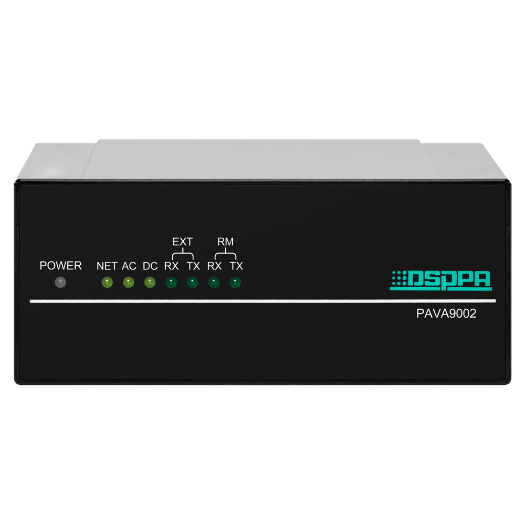

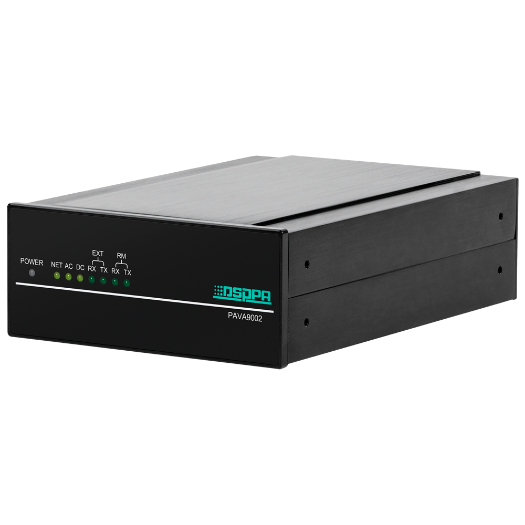

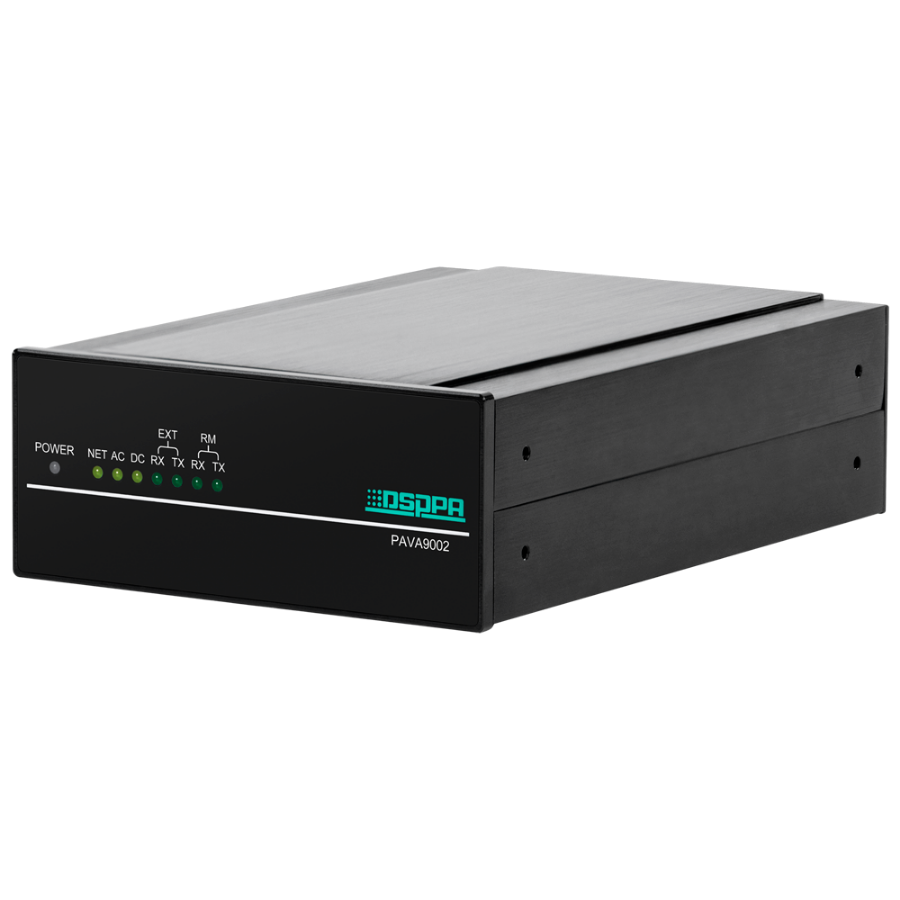

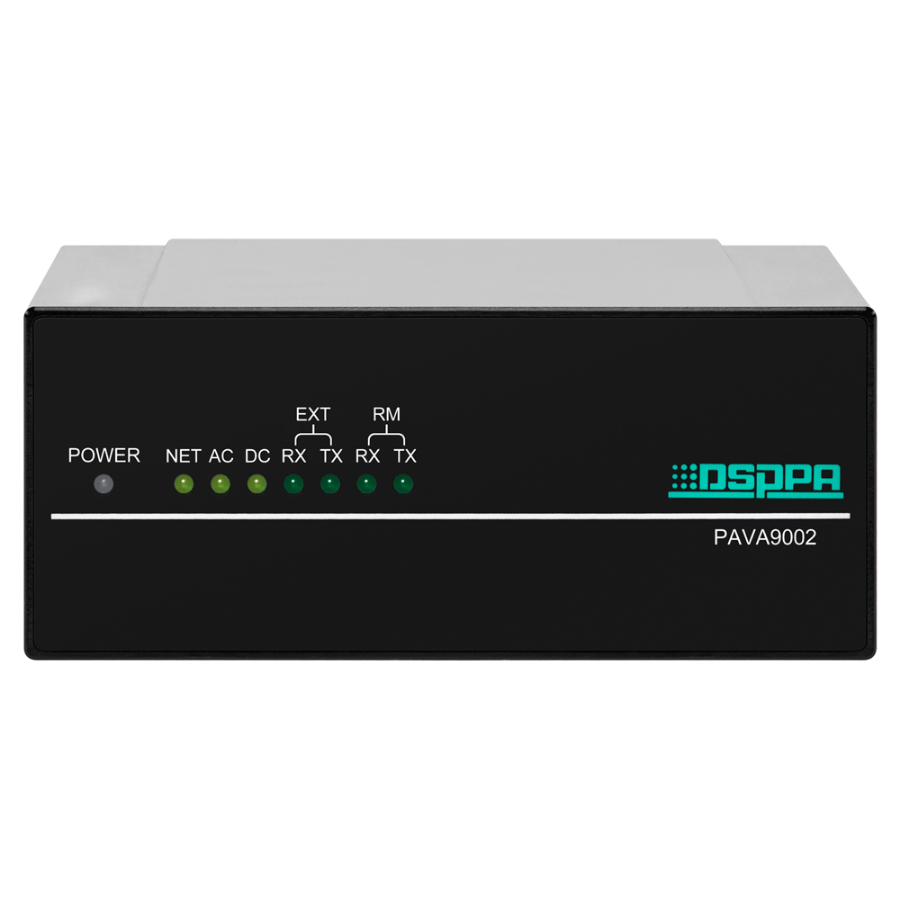

| Model | PAVA9002 |
| Connection with microphones (TX RM1-2)) | - Sensitivity: ±3000mV (±300mV)- Power supply: DC48V (±5V)- LED indicator - ±3000mV (±300mV) |
| Amplifier Expansion (RX EXT1-2)) | - Sensitivity: ±1500mV (±150mV)- LED indicator |
| Host | Reception (RX RM1-2)): - Frequency response: 100Hz~12kHz (±3dB)- LED indicator Shipment (TX EXT1-2)):- Frequency response: 50Hz~16kHz (±3dB)- LED indicator - ±1500mV (±150mV) |
| Distortion | <1% |
| SNR (Signal to Noise Ratio) | ?76dB |

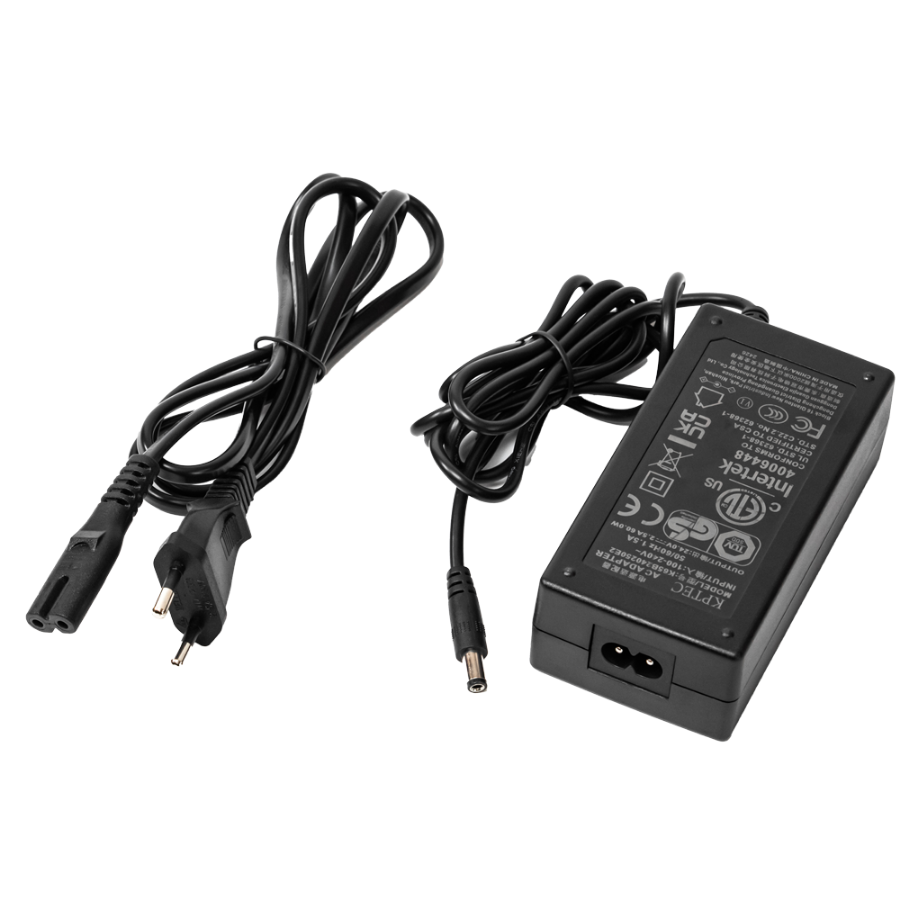

| Alimentación | AC110V-240V 50/60HzTransformador DC24V/2.5A (±3V)Fuente de alimentación de reserva: DC24V, 2.5A |
| Rango de tensión de funcionamiento | DC21V-28V |

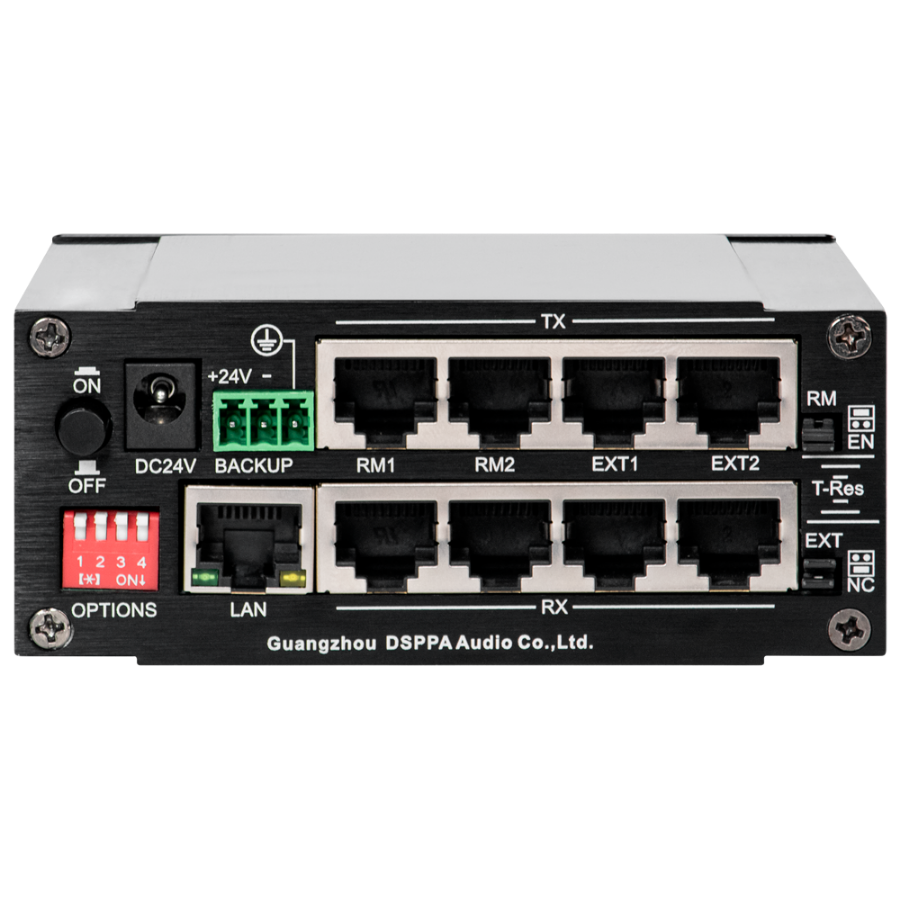

| Puertos | - 1 x Alimentación- 1 x Alimentación de reserva- 2 x RJ45 (TX RM1-2)- 2 x RJ45 (TX EXT1-2)- 1 x RJ45 (LAN)- 2 x RJ45 (RX RM1-2) - 2 x RJ45 (RX EXT1-2) |
| Condiciones de funcionamiento | - Temperatura: -20? ~ +50?- Humedad: 20% ~ 80% (sin condensación) |
| Dimensiones | 165mm (An) x 115mm (Al) x 55mm (Pr) |
| Peso | 0.65kg |
Network control terminals are essential devices in public address and voice evacuation systems. They can manage emergency messages, announcements and background music through a network, connecting and coordinating different equipment from a central point. They are designed under standards such as EN54-16, which ensures their reliability in critical situations.
This equipment is used in places such as airports, hospitals or shopping malls, where clear and fast communication is key. They facilitate the sending of messages to specific zones, remote control of the system and integration with other security solutions, offering an efficient response to emergencies.
