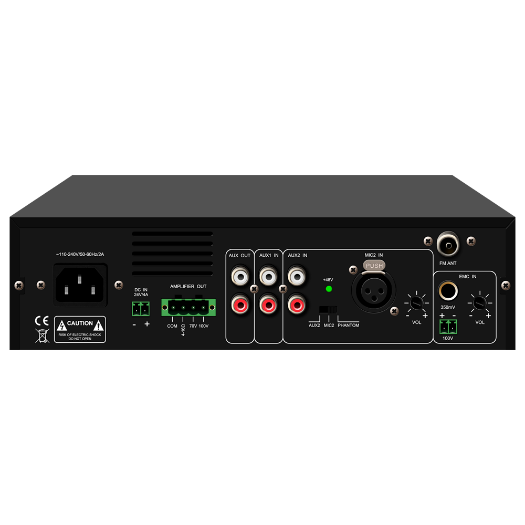

| Model | MP60UB |
| Energy consumption | 10W |
| Power supply | 110-240V AC @ 50/60Hz |

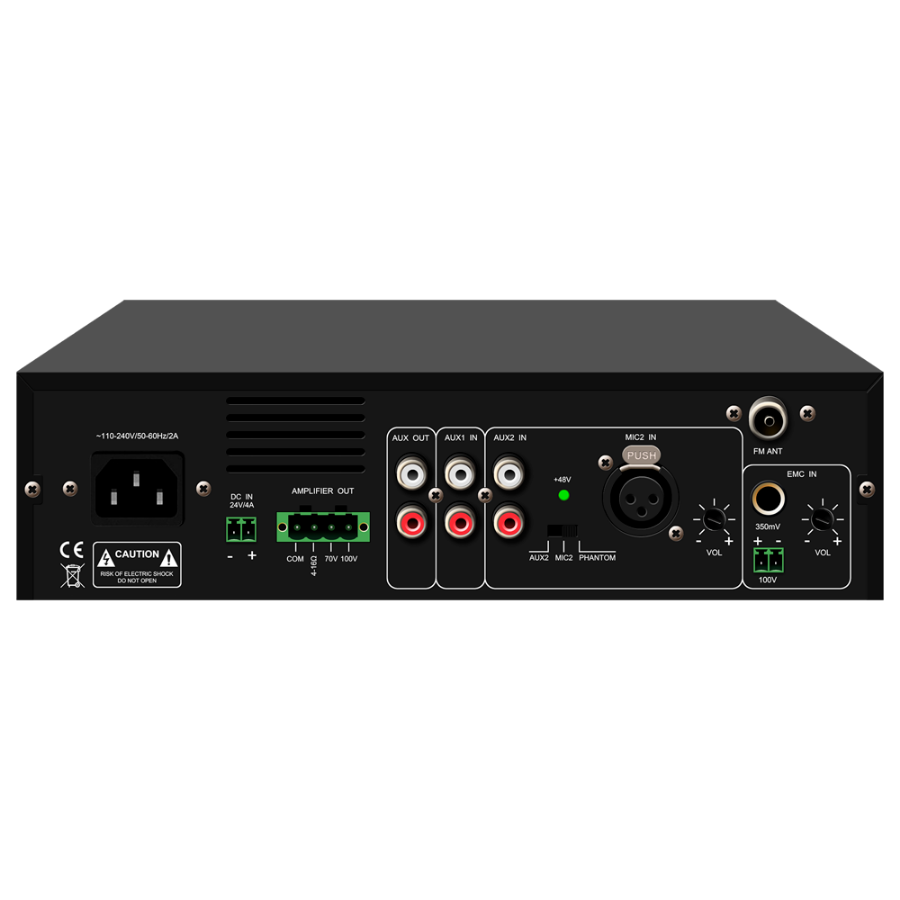

| Inputs | 2 x MIC (1 x 6.3mm Jack, 1 x XLR phantom)2 x LINE2 x Emergency signal (EMC) |
| Priority function | EMC / MIC1 > AUX1 / AUX2 / MIC2 |
| Input signal sensitivity | - MIC 1 and MIC 2: 5.5mV±1mV- AUX 1 and AUX 2: 350mV±10%- EMC: 350mV ± 10% |
| Frequency response | - MIC: 200Hz~10kHz (±3dB)- AUX: 100Hz~15kHz (±3dB) |
| Volume control | - Master's Degree- Individual for MIC and LINE- Treble and bass |
| Outputs | 1 x LINE1 x Emergency signal output (EMC) |
| Bluetooth | Yes |
| FM Radio | Yes |
| USB player | Yes |
| Output noise level | <5mV (4?) |
| Nivel de distorsión armónica total (THD) | <1% 1KHZ |
| Ajuste de agudos | 10dB (±2) |
| Ajuste de bajos | 10dB (±2) |
| Potencia nominal de salida | 60W |
| Interfaz de salida | 70V, 100V (salida de tensión constante)4-16? |
| Dimensiones | 198 × 247 x 66 mm (Pr x An x Al)1.5U |
| Peso | 2.6 kg |

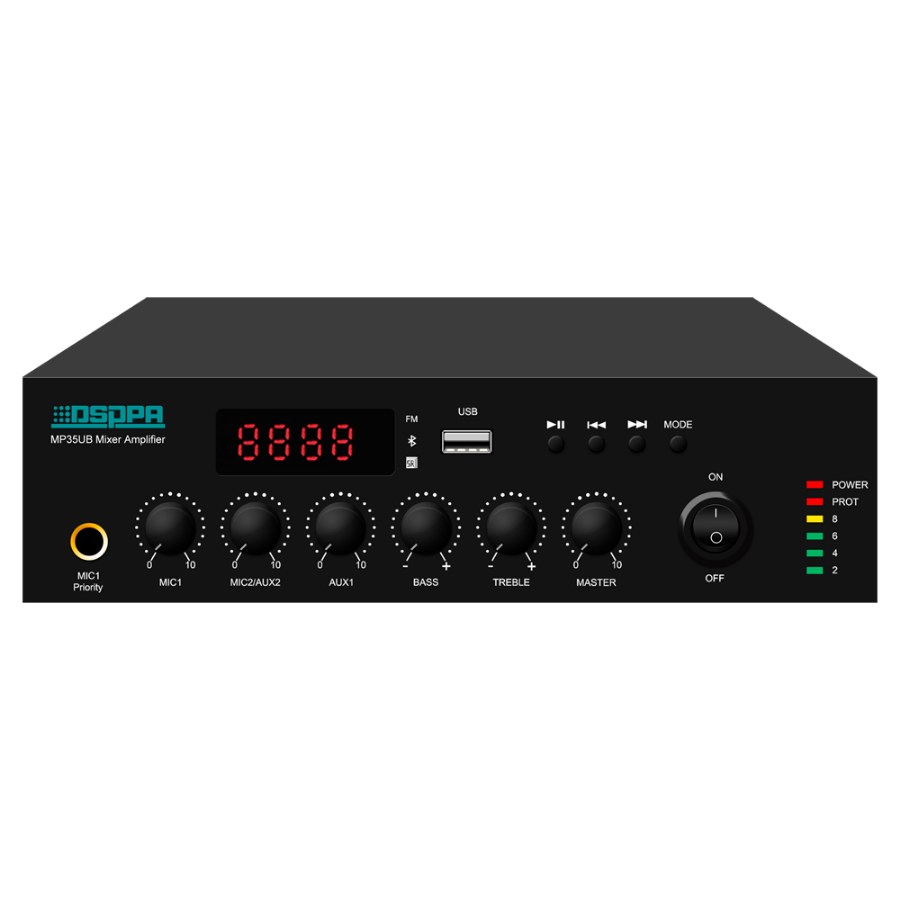

A mixer amplifier is a compact device that combines the functions of an audio mixer and an amplifier. Allows multiple sound sources to be connected and their volume levels individually adjusted before mixing them into a single output signal. Its compact design makes it ideal for small space applications or simple installations where a complex audio system is not required.
This type of equipment is commonly used in meeting rooms, small churches, classrooms, stores or public address systems, where several audio signals need to be amplified at the same time.
