| Model | MAG505C |
| Functions | - Volume adjustment- Equalizer- Source selection- Zone selection- Mute / un-mute- Programming |
| Installation | Wall |
| Power | 12V ~ 24V DC |

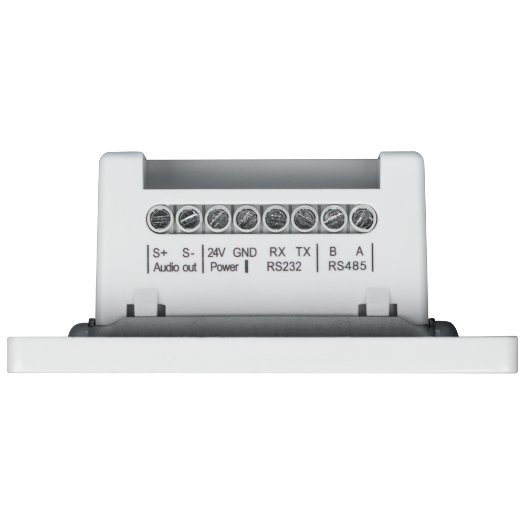

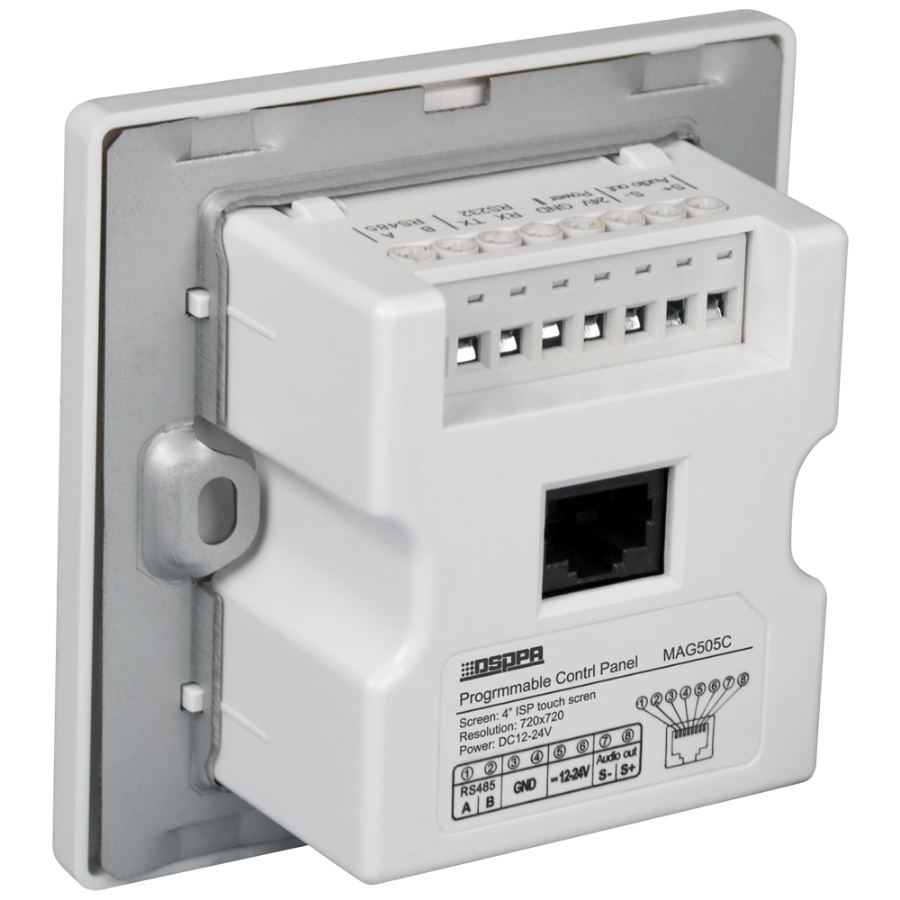

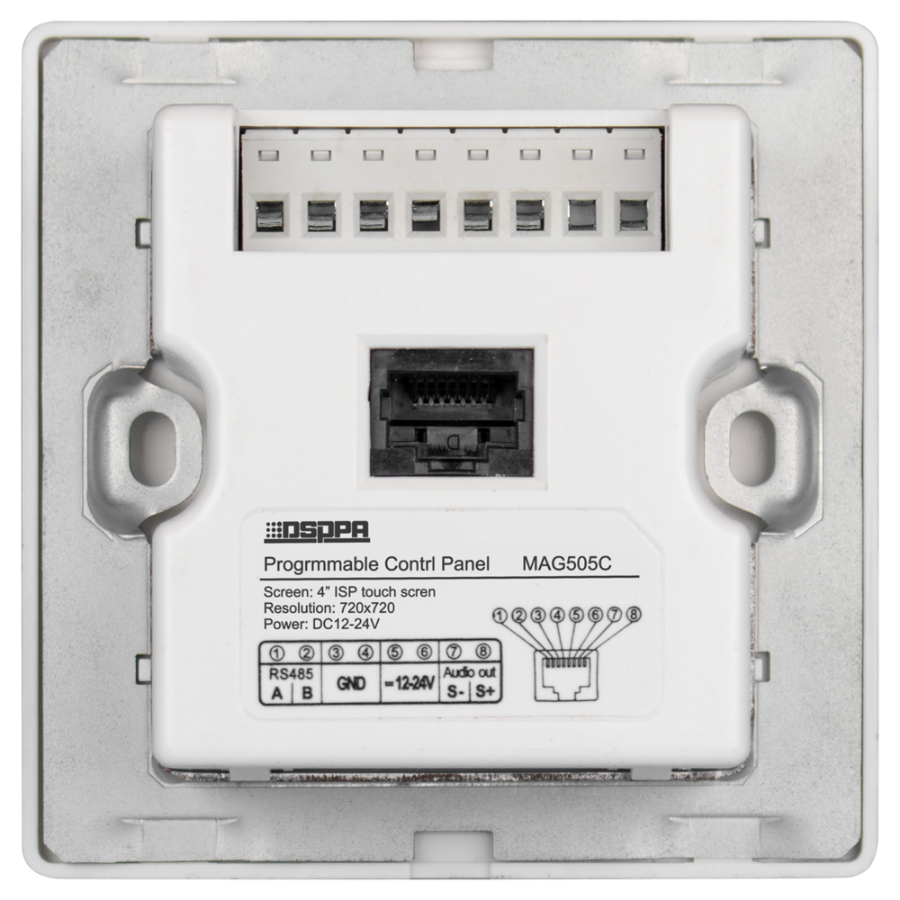

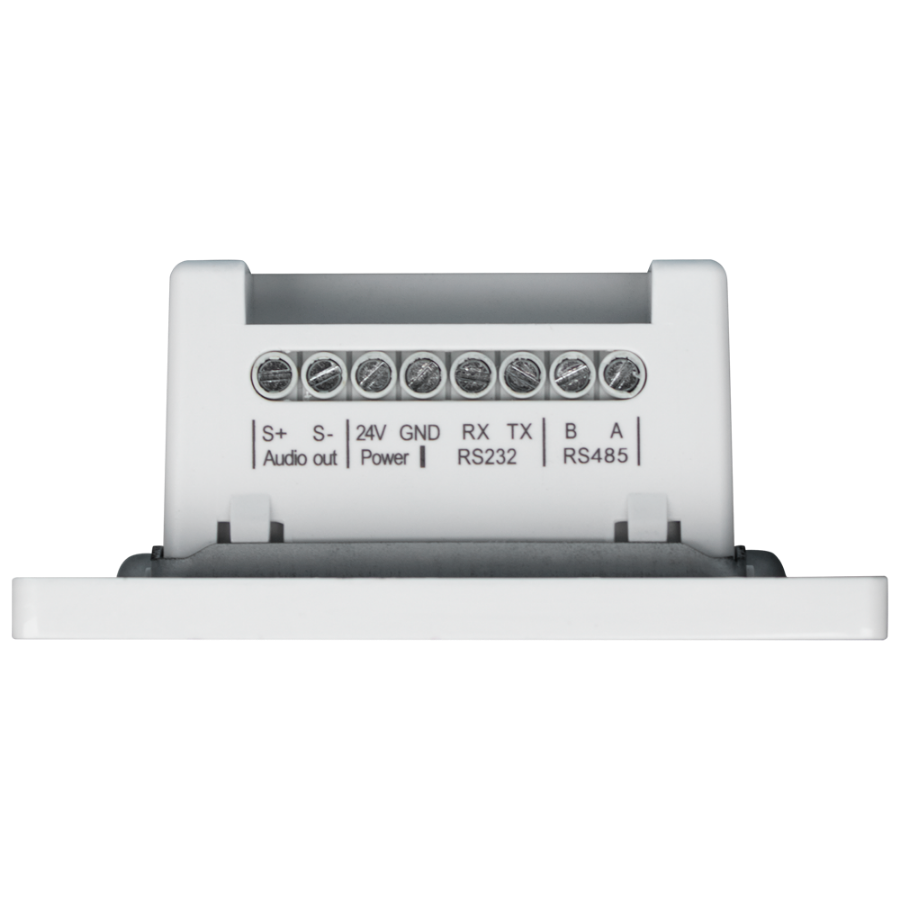

| Ports | 1 x RJ45 (Control RS485-A, control RS485-B, GND, DC 12~24V, audio OUT)8 x Euroblock (Audio OUT, power supply, control RS232, control RS485)1 x MicroSD Slot |

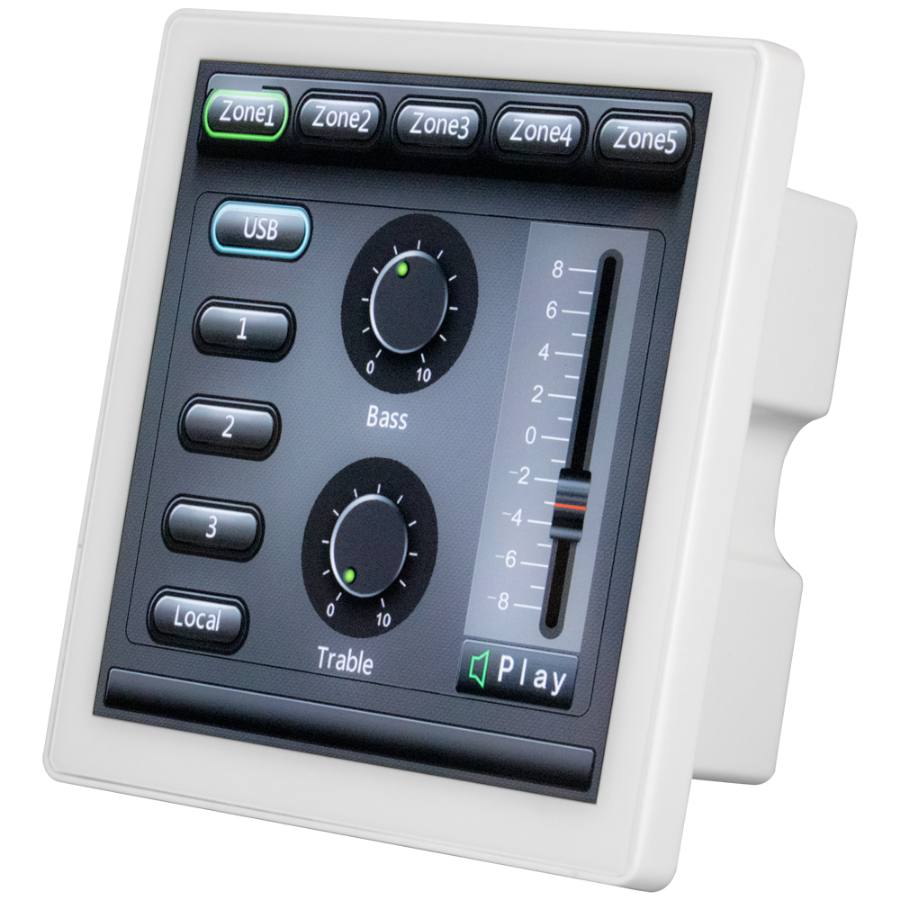

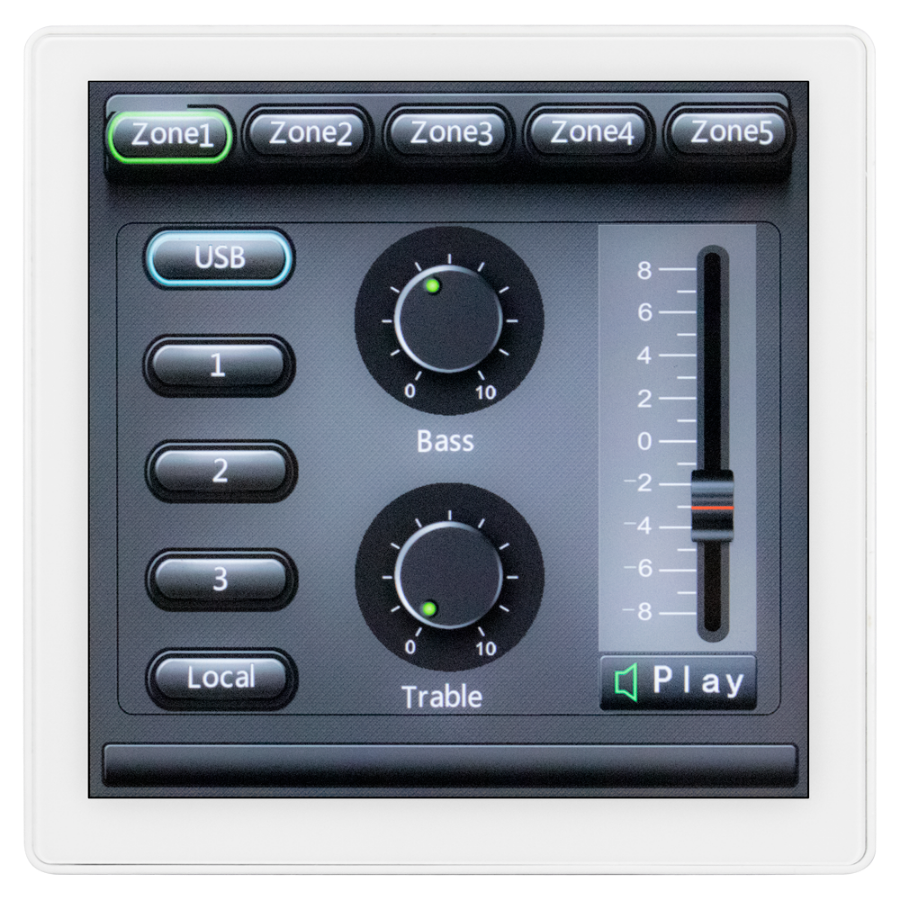

| Touch screen | - Size: 4" - Type: ISP- A color (24 bit)- Resolution: 720x720- Laminated capacitive touch panel- Gesture control |
| Processor | ARM 32 bits (64Mb SDR + 16Mb)Frequency of 300MHz |
| Other | Allows the creation of customized screens through the SmartCreator software (available in the "Downloads" section of the product) |
| Dimensions | 86mm (W) x 86mm (H) x 39mm (D) |
| Weight | 0.126kg |
A wall control panel for amplifiers is a compact and unobtrusive device that mounts on the wall and allows you to control basic functions of a sound system, such as volume, audio source or playback zone, without the need to access the amplifier directly. It is designed to offer a simple and accessible user experience, ideal for environments such as classrooms, meeting rooms, retail or public spaces.
This type of panel facilitates the daily operation of the audio system, allowing anyone to adjust the settings without technical knowledge. Depending on the model, they may also include additional functions such as system on/off, input selection or even Bluetooth connection. In short, it is a practical solution to optimize sound control in professional installations in a convenient and centralized way.
