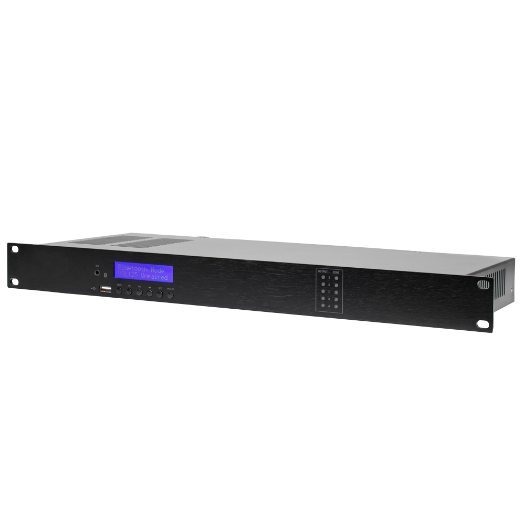

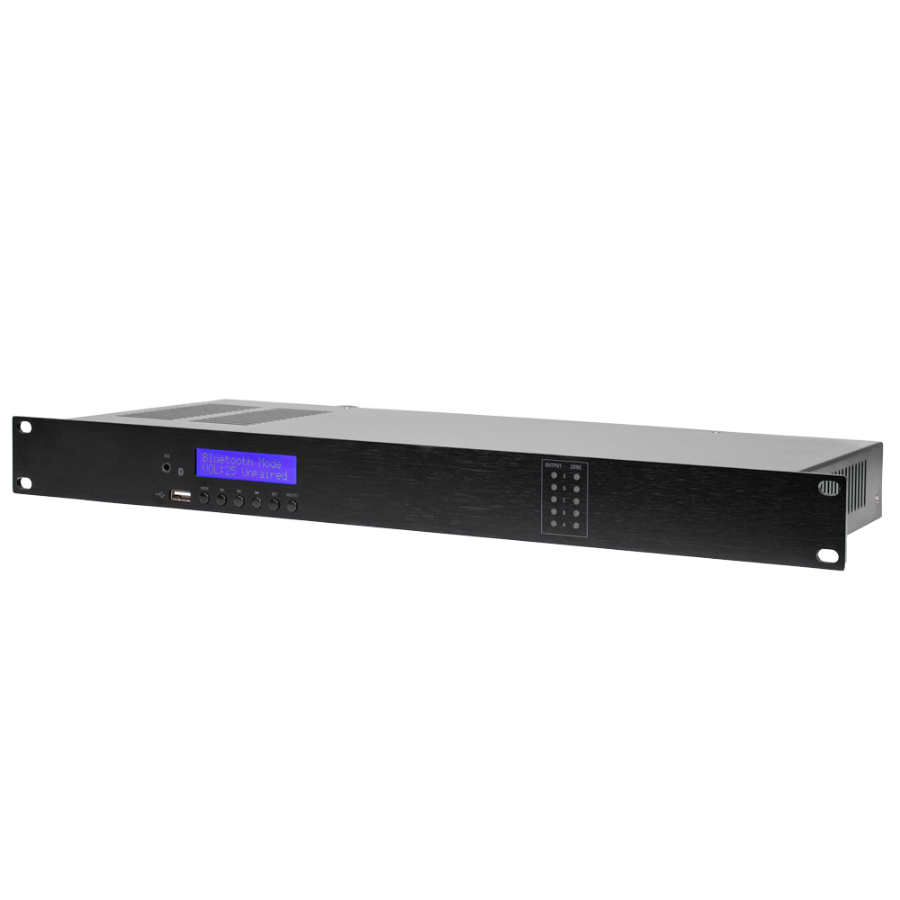

| Model | MAG505 |
| Type | Multi-area matrix |
| Power | 100 ~ 240V AC @ 50/60Hz (IEC) |
| Player | USBBluetooth 5.0 |
| Multi-zone | Up to 5 zones with stereo audio |

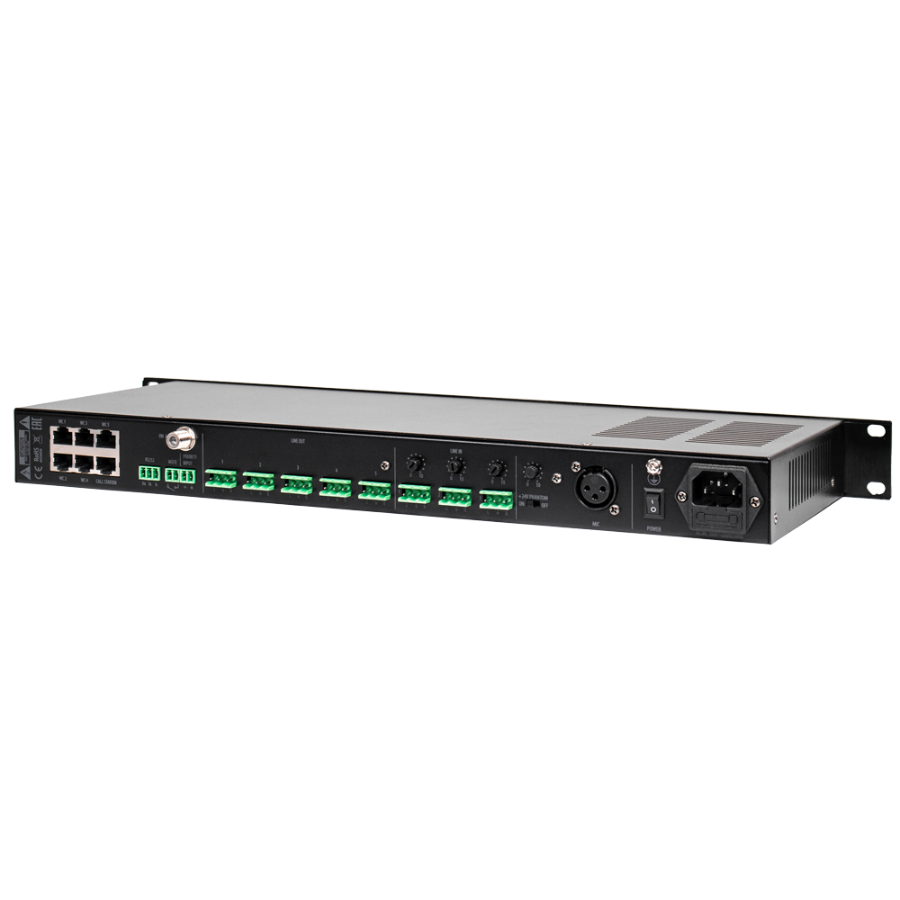

| Ports | Inputs:1 x Power1 x AUX IN (3.5mm)1 x USB1 x Euroblock (remote control RS232))1 x Euroblock (external mute)1 x Euroblock (priority input signal)3 x Euroblock (stereo audio input)1 x XLR (microphone in |
| Other | 1 x On/Off button3 x Potentiometer for gain control of the audio input signals 1 x Potentiometer for gain control of audio output signal1 x Phantom power on/off switch |
| Sensitivity | - MIC IN: -41dBV- LINE IN: -12.5dBV- EMC IN: -10dBV |
| SNR (Signal to Noise Ratio) | - MIC IN: 65dB- LINE IN: 73dB |
| Output Impedance | 600 Ohms |
| Distortion | <0.1% @ 1KHz |
| Phantom power | +24VDC |
| Frequency response | 20Hz -20kHz (±3dB) |
| Compatibility | - Microphone DSPPA-MAG505R- Control panel DSPPA-MAG505C- Volume control panel DSPPA-MAG505S (up to 5) |
| Dimensions | 177mm (W) x 44mm (H) x 483mm (D) |
| Weight | 1.76kg |
Multizone audio matrix systems are solutions designed to distribute and manage audio in different areas in a centralized and efficient way. Multiple sound sources can be connected and sent to different zones, each with independent volume control and source selection. This makes them ideal for environments such as hotels, restaurants, offices or educational centers.
In addition to offering a customized sound experience per zone, these systems often include features such as prioritization for announcements, integration with remote control panels, and automatic playback capability. Their versatility and ease of use make them key tools for installations requiring precise and flexible control of ambient sound.
