| Model | M2U |
| Kit consisting of | 2 x Ceiling loudspeakers DSP5011L1 x Wall amplifier DM835U1 x Remote control |
| RMS power | 2x10W |
| Impedance | 8? |
| Distortion | ?0.03% (1kHz, 1W, 8?) |
| SNR (Signal to Noise Ratio) | >81dB |
| Frequency response | 20Hz ~ 20kHz |
| Maximum memory card capacity | 128MB / 32GB |
| Supported audio formats | MP3WMAWAVFLAC |
| Bluetooth | Bluetooth 2.1 + EDR |
| Ports | 1 x SD card port1 x USB1 x Power Supply (Euroblock)1 x FM Antenna (Euroblock)1 x AUX IN (Euroblock)1 x AUX OUT (Euroblock)2 x Speaker output (Euroblock) |
| Screen | Yes |
| Buttons | - Play / stop- Audio source switching- Increase volume- Lower volume- Previous- Next |
| Power | 100~240V AC @ 50/60Hz |
| Dimensions | 86mm (H) x 86mm (H) x 38mm (D) |
| Component | 6.5" |
| Material | Aluminium |
| Power | 6W |
| Impedance | 8? |
| Maximum SPL | 98dB ±2dB |
| Frequency response | 140Hz - 18kHz |
| Sensitivity | 93dB ±2dB |
| Installation | Ceiling (by clip) |
| Dimensions | 185mm (?) x 69mm (D) |
| Weight | 0.75Kg |
| Communication | IR |
| Buttons | - On / Off- Mode selection- Mute- EQ (audio mode selection)- Menu |

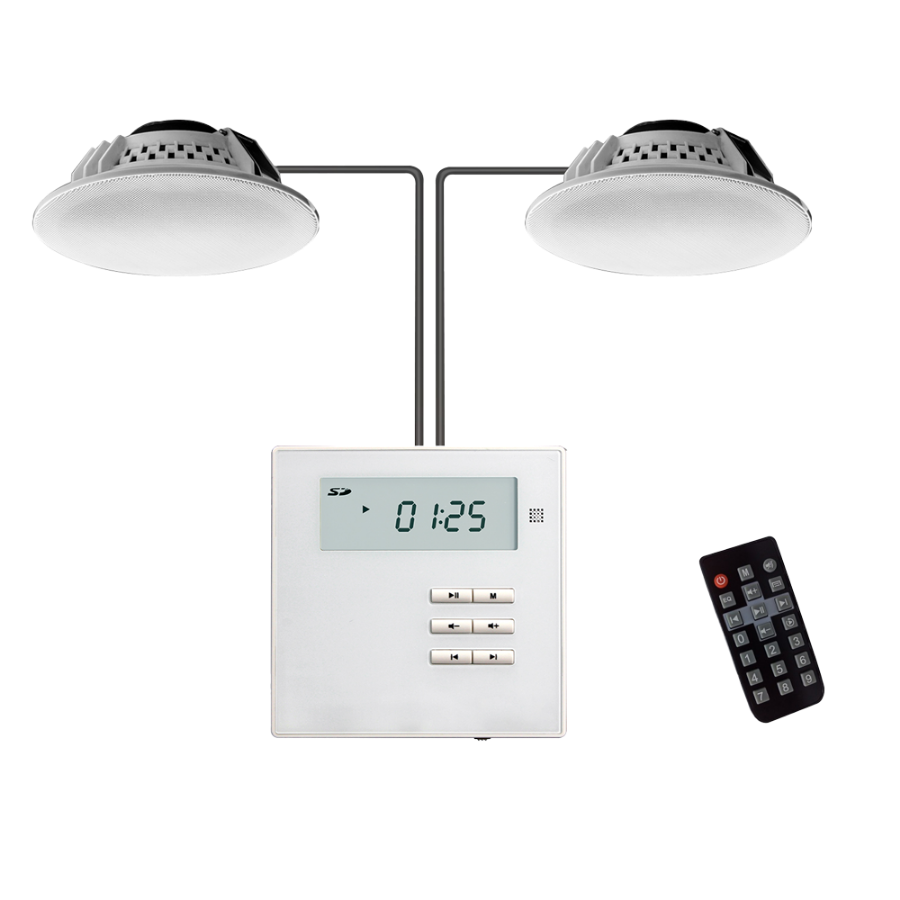

DSPPA's M2U kit is a compact, integrated sound system designed for classroom, meeting room, retail or office installations. This kit includes two DSP5011L, ceiling speakers that provide clear and balanced audio reproduction, ideal for ambient music or voice reinforcement. Alongside them is the DM835U, control panel, a central touch-screen unit that allows easy management of audio sources, volume and other system functions.
In addition, the kit comes with a remote control, making it easy to control the system without the need to access the panel directly. The M2U is designed to offer a complete and discreet solution, with flush-mounted installation and versatile connectivity, ideal for those looking for a professional audio experience with an easy-to-use interface.
