DSPPA-DSP6606W

Ceiling speaker
Full range speaker 1x5" + 1x1"
Power 2 x 30W
Multiple inputs

Brand: DSPPA

Šifra: DSPPA-DSP6606W

GTIN: 8435325490830

147,76 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Model	DSP6606B/W
Speaker type	Wall loudspeaker
Power	100~240V @ 50/60Hz 1A
LINE input	- Connection type: RCA and 3.5mm- Input impedance: >10k?- Sensitivity: 30±300mV- Frequency response: 20Hz - 20KHz (±3dB)- Distortion: ?1%- SNR (Signal to Noise Ratio): ? 81dB- Bass gain (100Hz): ±8dB-
Input AUX1	- Connection type: RCA (Alarm signal)- Input impedance: >10k?- Sensitivity: 1±0.1V- Frequency response: 20Hz - 20KHz (±3dB)- Distortion: ? 1%- SNR (Signal to Noise Ratio): ? 81dB
Input AUX2	- Connection type: RCA (broadcast signal)- Input impedance: >10k?- Sensitivity: 500±50mV- Frequency response: 20Hz - 20KHz (±3dB)- Distortion: ? 1%- SNR (Signal to Noise Ratio): ? 81dB
MIC input	- Connection type: XLR and 6.3mm- Input impedance: 600?- Sensitivity: 40mV (XLR input), 300mV (Input 6.3mm)- Frequency response: 80Hz - 12KHz (±3dB)- Distortion: ? 1%- SNR (Signal to Noise Ratio): ? 7
Amplified output	- Power output: 2x30W (8?)- SNR (Signal to Noise Ratio): ? 81dB- Sensitivity: 90dB±2dB
Speaker	- Components: Woofer 1x5" + Tweeter 1x1"- SPL max: 105dB±2dB- Frequency response: 80Hz-20KHz- Distortion: ? 5%

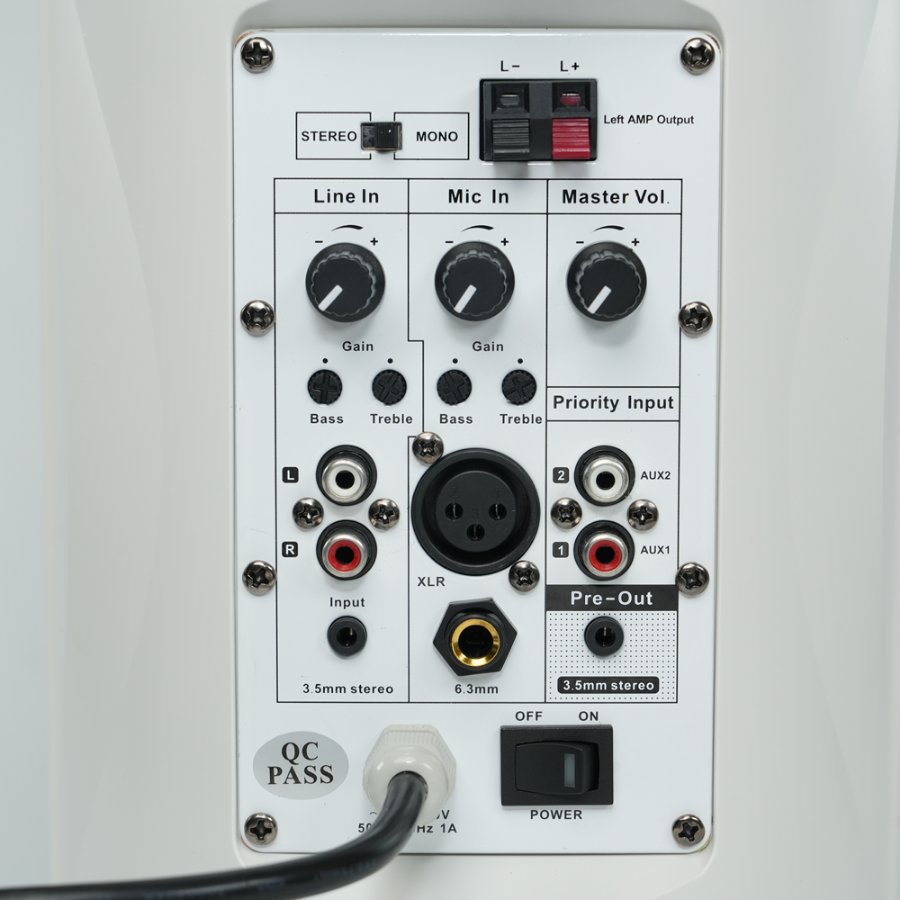

Inputs / Outputs	- 3 x RCA (Line IN, AUX1 and AUX2)- 2 x 3.5mm (Line IN and PRE-OUT)- 1 x XLR (MIC IN)- 1 x 6.3mm (MIC IN)- 2 x Clemas (Left channel amplification)
Dimensions	194mm (W) x 280mm (H) x 185mm (D)
Weight	3.2kg

Opis

Indoor surface loudspeakers are a versatile and efficient solution for public address and ambient sound systems in all types of spaces such as classrooms, offices, corridors, waiting rooms or commercial facilities. Its compact and unobtrusive design allows easy installation on walls, providing good sound coverage without the need for complex construction work.

They operate through constant voltage line systems (70V/100V), which facilitates the connection of multiple loudspeakers to the same amplifier, covering large areas with a uniform sound. They are designed for clear voice reproduction and ambient music, with a robust construction and materials resistant to daily use. In short, they are a practical, economical and durable option for indoor fixed sound installations.
