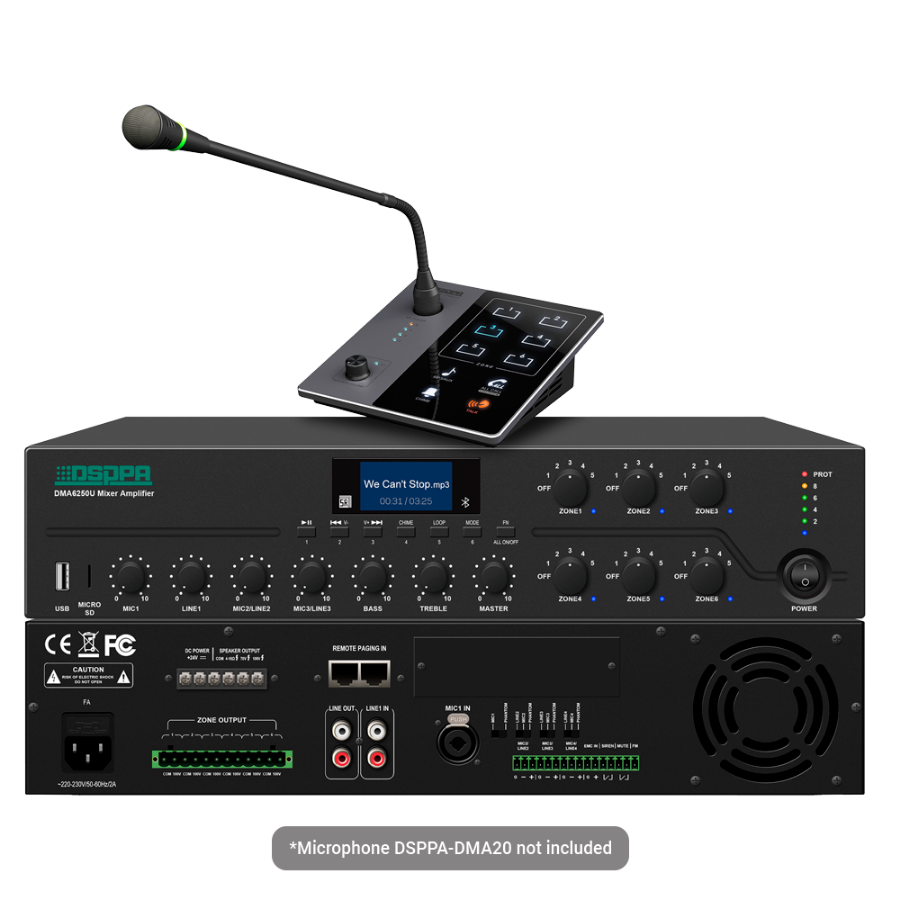

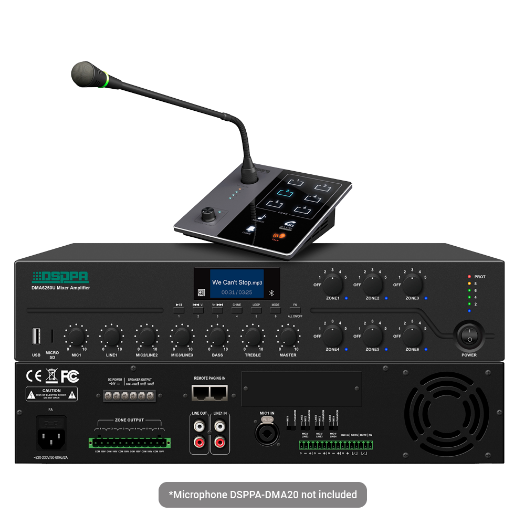

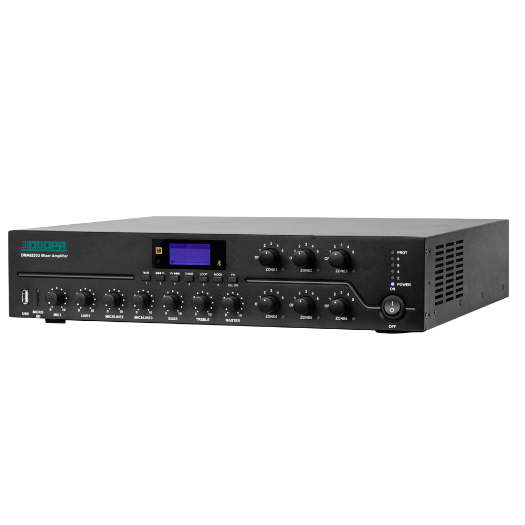

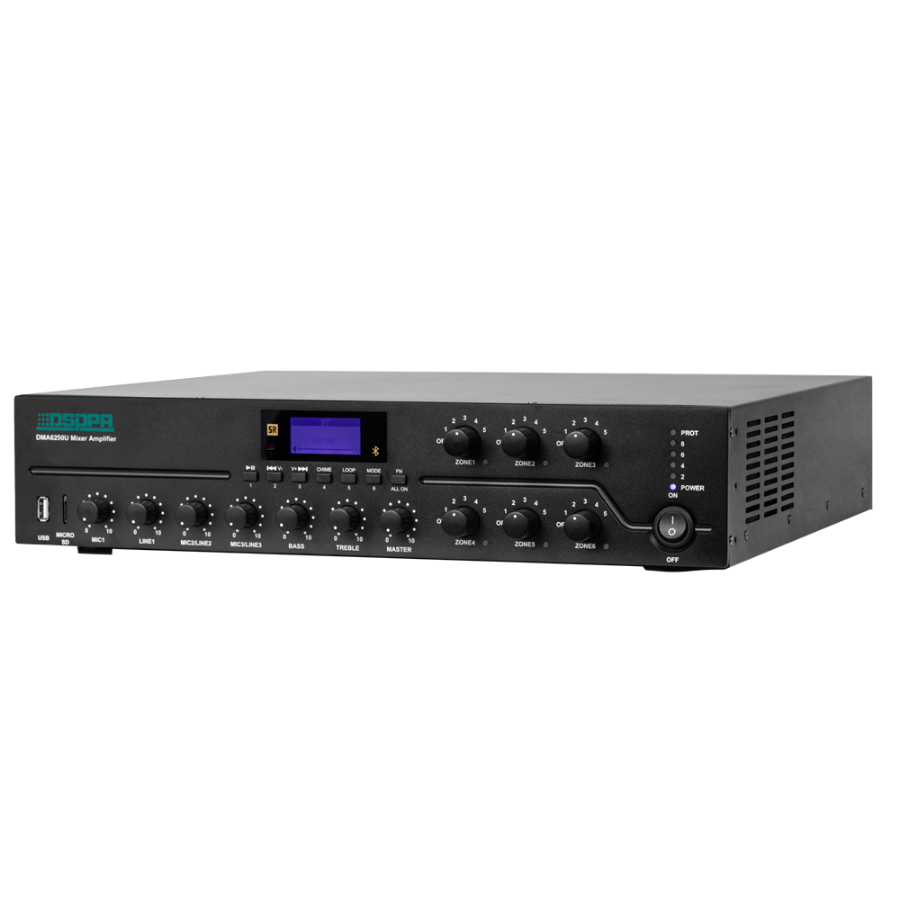

| Model | DMA6250U |
| Power supply | 220 - 230V AC @ 50/ 60Hz |

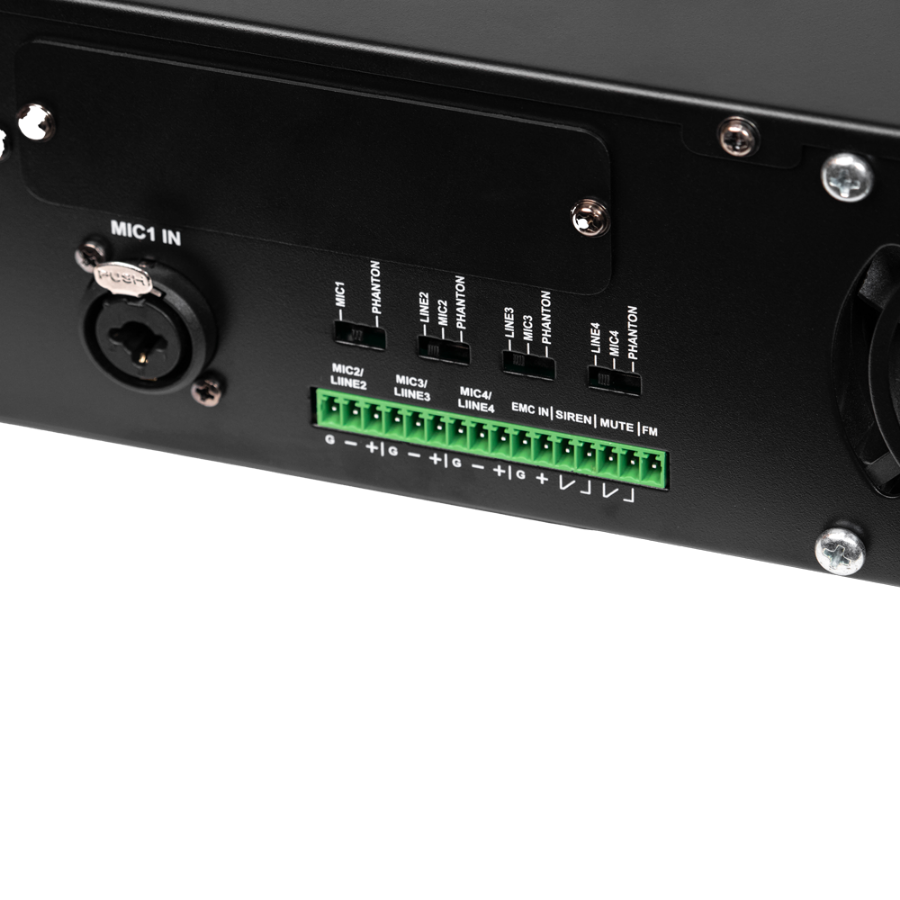

| Inputs | 1 x LINE (RCA)1 x MIC (balanced XLR) 3 x MIC / LINE (Unbalanced Phoenix Jack)2 x AUX (1 x AUX RCA unbalanced, 1 x AUX Jack Phoenix unbalanced)2 x Microphone paging input DSPPA-DMA20 (RJ45 with DC powe |
| Priority function | MUTE > EMC IN = SIREN > MIC1 > Beeper > Announcement microphone > LINE1 = MIC2 / LINE2 = MIC3 / LINE3 = MIC4 / LINE4 = MP3 = BT = FMSound signal is not played when an alarm is sounding |
| Input signal sensitivity | - MIC 1: 5mV ±1mv- MIC2, MIC3 and MIC4: 5mV ±1mv- AUX 1 and AUX 2: 350mV±50mv- EMC: 350mV ±50mv |
| Frequency response | - MIC: 120Hz~ 12kHz (±3dB)- AUX: 80Hz~ 15kHz (±3dB) |
| Connection with warning microphones DSPPA-DMA20 | - Up to 6 daisy-chained microphones- With a microphone connected to the amplifier, the maximum distance between the amplifier and the microphone is 600m- When more than one microphone is daisy-chained |
| Total harmonic distortion level (THD) | <1% |
| Control de volumen | - Zona- Sirena - Senal sonora- EMC IN- MIC y AUX- Agudos y graves |
| Ajuste de agudos | 10dB (±2) |
| Ajuste de bajos | 10dB (±2) |
| Alimentación Pahntom | +48V |
| Interfaz de salida | 70V, 100V (salida de tensión constante)4-16? |
| Corriente | 2A |
| Protección | F3.15AL |
| Salidas | 1 x LINE (RCA)6 x Zonas (Phoenix) |
| Bluetooth | Sí |
| Radio FM | Sí |
| Reproductor USB | Sí |
| Potencia nominal de salida | 250W |
| Dimensiones | 430 × 390 × 88mm (Pr x An x Al) |
| Peso | 8.6 Kg |
A mixer amplifier is a compact device that combines the functions of an audio mixer and an amplifier. Allows multiple sound sources to be connected and their volume levels individually adjusted before mixing them into a single output signal. Its compact design makes it ideal for small space applications or simple installations where a complex audio system is not required.
This type of equipment is commonly used in meeting rooms, small churches, classrooms, stores or public address systems, where several audio signals need to be amplified at the same time.
