| Model | DMA20 |
| Sensitivity | 30 ± 3mV |
| Frequency response | 200Hz -15KHz |
| Signal to noise ratio (SNR) | ? 70db |
| Compatibility | With amplifier-mixers:DSPPA-DMA6250UDMA6350UDSPPA-DMA6500U DMA6650U |

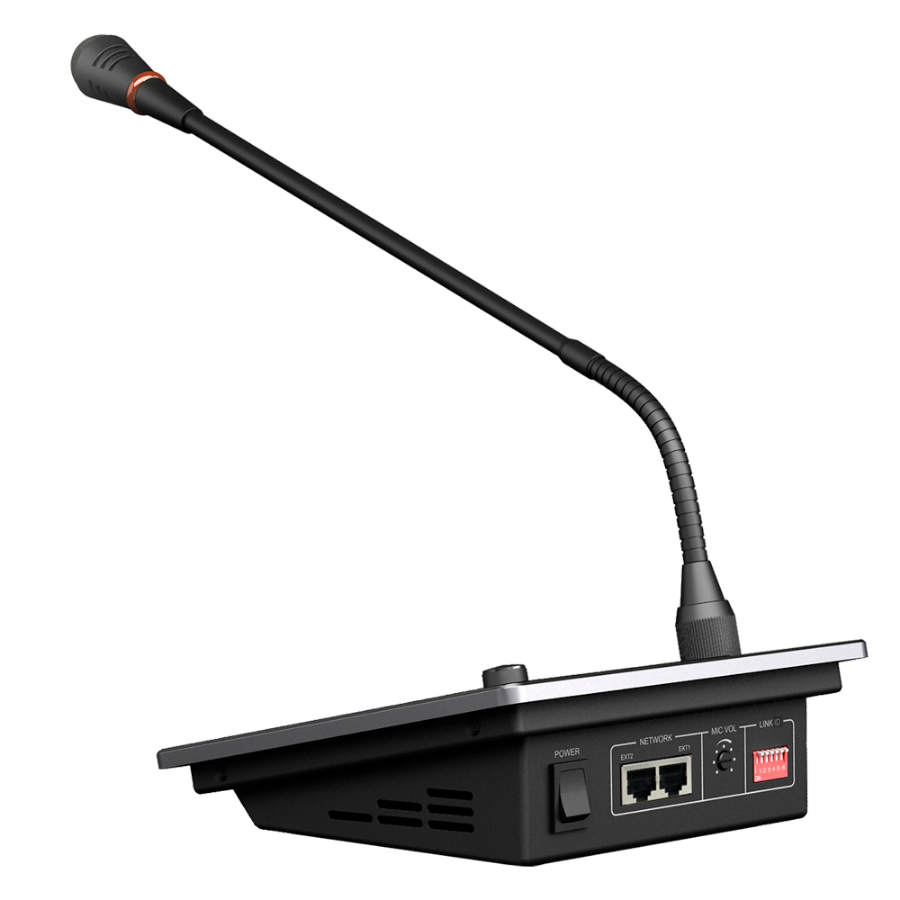

| Port RJ45 | 2 x RJ45 (Communication via protocol RS485 with mixer amplifier) |
| Connection to DMA series mixer amplifiers | - Cable CAT5e (or higher) with ?12? resistance for each 100 meters- Up to 6 daisy-chained microphones- With a microphone connected to the amplifier, the maximum distance between the amplifier and the |
| Connections | 1 x XLR connector (5-pin) |
| Power | Supplied by the mixing amplifier or by the microphone preamplifier (when several are daisy-chained) |
| Indicator lights | - On the neck of the microphone to indicate its activation- At the base of the microphone to indicate the volume (4 leds)- At the base of the microphone to indicate whether the microphone is powered- |
| Volume control | For AUX signals / MP3 |
| Zone selection | - 6 buttons at the base of the microphone for selection of each of the zones- 1 button at the base of the microphone for selection of all zones |
| Source selection | 1 button on the microphone base for AUX source selection / MP3 |
| Microphone activation | 1 button at the base of the microphone to enable/disable voice transmission |
| Activation of the warning signal | 1 button on microphone base |
| Gain Control | 1 potentiometer at the rear of the microphone base |
| Dimensions | 172 × 160 × 53 mm (H x W x D) |
| Weight | 0.89 Kg |
Gooseneck microphones are designed for applications in public address, conference and public announcement systems. Flexible shape allows easy position adjustment for clear and accurate voice pickup, ideal for meeting rooms, customer service desks, educational and commercial settings.
Thanks to their directionality, they help reduce ambient noise and focus on the speaker. They are compatible with public address systems, zoned announcements or emergency announcements, making them a practical and effective solution to ensure clear and professional communication.
