| Brand | Hikvision |
| Model | DS-KH6350-WTE1 |
| Operating system | Linux |
| Screen type | 7" color touch-screen TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm, 1 x RS485 |
| Outputs | 2 x relay |
| Audio | Two-way audio with integrated microphone and loudspeakerNoise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP Protocol 2.0 / WiFi 802.11 b/g/n (only for connection to app via P2P) |
| Remote access | Software iVMS-4200Hik-Connect mobile app |
| Power | DC 12 V / 1 A max. / IEEE802.3af PoE |
| Temp. operation | -10 oC ~ +50 oC |
| Dimensions | 113.5 (H) x 175 (W) x 21 (D) mm |
| Weight | 355 g |
| Colour | White |
| Slave monitors | It is not possible to use the Android DS-KH9310 and DS-KH9510 monitors as slaves |

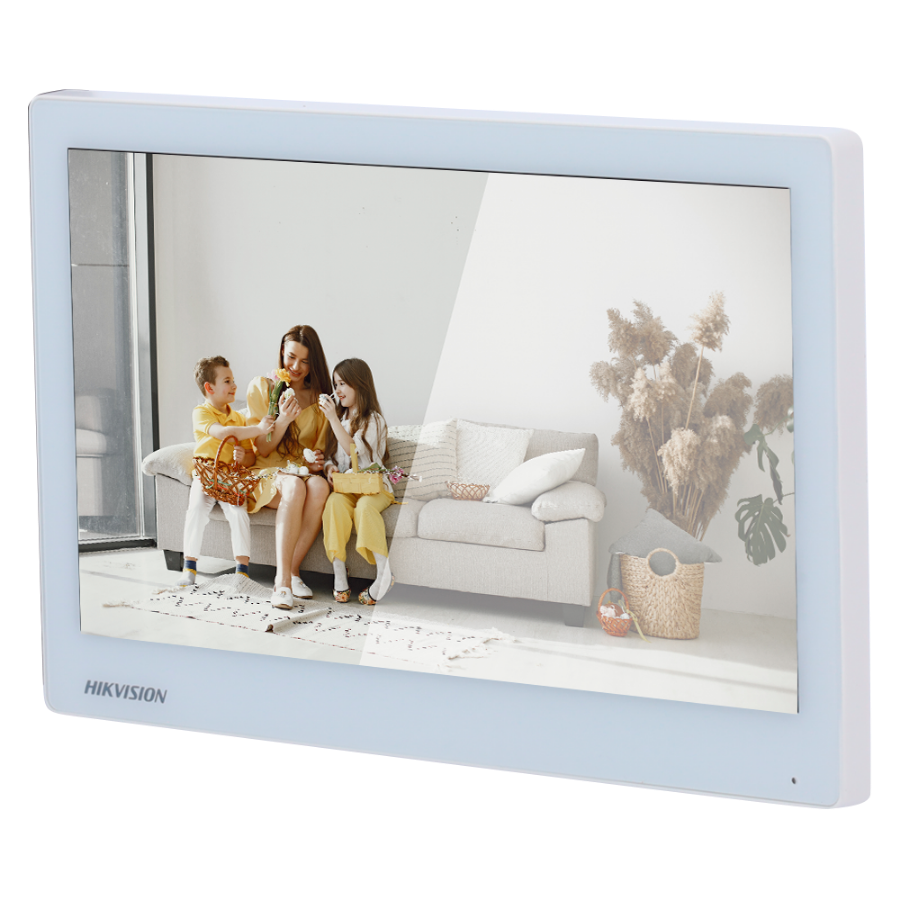

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 7" touch screen for easy operation by the user.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 2 relay outputs it is possible to act on different elements, such as doors or doorbells to be triggered during calls.
From the software iVMS-4200 you can link boards and monitors to make and receive calls, create contacts, send informative messages to monitors or review call logs.
With the Hik-Connect mobile application, the end user can receive calls, open the door or view the panel camera live, all from any location.
