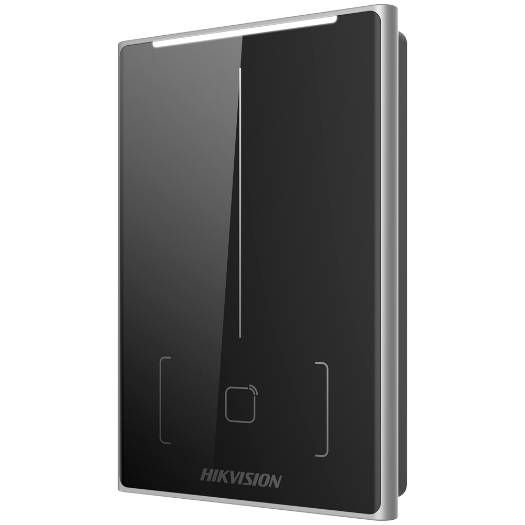

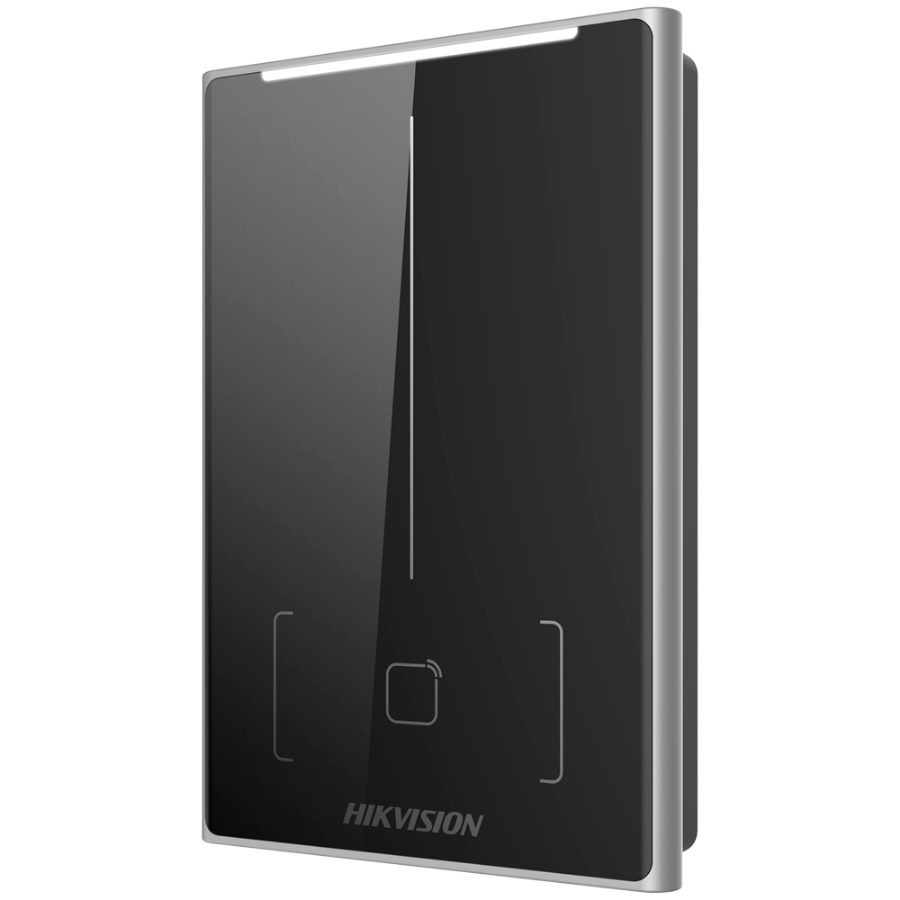

| Brand | Hikvision |
| Model | DS-K1109DB |
| Card reading distance | < 5 cm |
| Identification modes | Card (MF DESFire 13.56 MHz) |
| Outputs | RS485, Wiegand 26/34, buzzer for status indication, tamper |
| Compatibility | Hikvision controllers DS-K2800 Series and DS-K2600T Series |
| Power | DC 12 V / 500 mA máx. |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -40 oC ~ +65 oC |
| Dimensions | 125 (W) x 85 (H) x 18 (D) mm |
| Weight | 300 g |
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.
This reader allows identification through cards or key fobs with MF technology of 13.56 MHz and MF DESFire of 13.56 MHz.
The connection to the controllers is made through Wiegand or RS485. These protocols allow a secure connection in the outdoor installation with their IP65 grade.
