| Brand | Hikvision |
| Inputs for IP cameras | LAN port up to 16 channels |
| IP compatible cameras | Hikvision, ONVIF |

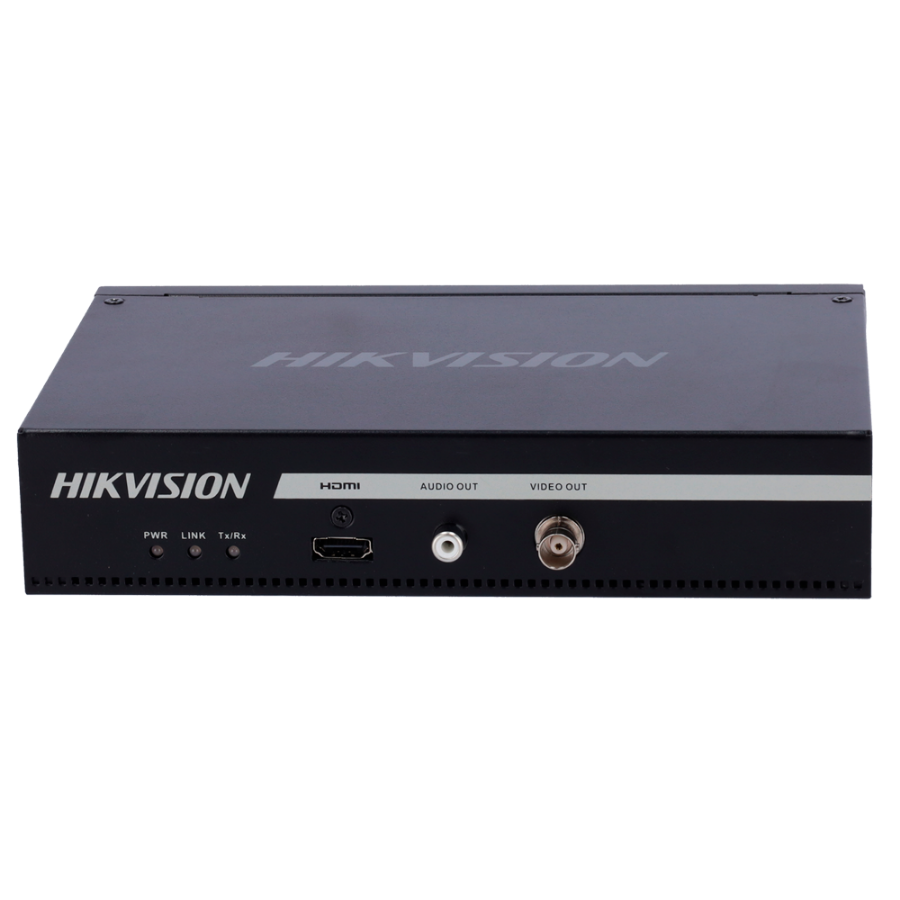

| Video outputs | 1 HDMI 4K | 1 BNC |
| Video decoding format | H.265+ / H.265 / H.264+ / H.264 |
| Decoding capacity | 32Mpx/24 Mpx: 1 CH,12Mpx: 2 CH,8Mpx: 4 CH,6Mpx: 5 CH,4Mpx: 9 CH,1080p: 16 CH |
| Video output resolution | HDMI:4K: 3840x2160 @30 Hz, 2560x1440 @30 Hz, 1920x1200 @60 Hz, 1920x1080 @50/60 Hz, 1680×1050@60 Hz, 1600×1200@60 Hz, 1280×1024@60 Hz, 1280×720@50 Hz/60 Hz, 1024×768@60 Hz BNC:PAL: 704x576, NTSC: 704x |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Split Screen | 1/4/6/8/9/12/16 |

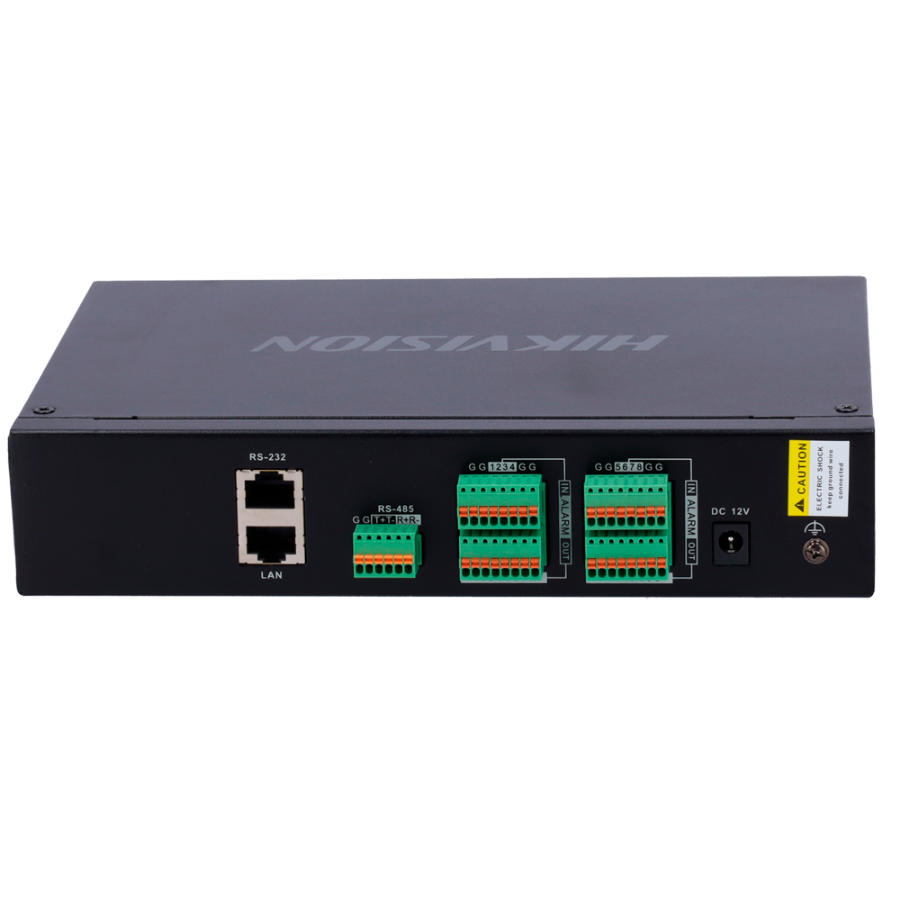

| Alarms | 8 inputs / 8 outputs |
| Audio | 1 outputEmbedded audio in HDMI channel |
| Audio coding format | G711A/G711U/G722.1/ G726-16/U/A /MPEG/AAC-LC |
| Audio decoding format | G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC |
| Communication | RS-485 (PTZ) / RS-232 |
| Network interface | 1 x RJ45 10/100/1000 Mbps |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power | DC 12 V, ? 15 W |
| Operating temperature | -10o C ~ +55o C |
| Dimensions / weight | 45 mm (H) x 220 mm (W) x 148 mm (D) |
| Weight | 1.12 Kg |
