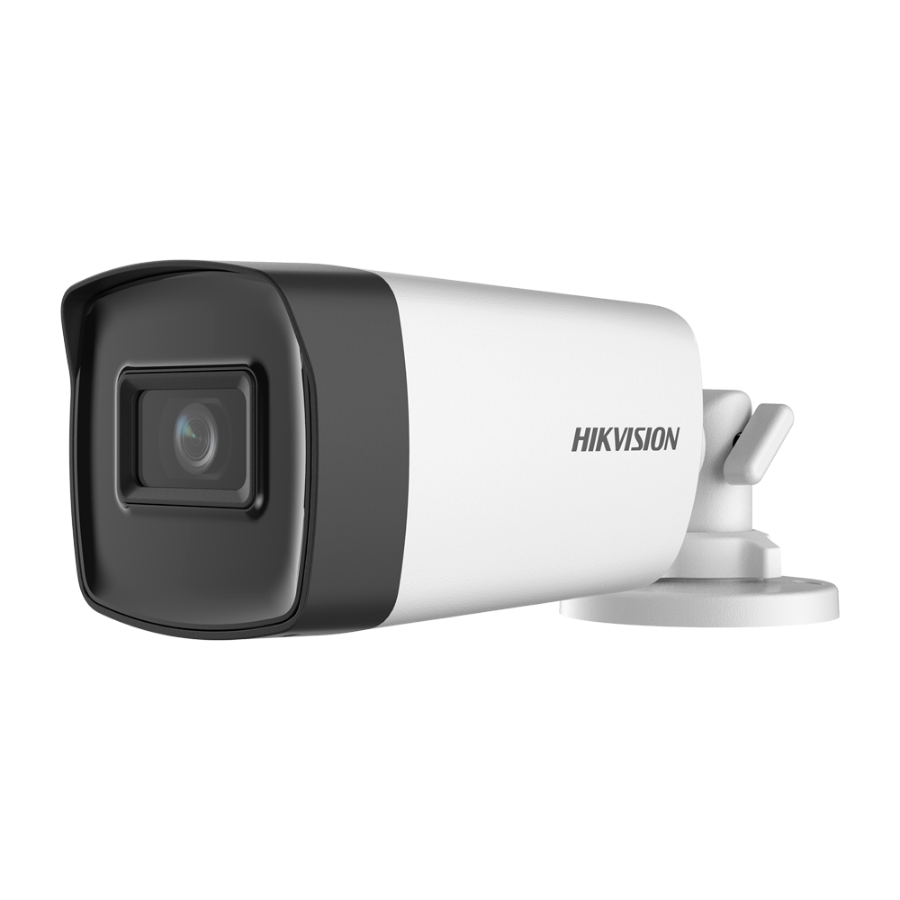

| Brand | Hikvision |
| Range | Value |
| Image sensor | High Performance CMOS |
| Maximum resolution | 5Mpx (2560x1944) to 20fps |
| Resolution | TVI: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps)CVI: 4Mpx (25~30 fps)AHD: 5 Mpx (20 fps), 4Mpx (25~30 fps)CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 85o (H), 63o (V), 110o (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared lighting | 0 Lux / (Smart IR Range 40 m) |
| Day / Night | Auto / Color / Black & White (ICR) |
| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Adjustment | 3 Axis |
| Power | DC 12 V / 4.3 W max |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -40o C ~ +60o C |
| Material | Front Cover: MetallicCamera body: Plastic |
| Dimensions | 75.4 mm (H) × 78.9 mm (W) × 216.6 mm (Fo) |
| Base diameter | O base 70 mm / O entre tornillos 55 mm / 3 tornillos |
| Weight | 330 g |
