| Brand | Dorcas |
| Model | DR-M-M600MS |
| Door type | Simple: 1 folding sheet |
| Opening mode | Fail Safe / Inverted (NC) |
| Retention force | 280 kg |
| Power | DC 12 V / 400 mA máx. o DC 24 V / 200 mA max.(The change from 12 to 24 VDC is done automatically by the suction cup) |

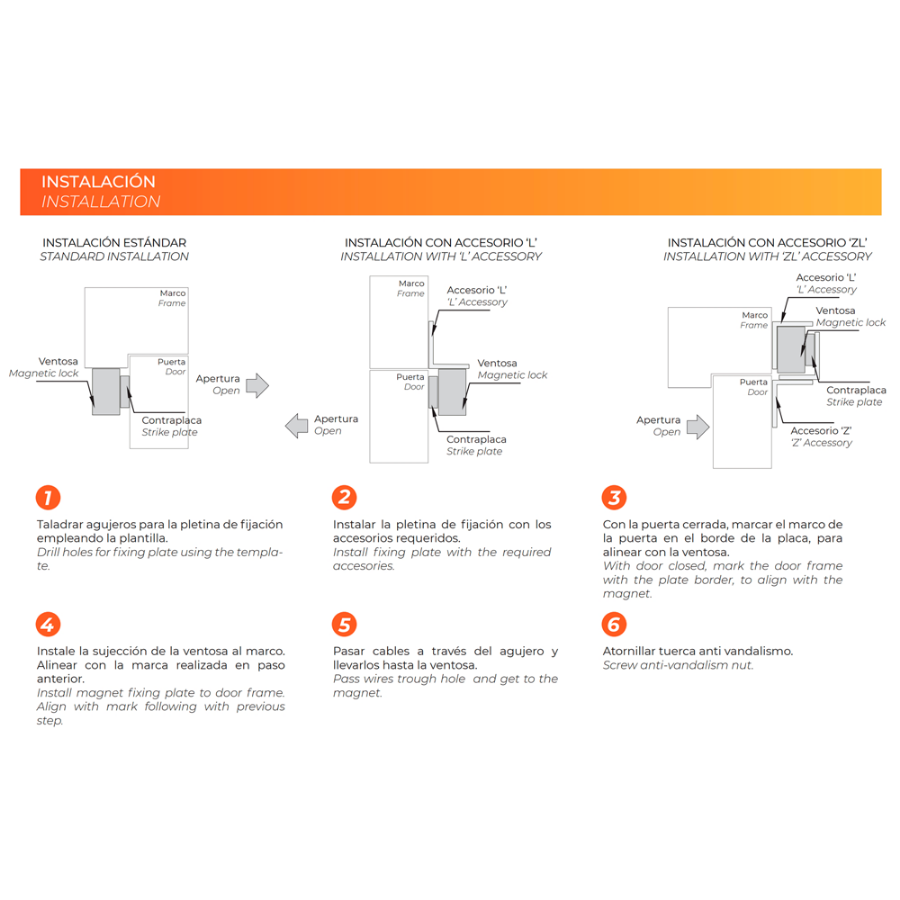

| Mounting | Built-in |
| Protection | Interior |
| Material | Aluminium |
| Temp. operating | -60 oC ~ +50 oC |
| Dimensions | Maglock: 258 (W) x 49 (H) x 27 (D) mmCounterplate: 165 (W) x 43 (H) x 13 (D) mm |
