| Brand | Anviz |
| Operating system | Linux |
| Processor | 32-bit ARM MCU |
| Algorithm | BioNano V10 |
| Optical fingerprint sensor | AFOS300 encapsulated |
| Activation sensor | Infrared auto-activation |
| Scan area | 22 x 18 mm |
| Resolution | 500 DPI |
| Screen | 128*64 Blue LCD |
| Identification time | < 0.5 Sec. |
| Capacity | Up to 2000 fingerprints |
| Records | Up to 50000 |
| Identification modes | Fingerprint(F), Pin(P), P+F, ID+P |

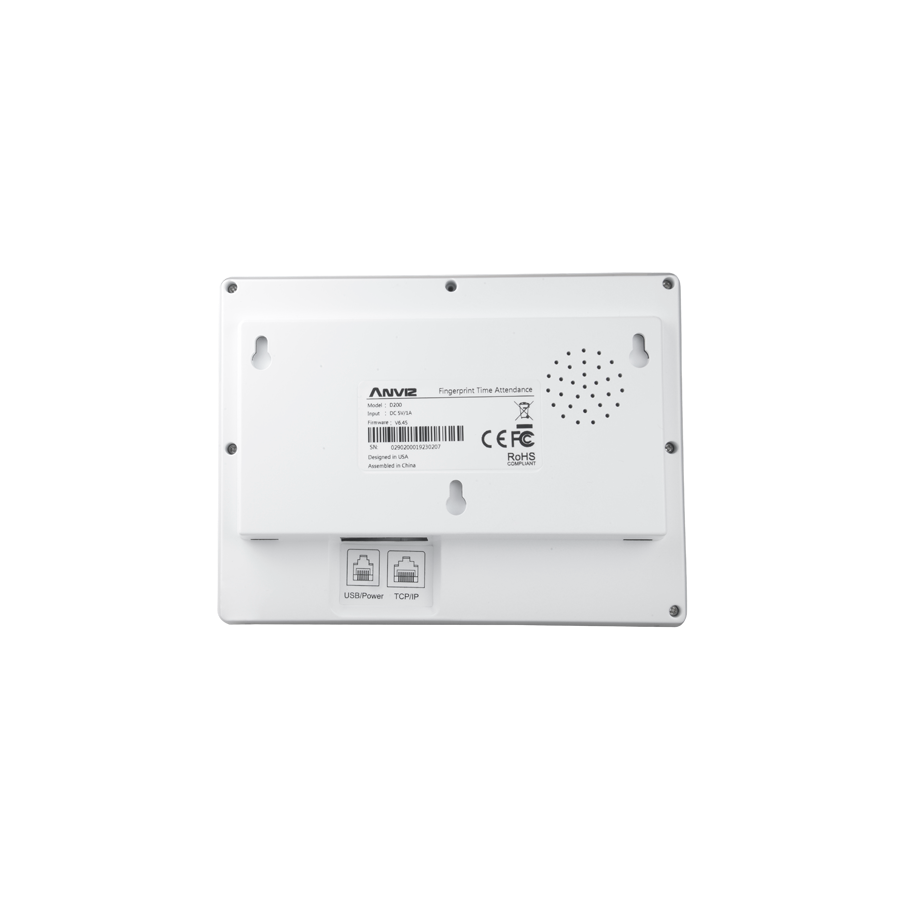

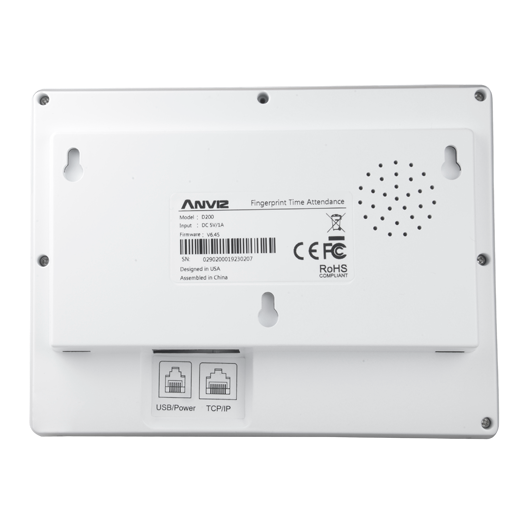

| PC communication | USB, TCP/IP |
| Free software | ANVIZ CrossChex |
| Power | DC 5 / 1.0 A |
| Battery capacity | 1100 mAh / up to 6 hours |
| Temp. operation | -10o C ~ +40o C |
| Dimensions | 30 (D) x 157 (W) x 119 (H) mm |
| Weight | 350 g |
| Certificates | CE / FCC |

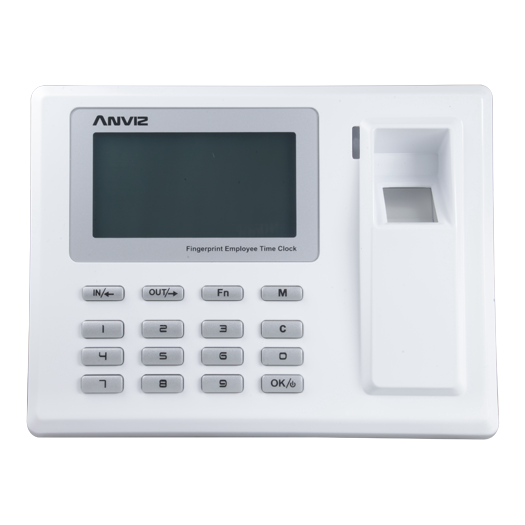

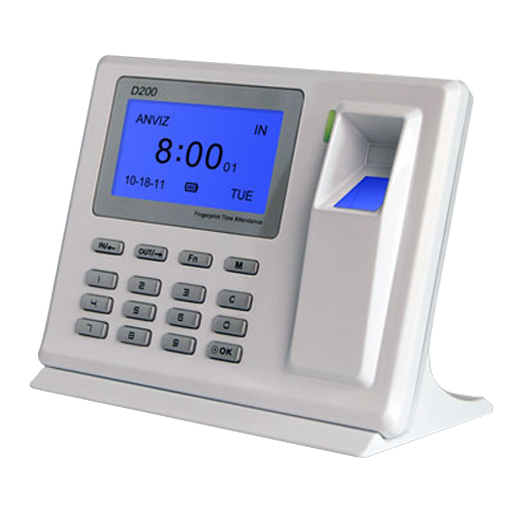

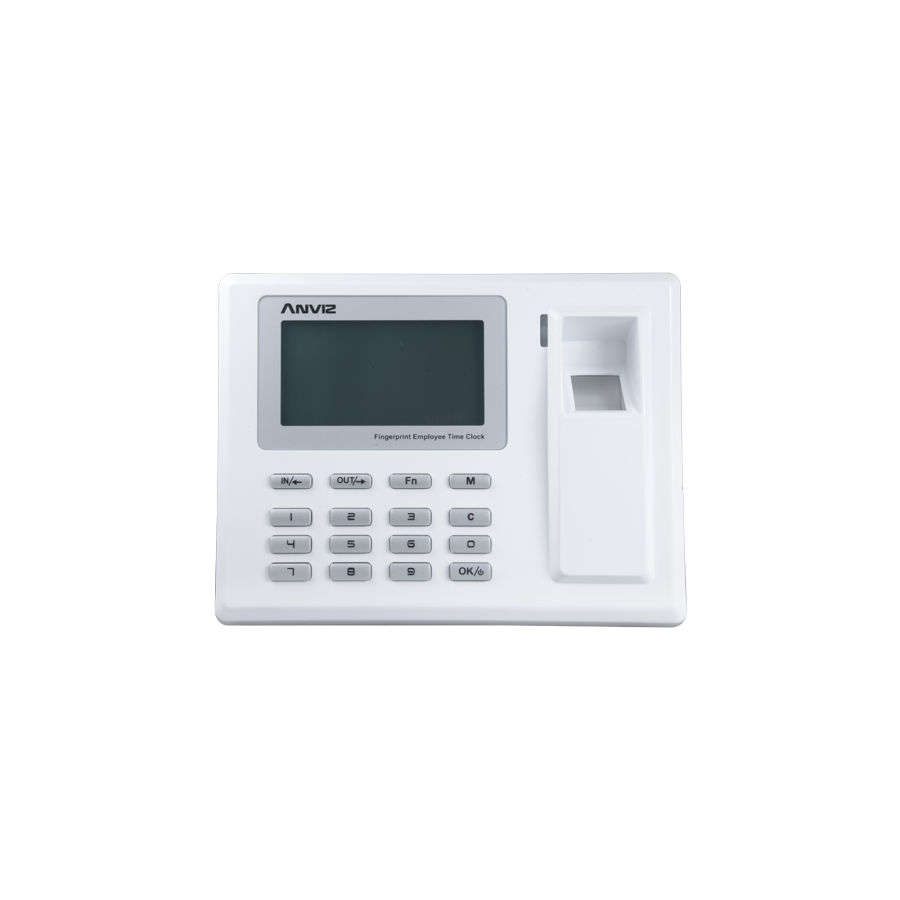

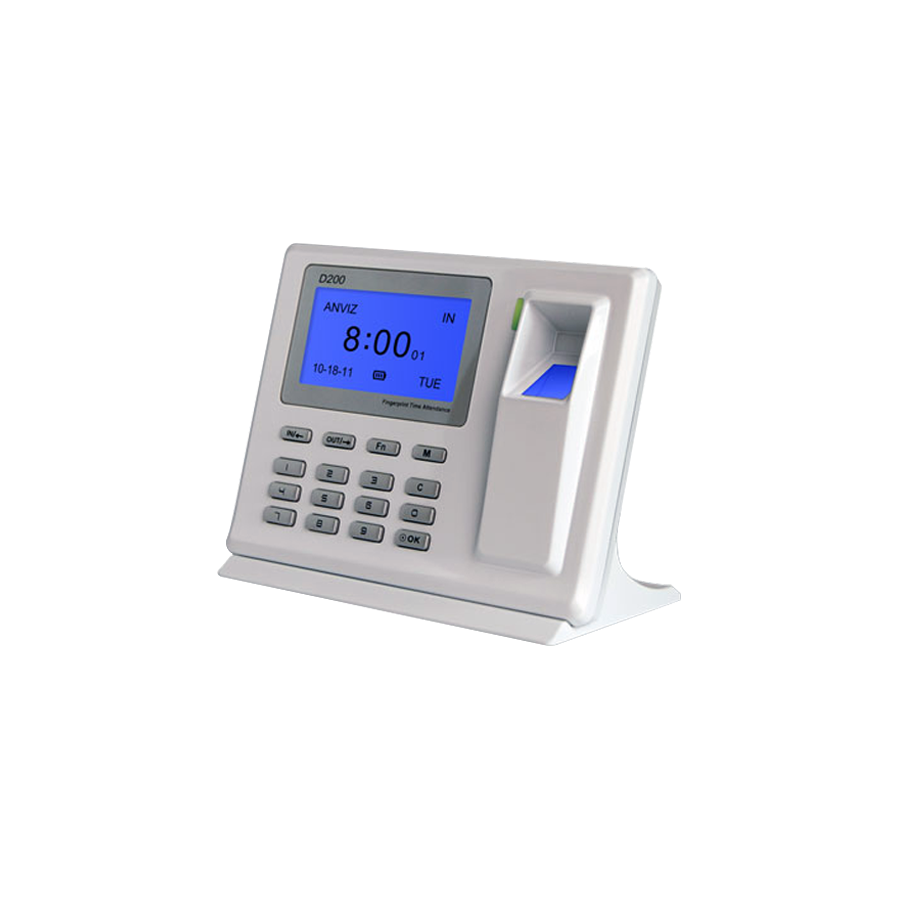

A stand-alone time and attendance device is able to identify users and collect clockings made. This equipment must always have a display to show the actual time at which the workers are performing the identification.
This equipment allows identification through numeric codes and fingerprint biometrics.
Its dot matrix display facilitates the operation and configuration of the equipment locally, both to use it autonomously without software, and to set some parameters required to connect to the software, such as network configuration.
The CrossChex Standard software is used to configure users, schedules and shifts, as well as to manage absences and leaves and to obtain different reports (clockings, monthly summary and overtime, among others).
