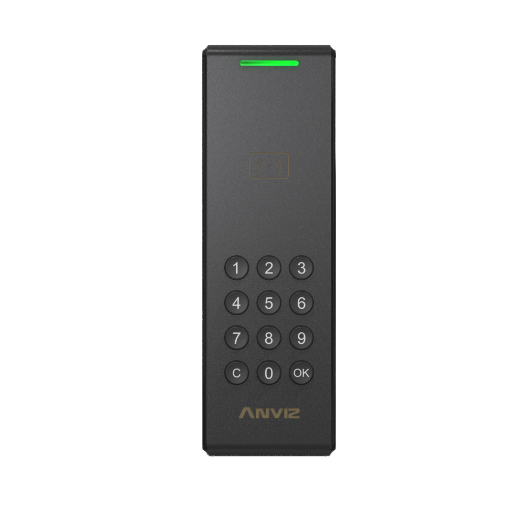

| Brand | Anviz |
| Model | C2KA-BT-WIFI |
| Capacity | Up to 10.000 cards/passwords |
| Records | 100.000 registers |
| Identification modes | Card, PIN and/or combinations |
| Proximity card | EM RFID (125 kHz) and MF (13.56 MHz) |
| Communication | TCP/IP, WiFi, Bluetooth, RS485 and Wiegand |
| Inputs | 1 x door sensor, 1 x pushbutton, 1 x Wiegand IN |
| Outputs | 1 x relay NO/NC, 1 x Wiegand OUT, 1 x DC 12 V |
| Software | CrossChex Standard: free local PC software for access and presence controlCrossChex Mobile: free mobile application for access control |
| Voices | Spanish, English, French and PortugueseChange of language via WebServer with browser |
| Power | DC 12 V / 1 A max.Standard PoE IEEE802.3af |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operating | -10 oC ~ +60 oC |
| Dimensions | 50 (W) x 159 (H) x 20 (D) mm |
| Weight | 450 g |

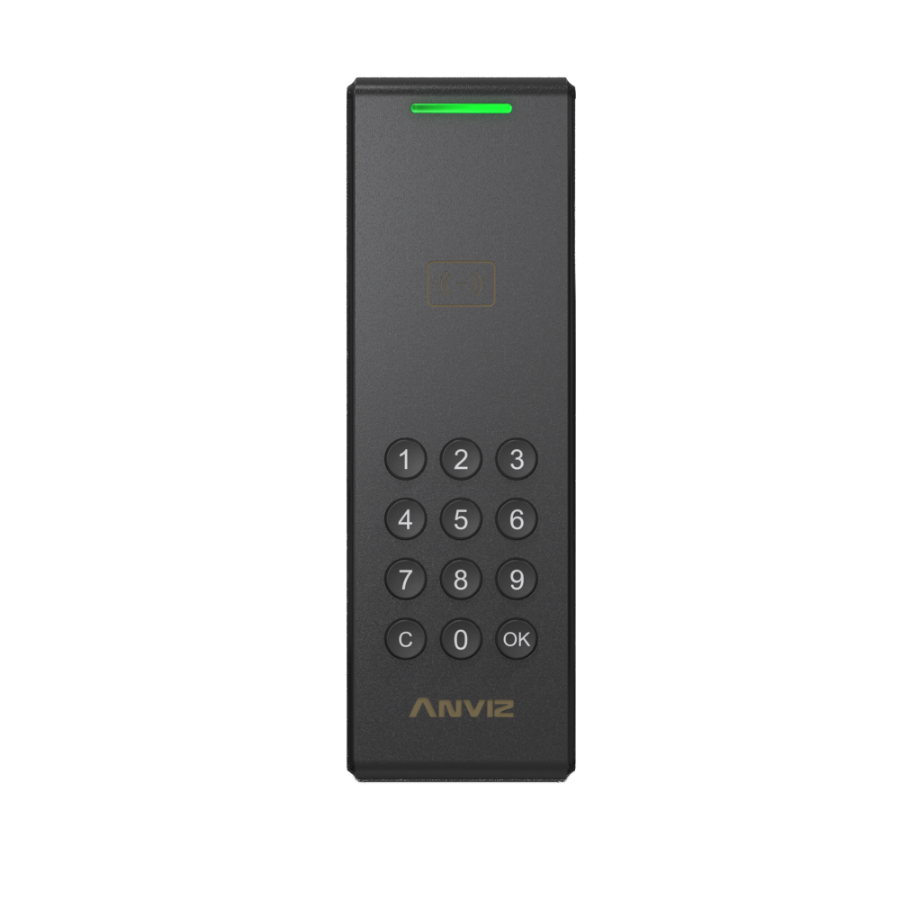

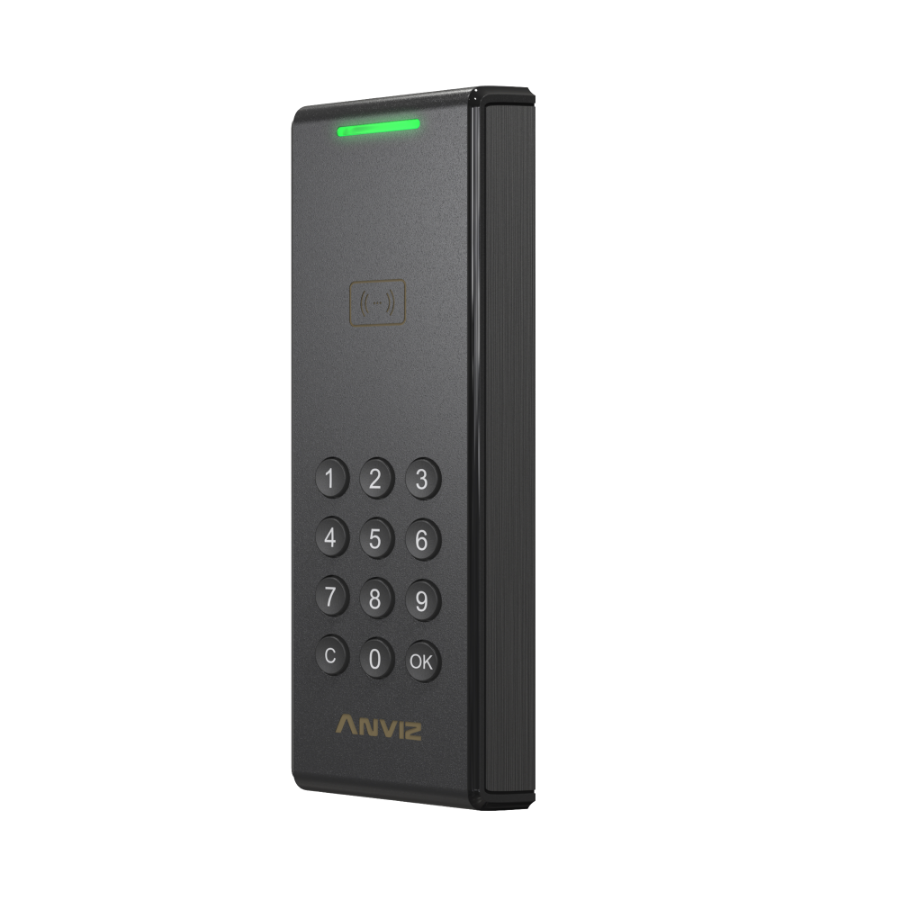

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay.
This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz, as well as keypad for numeric codes.
Advanced configurable functions: 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE).
Its exterior grade IP65 allows it to be installed outdoors.
The CrossChex Standard software is used to configure users, schedules and access groups, as well as special functions, relay opening times or reader reading times.
