| Power | 7600W |
| Capacity | 9920Wh |
| Warranty | 10 years (certified installer) |
| Brand | Bluetti |
| Capacity | 4960Wh |
| Battery type | LiFePO4 99.2V / 50Ah |
| Voltage | 77.5~113.65 Vdc |
| Life Cycle | +4000 (to 80%)) |
| Temp. Functioning | -20-40 ? |
| Dimensions | 325(W) x 636(D) x 338(H) mm |
| Weight | 58 Kg |
| Warranty | 10 years |
| Maximum load voltage | 108.5V |
| Minimum discharge voltage | 86.8V |
| Maximum charge current | 25A |
| Maximum discharge current | 50A |
| Connection | Single-phase |
| Capacity | 9920Wh (at least 2x BL-B500) |
| Maximum output power | 7600W |
| Output voltage | 230V |
| Dimensions | 325 (W) x 370 (H) x 636 (D) mm |
| Weight | 44 Kg |
| Degree of protection | IP65 |
| Connectivity | App (WiFi / Bluetooth) |
| Other | Supports up to 4x BL-B500 |
| PV input | 9.000 W (3 strings: 3.000W + 3.000W + 3.000W) |
| Maximum PV input power | 13.5 KWp |
| Maximum input power per PV string | 4.5 KWp |
| Number of MPPT | 3 |
| Chains / MPPT | 1 |
| MPPT voltage range | 150V - 500V |
| Maximum input voltage | 550V |
| Maximum input current per MPPT | 12.5A |
| Maximum short-circuit current by MPPT | 15A |
| Security Certification | IEC 62109-1, IEC 62109-2, EN 62109-1, EN 62109-2 |
| Network Connection Certification | EN 50549-1, UTE C 15-712-1, DIN V VDE V 0126-1-1, Enedis-PRO-RES_10E version 5, VFR, G99/NI Issue 1, G99 Issue 1 Amendment 9, VDE-AR-N 4105, DIN VDE V 0124-100 (VDE V 0124-100), RD647, UNE 217002, RD |
| Emissions Certification | EN/IEC 61000-6-3, EN/IEC 61000-6-1 |

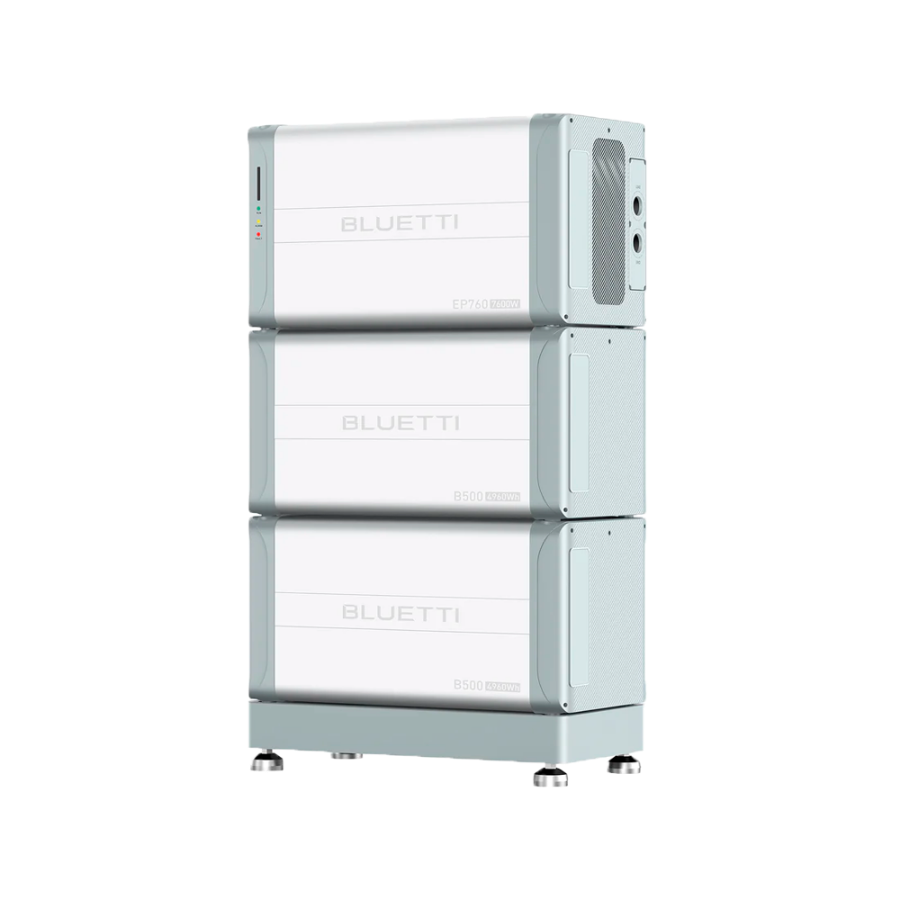

The Bluetti system consisting of the EP760 inverter and the B500 battery provides a single-phase hybrid solution and uses surplus solar energy to store energy and use it when needed.
It is a versatile system since it can be used in single-phase systems connected to the grid, isolated and in AC coupling with any inverter on the market.
