| Power | 6000W |
| Capacity | 9920Wh |
| Warranty | 10 years (certified installer) |
| Brand | Bluetti |
| Connection | Three-phase |
| Capacity | 4960Wh (at least 1x BL-B500) |
| Maximum output power | 6000W |
| Output voltage | 230V / 400V |
| Dimensions | 325 (W) x 370 (H) x 636 (D) mm |
| Weight | 40 Kg |
| Degree of protection | IP65 |
| Connectivity | App (WiFi / Bluetooth) |
| Other | Supports up to 8x BL-B500 (39.6Wh) |
| Warranty | 10 years (authorized installer) |
| PV input | 6000W (2 strings: 3000W + 3000W) |
| Maximum PV input power | 9 KWp |
| Maximum power input per chain | 4.5 KWp |
| Number of MPPT | 2 |
| Chains / MPPT | 1 |
| MPPT voltage range | 150V - 500V |
| Maximum input voltage | 550V |
| Maximum input current per MPPT | 12.5A |
| Maximum short-circuit current by MPPT | 15A |
| Security Certification | IEC 62477-1: 2012, EC 62477-1: 2012, EN 62477-1: 2012, IEC62109-1, IEC62109-2EN62109-1, EN62109-2 |
| Network Connection Certification | (EU) 2016/631, EN 50549-1, VDE-AR-N 4105, DIN VDE V 0124-100 (VDE V 0124-100), UTE C 15-712-1DIN V VDE V 0126-1-1, Enedis-PRO-RES_10E V5, VFR, C10/11, TOR Erzeuger Type A V1.2OVE-Richtlinie R 25, G98 |
| Emissions Certification | EN IEC 61000-6-3, EN IEC 61000-6-1 |
| RoHS | 2011/65/EU and (EU) 2015/863 |
| Capacity | 4960Wh |
| Battery type | LiFePO4 99.2V / 50Ah |
| Voltage | 77.5~113.65 Vdc |
| Life Cycle | +4000 (to 80%)) |
| Temp. Functioning | -20-40 ? |
| Dimensions | 325(W) x 636(D) x 338(H) mm |
| Weight | 58 Kg |
| Warranty | 10 years |
| Maximum load voltage | 108.5V |
| Minimum discharge voltage | 86.8V |
| Maximum charge current | 25A |
| Maximum discharge current | 50A |
| Material | Metallic |
| Compatibility | BL-EP600, BL-B500 |
| Colour | Grey |

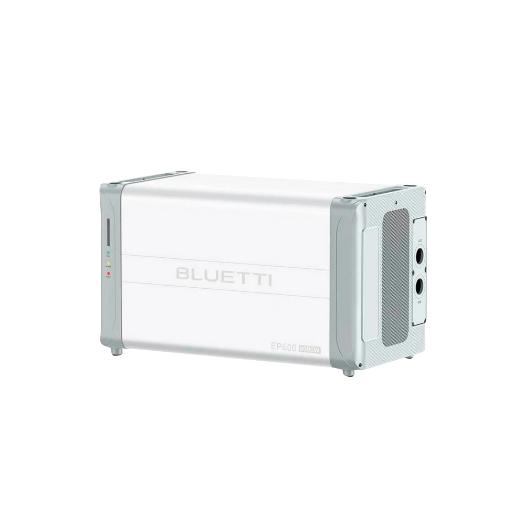

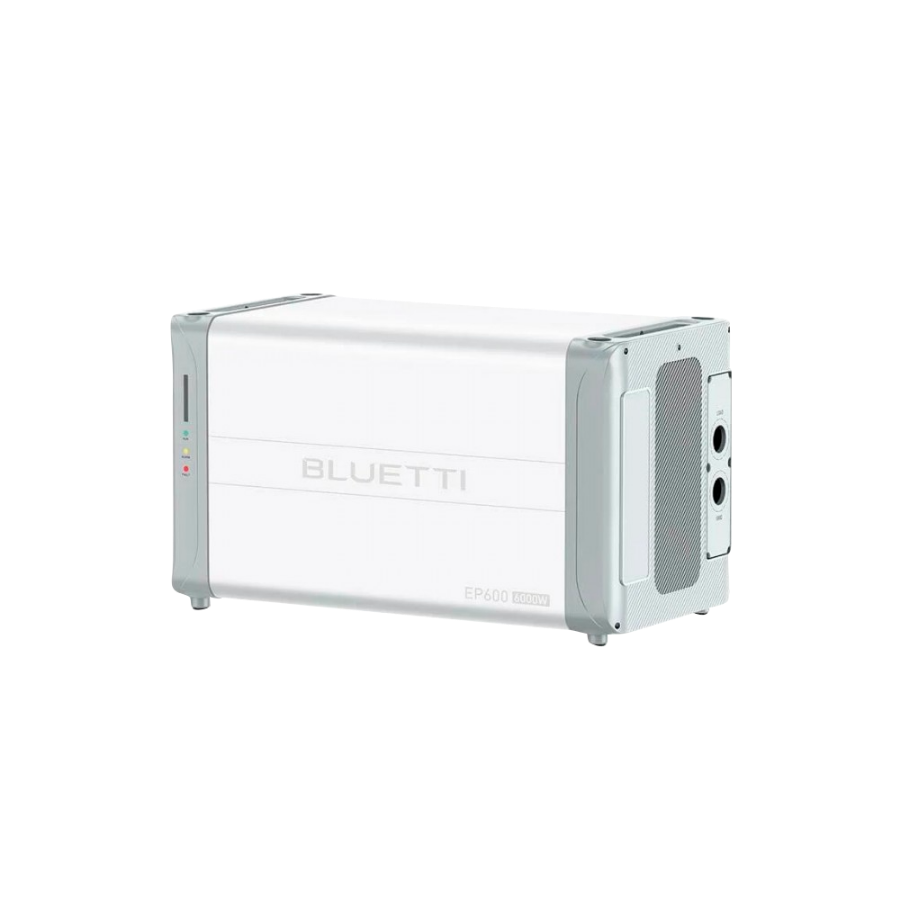

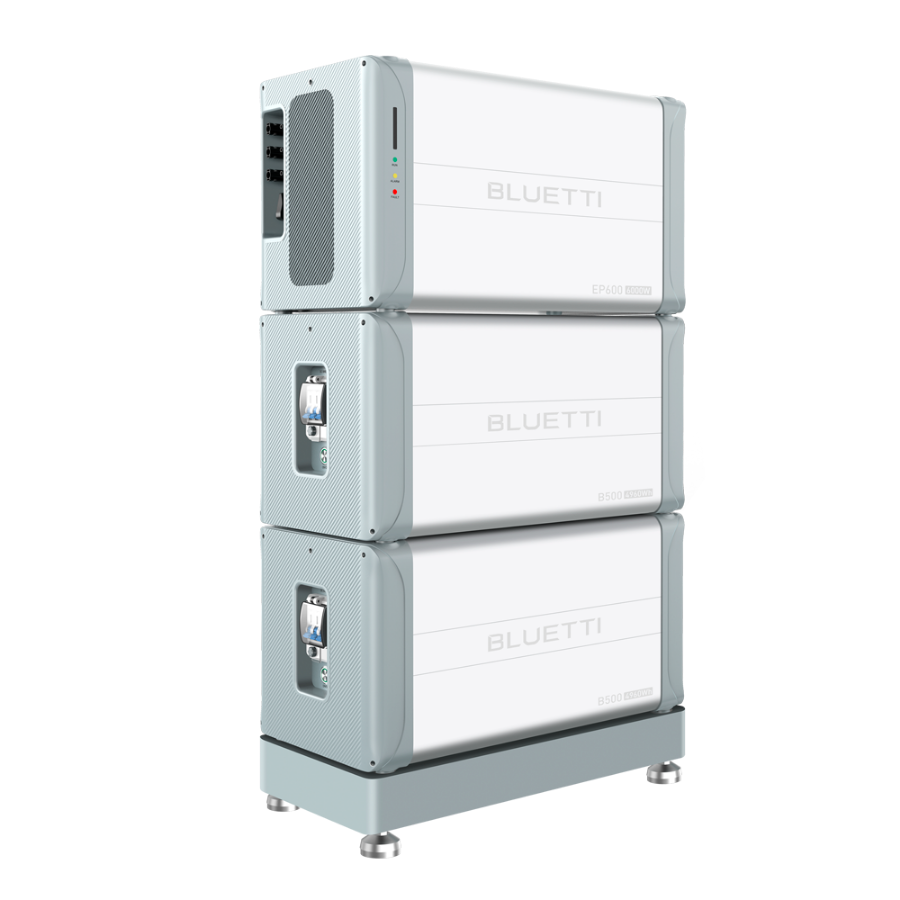

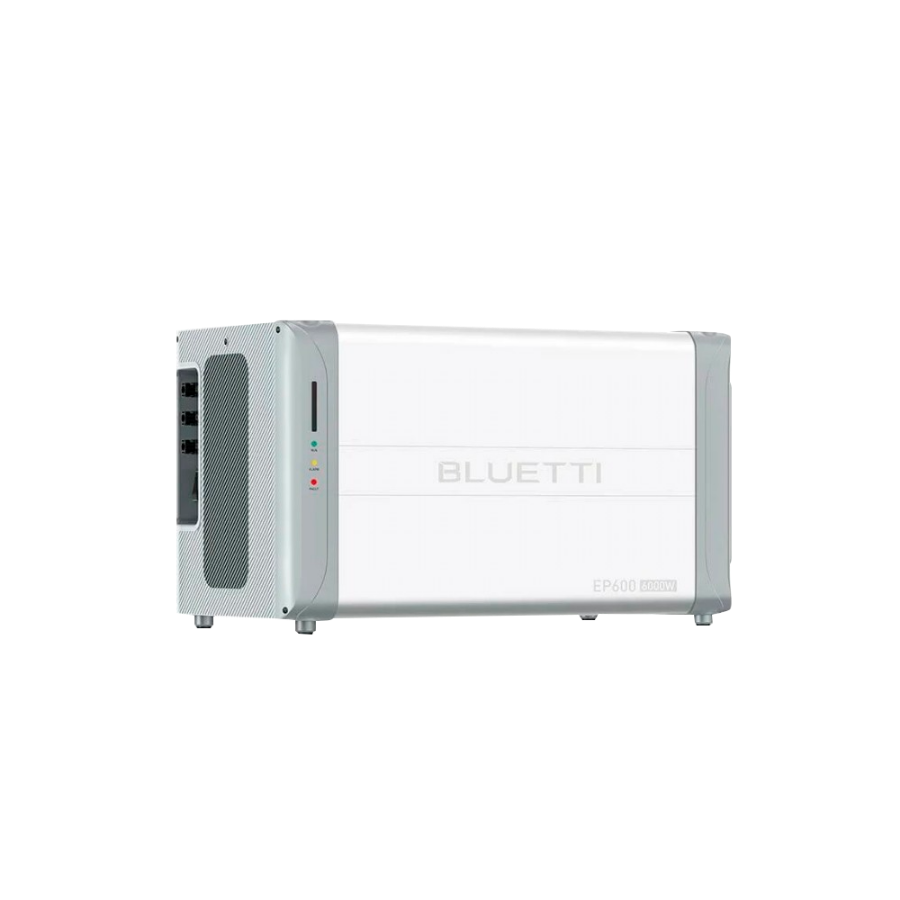

The Bluetti system consisting of the inverter EP600 and the battery B500 provides a three-phase hybrid solution and uses surplus solar energy to store energy and use it when needed.
It is a versatile system since it can be used in three-phase systems connected to the grid, isolated and in AC coupling with any inverter on the market.
