| Number of channels | 1 channel |
| Power | Not required (Passive) |
| Video Input/Output | BNC (male) |
| Resolution | 4K, 4Mpx, 3Mpx, 1080p, 720p |
| Transmission distance for TVI | 720p - 250 m1080p - 250 m 3 Mpx - 200 m4 Mpx - 150 m4K - 150 m |
| Transmission distance for CVI | 720p - 450 m1080p - 250 m3 Mpx - 200 m4 Mpx - 150 m4K - 150 m |
| Transmission distance for AHD | 720p - 350 m1080p - 200 m3 Mpx - 200 m4 Mpx - 150 m4K - 150 m |
| Twisted pair connector | Two pin connector |
| Dimension | 60 mm (H) x 50 mm (W) x 90 mm (D) |
| Weight | 43 g (each transceiver) |

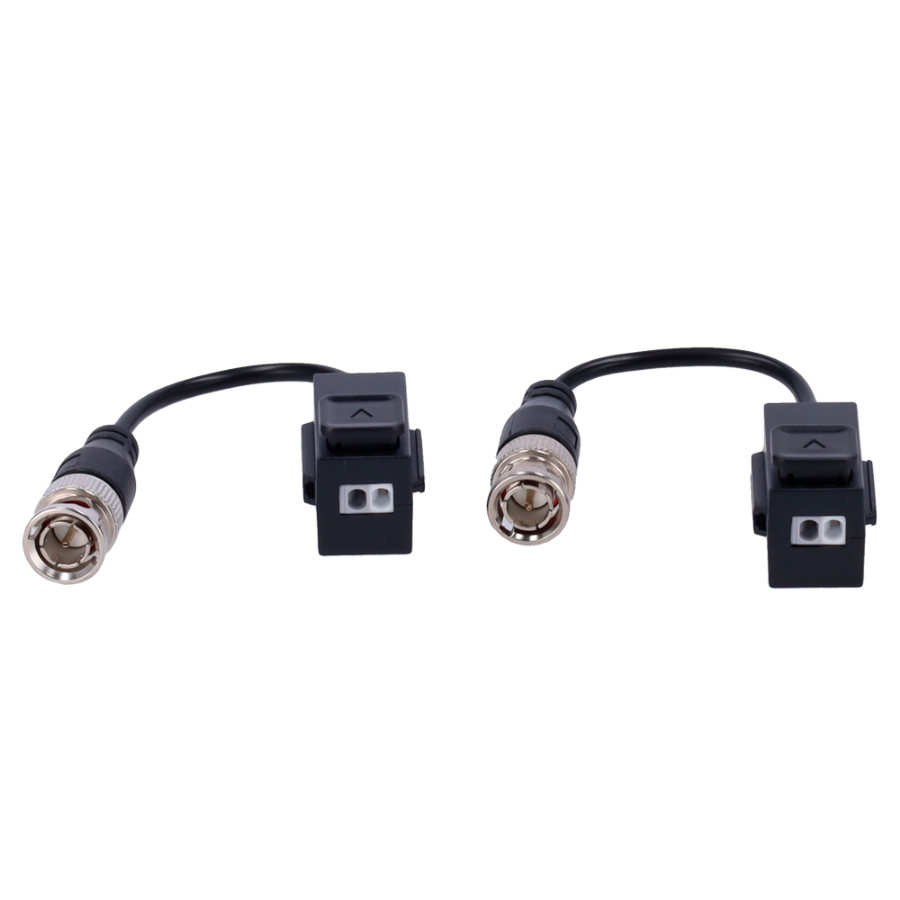

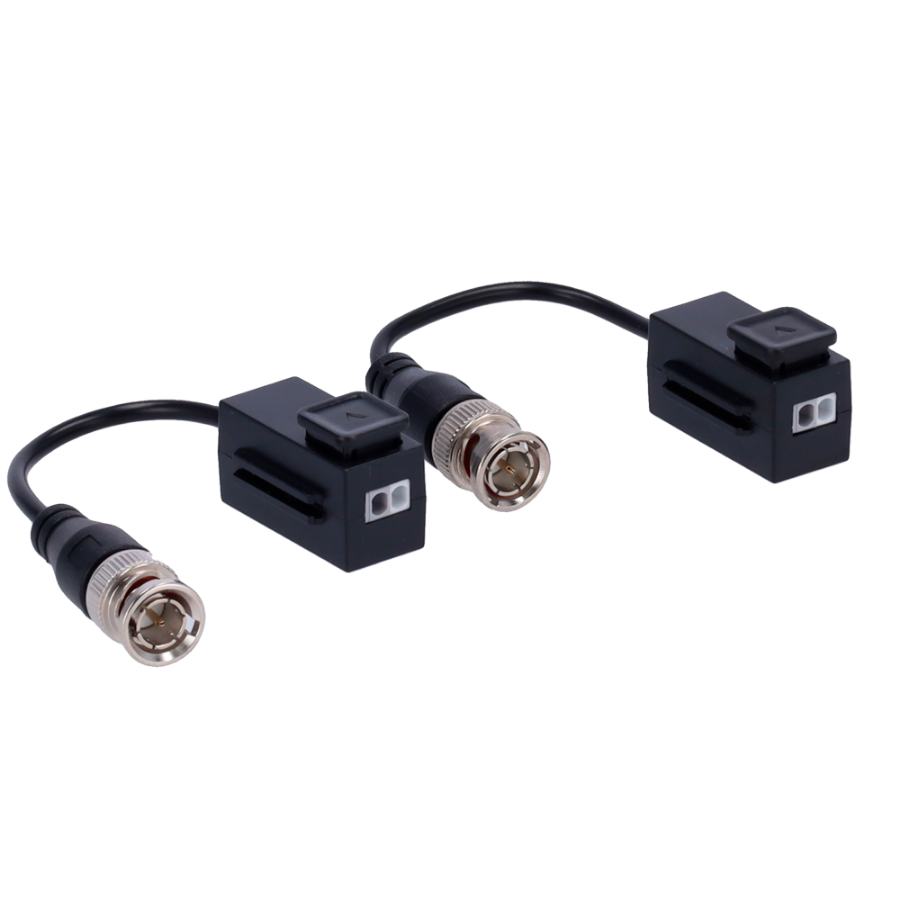

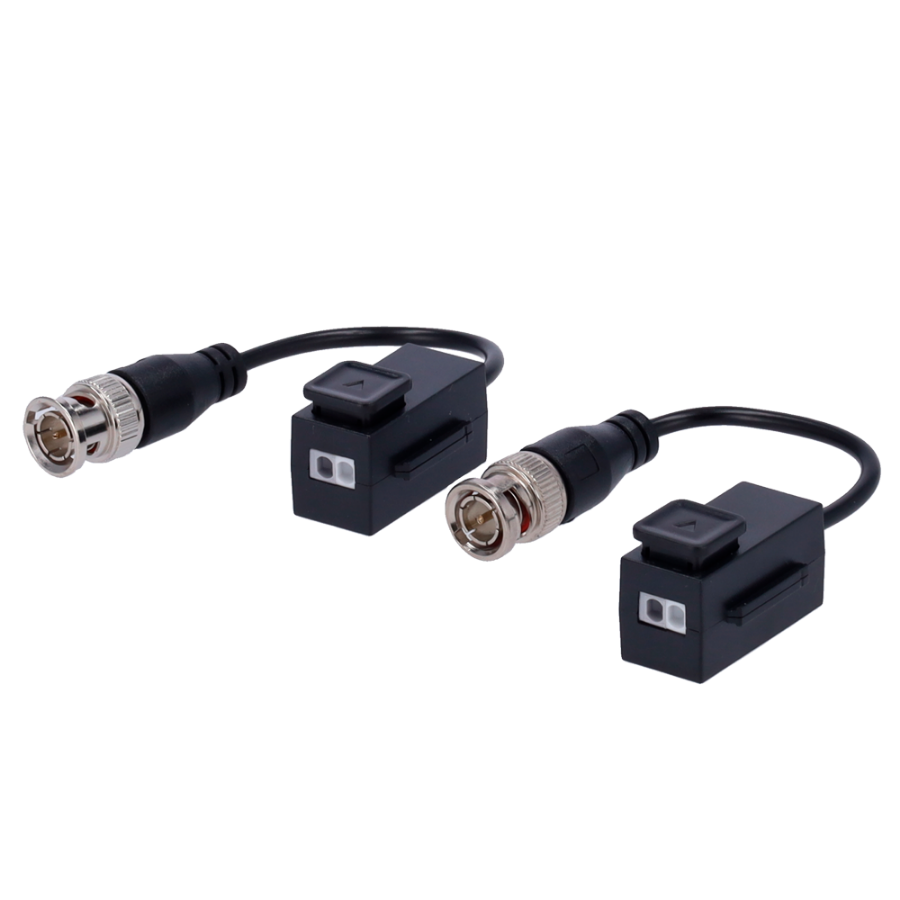

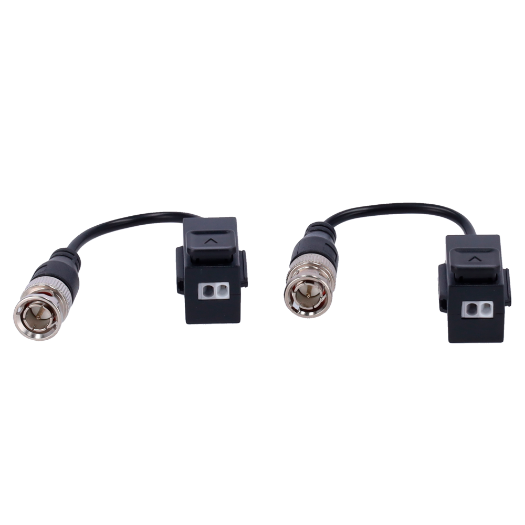

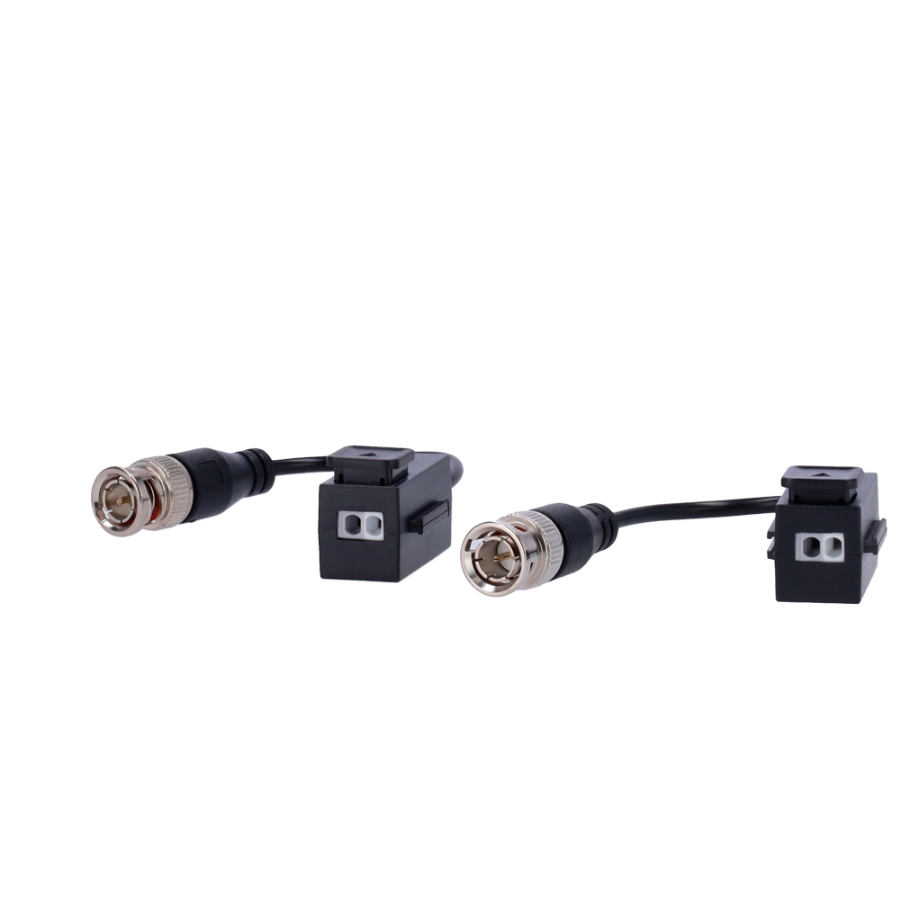

Passive twisted pair video transceiver from Safire, 2 units for transmission and reception, specific for high definition analog (HD).
Optimized for the transmission of the video signal from 1 HDTVI, HDCVI, AHD or CVBS camera via twisted pair. It has male BNC connector and cable insertion terminal with Splicing Button, two-pin connector.
The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used. In the specifications tab you can consult the distance values depending on the resolution and technology.
