BA614P-HAC Video Balun for HDTVI / HDCVI / AHD / CVBS 4 passive channels

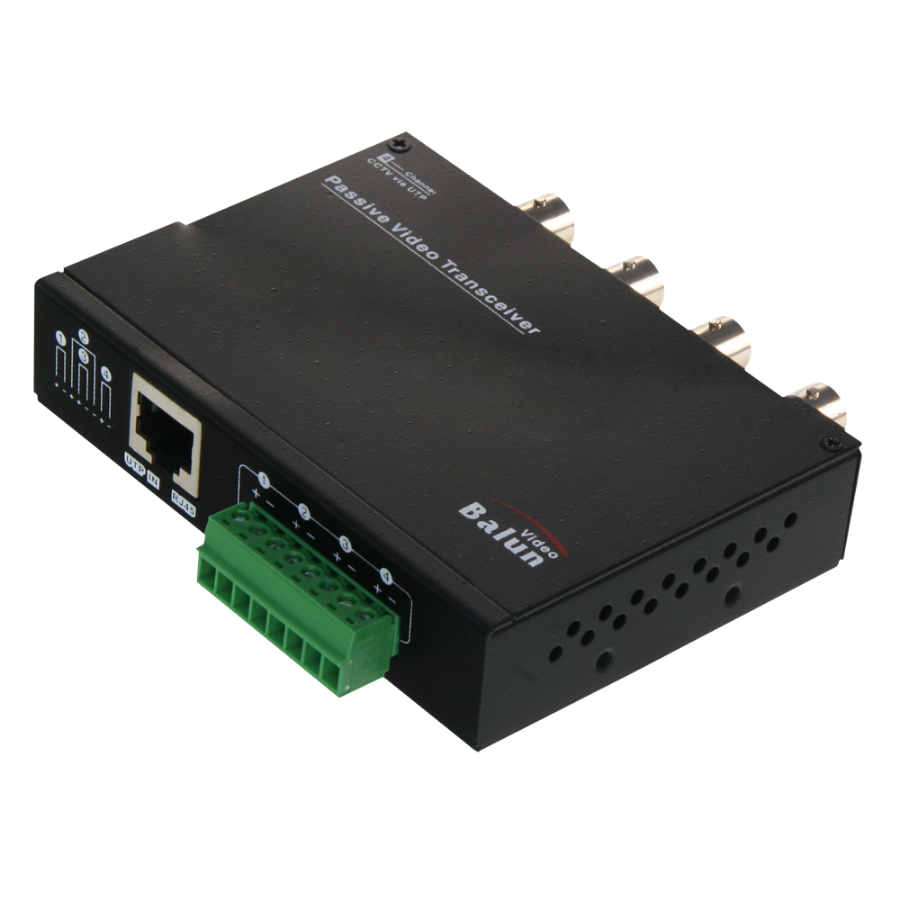

Passive video transceiver by twisted pair of 4 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.

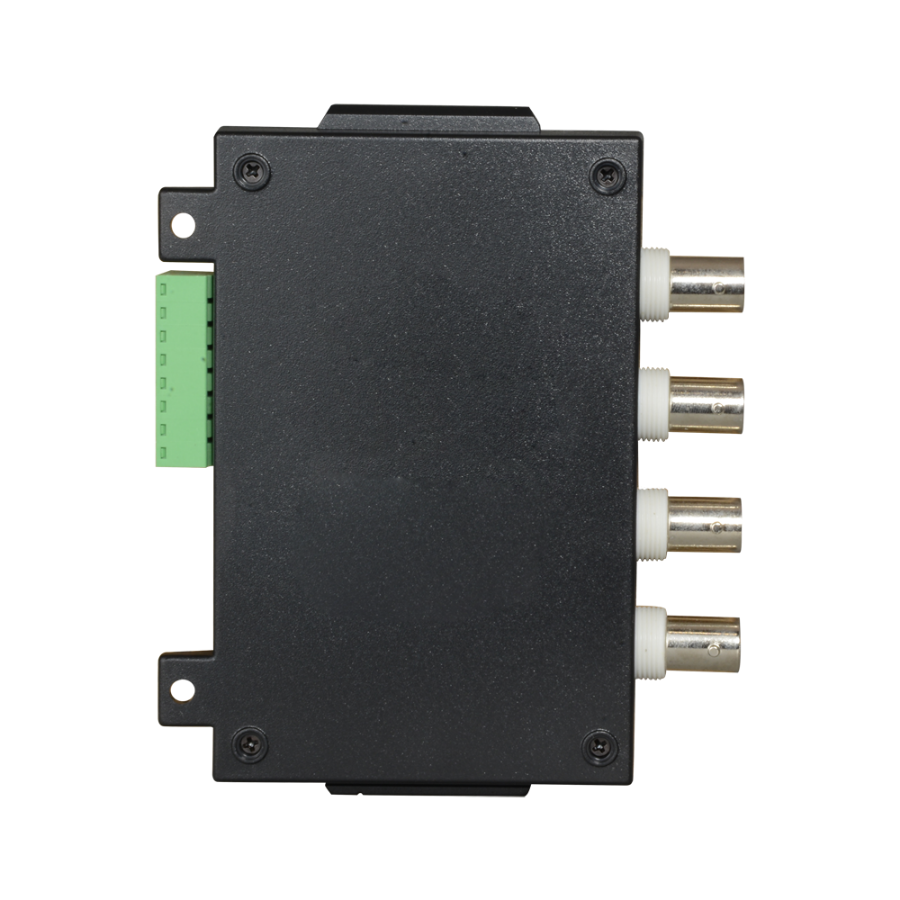

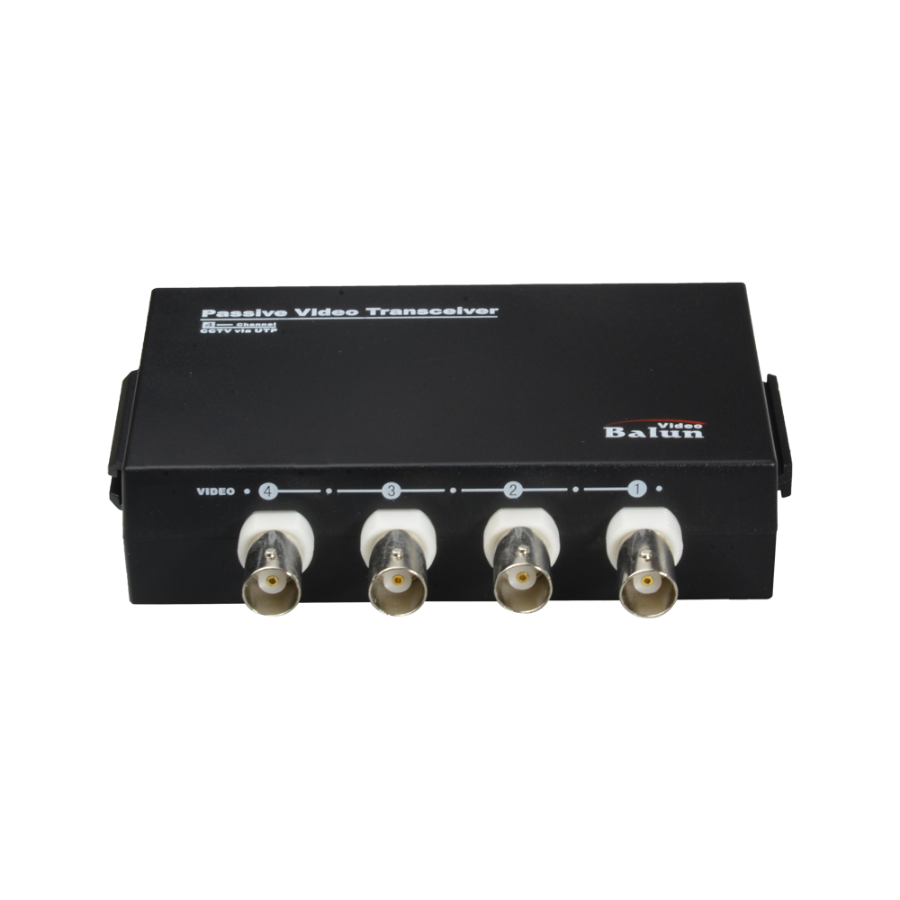

The adapter has 4 BNC connectors for connecting to a DVR. Includes 4 individual baluns BA612P-HAC to connect the cameras.

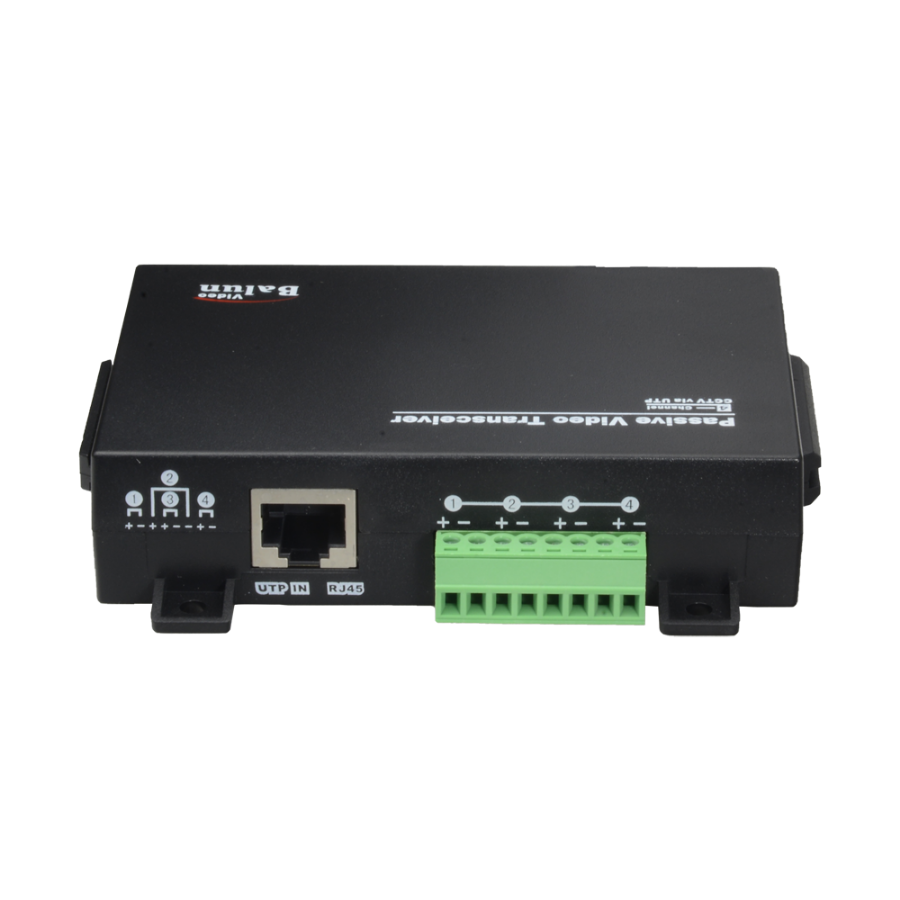

It also has a connector for UTP cable, which works with RJ45 or with clamps for 4 contacts +/-, for a wired cable connection.

The maximum length between the end that connects to the camera and the end that connects to the video output is :

• HDTVI 720p - 200 m
• HDTVI 1080p - 300 m
• HDCVI 720p - 400 m
• HDCVI 1080p - 200 m
• AHD 720p - 300 m
• AHD 1080p - 300 m
• AHD 4 MP - 300 m
• HDTVI 4 MP 100 m
• HDCVI 4 MP 200 m
• HDTVI 4K 100 m
• HDCVI 4K 200 m

Rack mount possibility 19".
