| Range | 5Mpx ULTRA |
| Image sensor | 1/2.8" Sony© Starvis 5.69 Mpx |
| DSP | FH8556 |
| Resolution | Default: 4Mpx@25FPS (HDTVI, HDCVI, AHD)Optional via menu: 5Mpx@20FPS(HDTVI, AHD) |

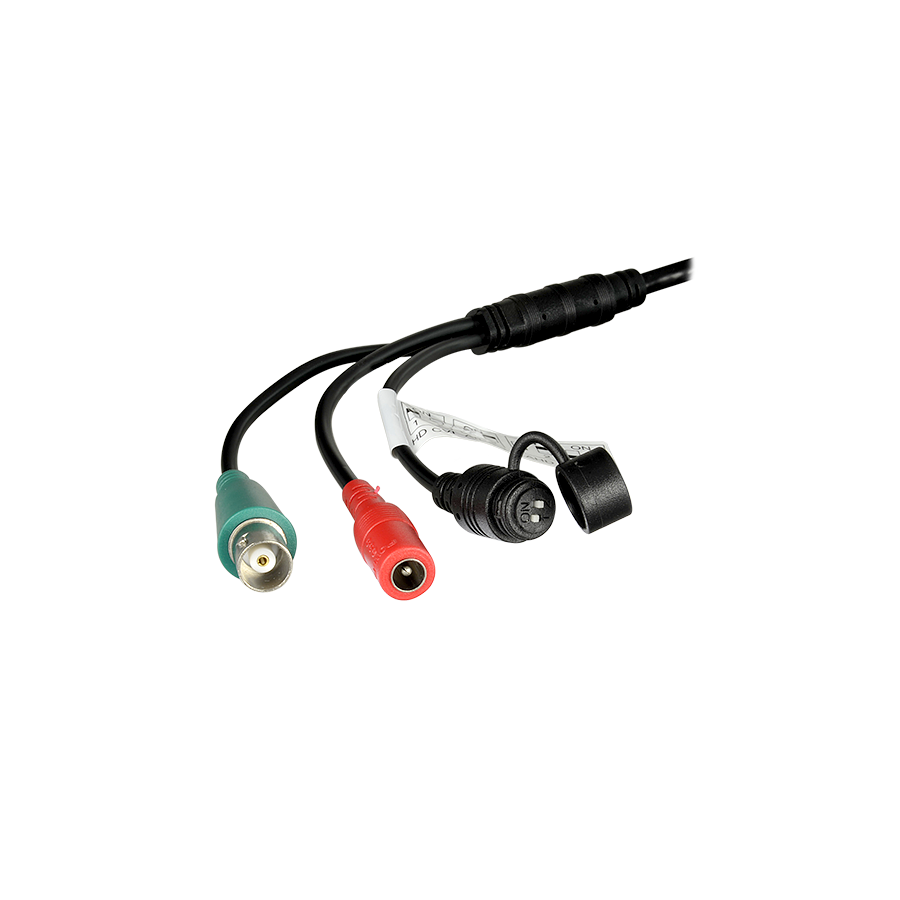

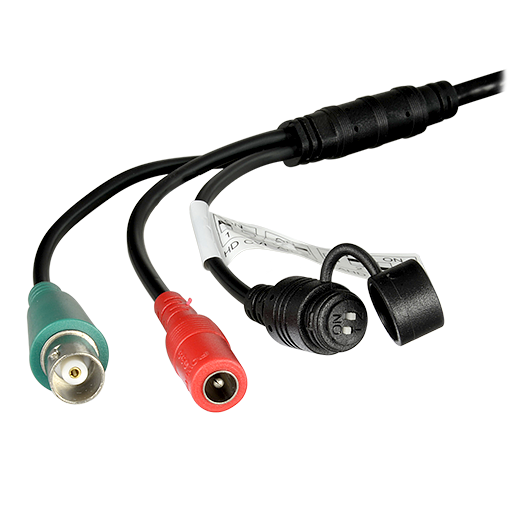

| Video output | 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS |
| Minimum illumination | 0 Lux / LEDs Array IR (80 m) |
| Basic functions | OSD menu, Day/Night with IR-CUT (ICR) |
| Configurable OSD functions | WDR 100dB, BLC, 3D-NR, AE, ATW, AWB, AGC |

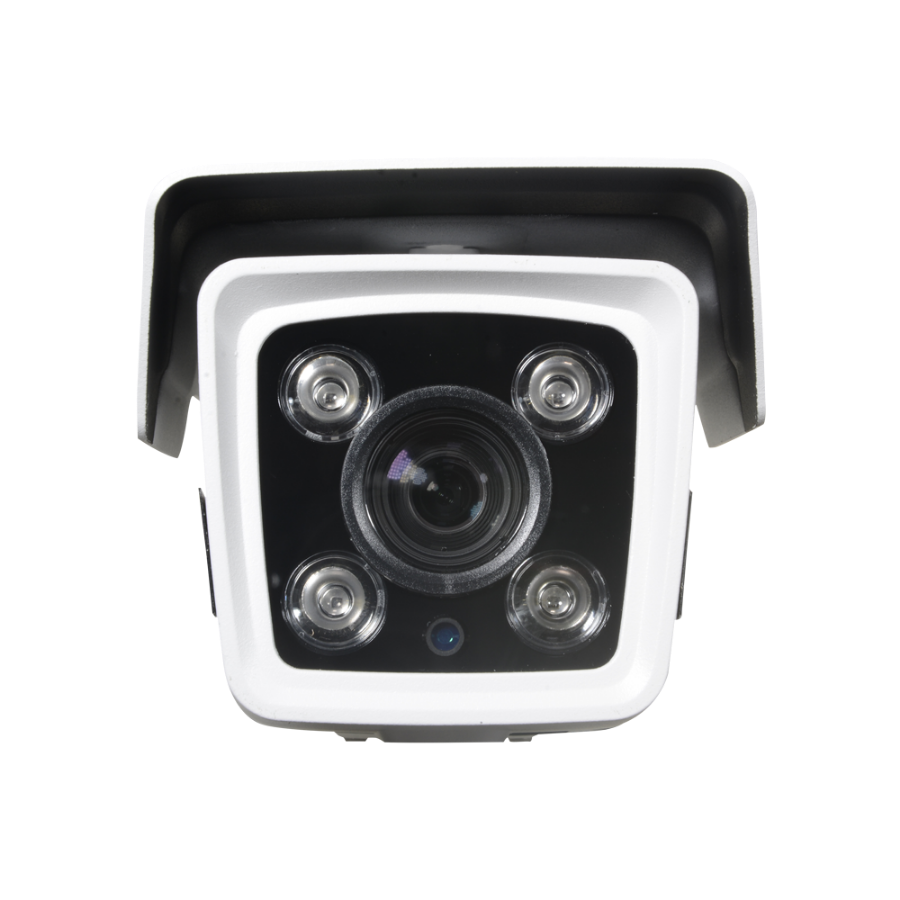

| Lens | 5~50 mm Motorised Lens |
| Power | DC 12 V / 1000 mA max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10o C ~ +60o C |
| Dimensions | 318.7 (D) x 104 (H) x 108 (W) mm |
| Weight | 1050 g |
