| Range | ECO |
| Image sensor | 3K 1/3" CMOS (5Mpx 16:9) |
| Maximum resolution | 3K (2880x1620) to 20 fps |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps)CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps)AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps)CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Viewing Angle (FOV) | 60o (H) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |

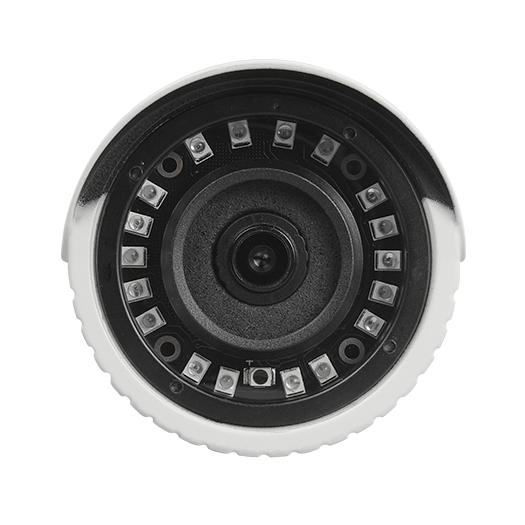

| Infrared lighting | 0 Lux / IR Matrix LEDs (range 20 m) |
| Day / Night | Auto / Color / BW (black and white) |

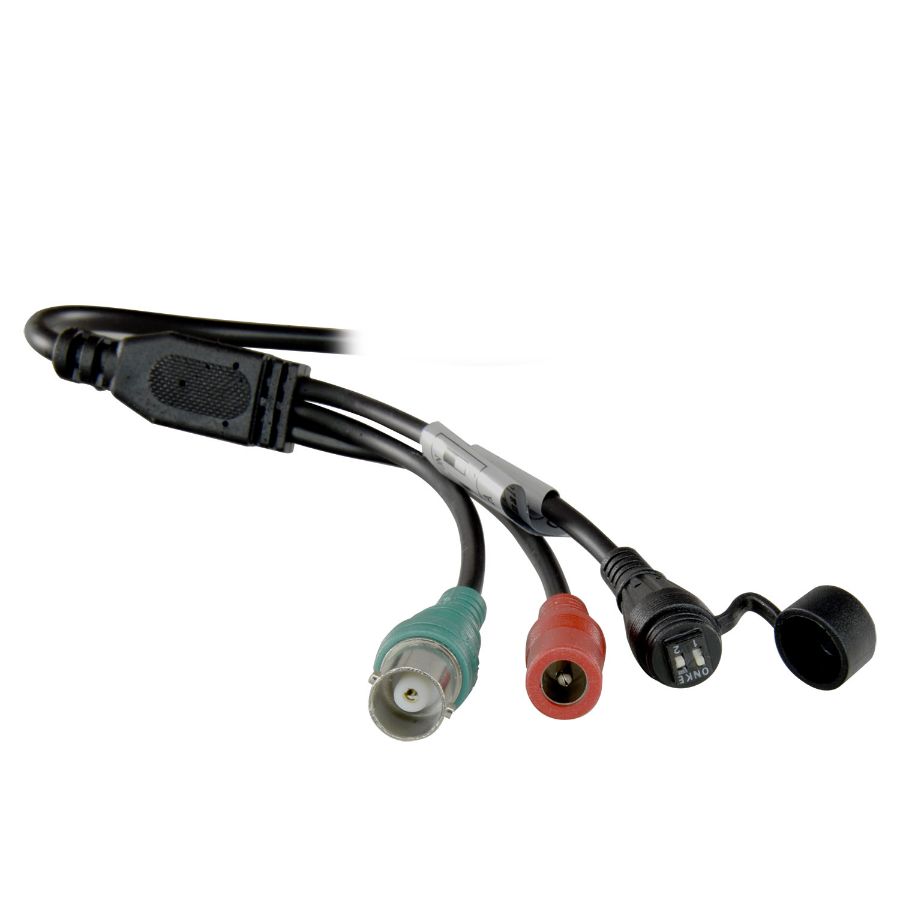

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | Does not have |
| Audio | Does not have |
| Power | DC 12 V / 400 mA, 4.8 W max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10o C ~ +55o C |
| Material | Metal and plastic |
| Dimensions | 170 (D) x 60 (O) mm |

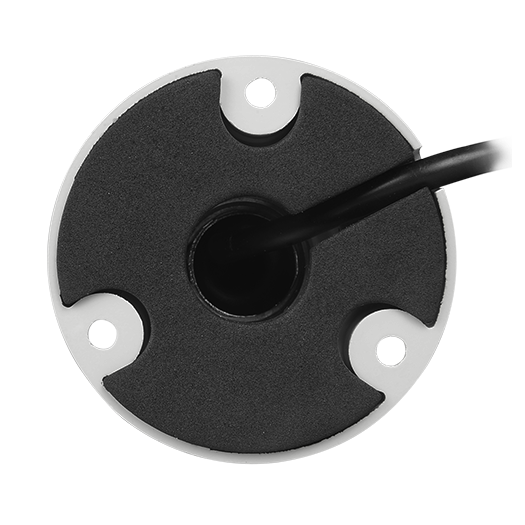

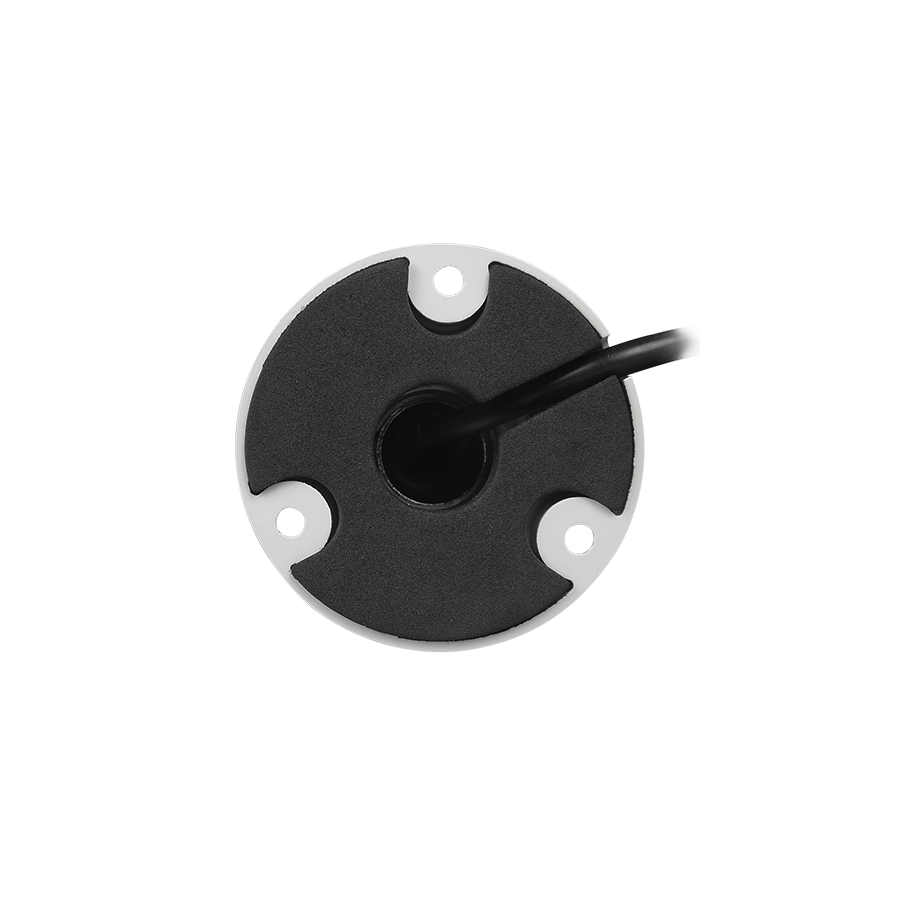

| Base diameter | 52 (O) mm / 3 screws |
| Weight | 300 g |
