| Brand | AMC |
| Technology | PIR and microwave sensor |
| Detection operation | AND (IR and microwaves) / OR (IR or microwaves) |
| Security grade | Grade 2 |

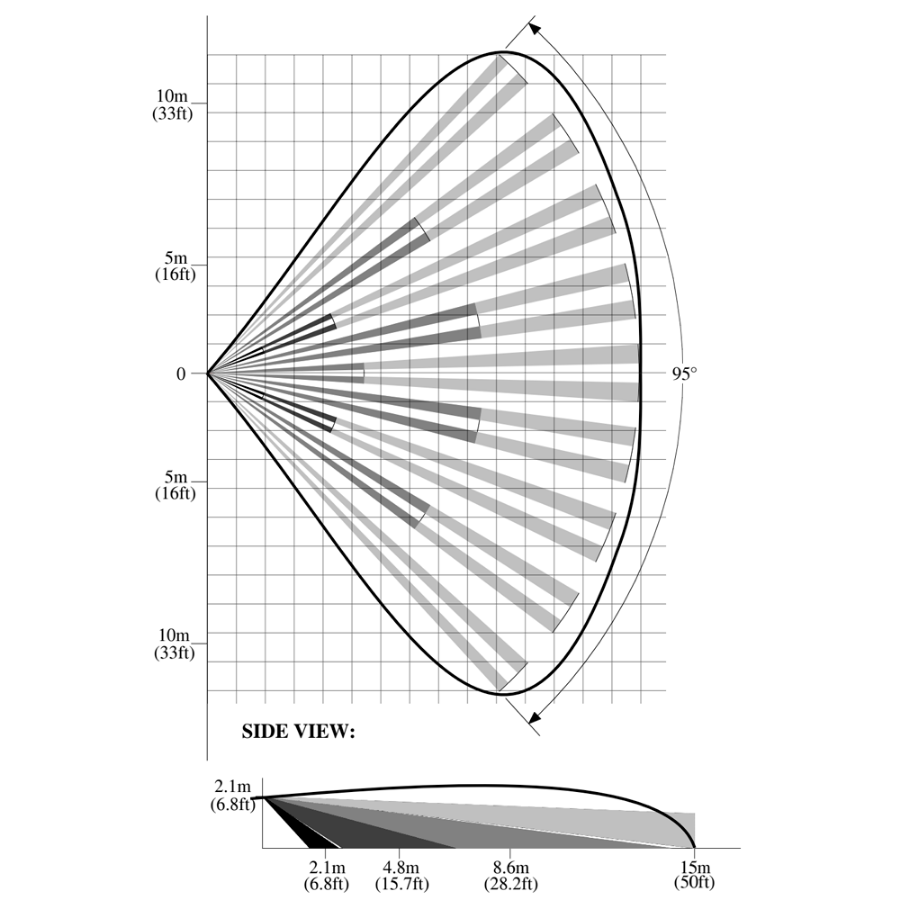

| Detection range | 15 m / 100o H |
| Pet immunity | ?15 Kg |
| Installation height | From 1.8 to 2.2 m |
| Anti-masking | Not available |
| Microwave sensor | 9.3 - 9.9 - 10.5 GHz |
| Detection test | AvailablePIR (flashing green led)Microwave (blinking yellow led) |
| Self-test | Not available |

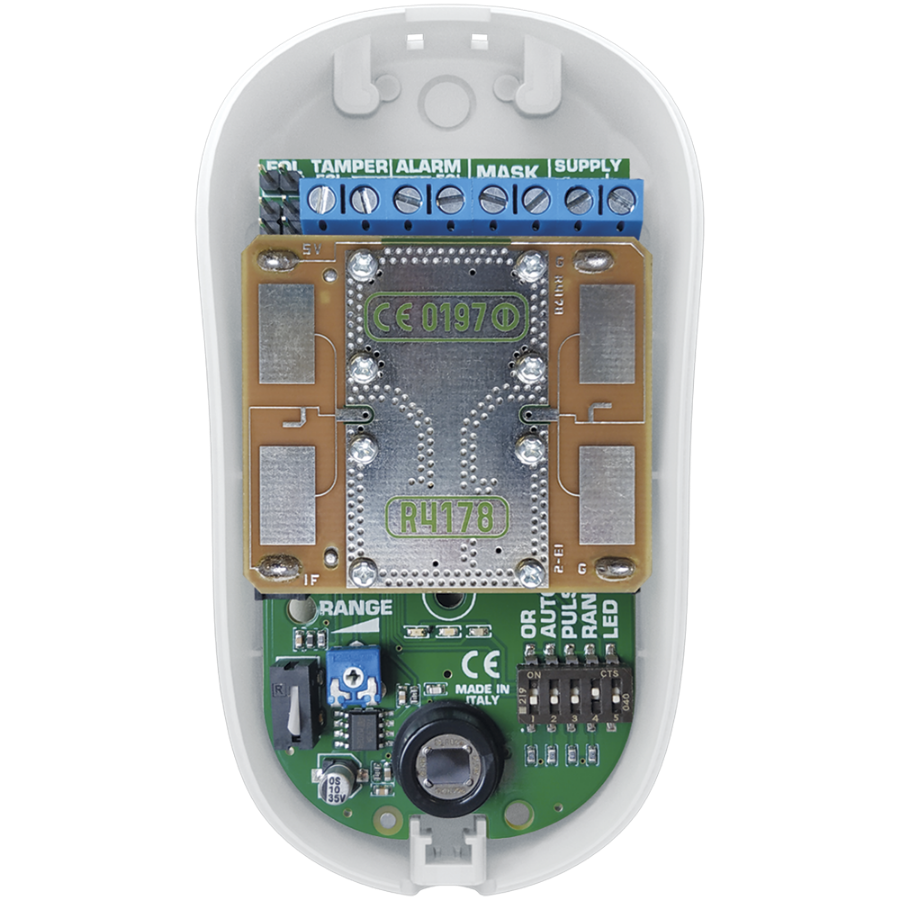

| DIP Switch configuration | 1 - LED (On/Off)2 - Range: Off=15 m / On=7 m3 - Sensitivity: Off=1 pulse / On=2 pulses 4 y 5 - OFF-OFF = AND / ON-OFF=OR / ON-ON=AUTO OR |
| Microwave sensitivity | Adjustable (potentiometer) |
| LEDs indication | Alarm (blue), PIR Alarm (green), Microwave Alarm (yellow) |

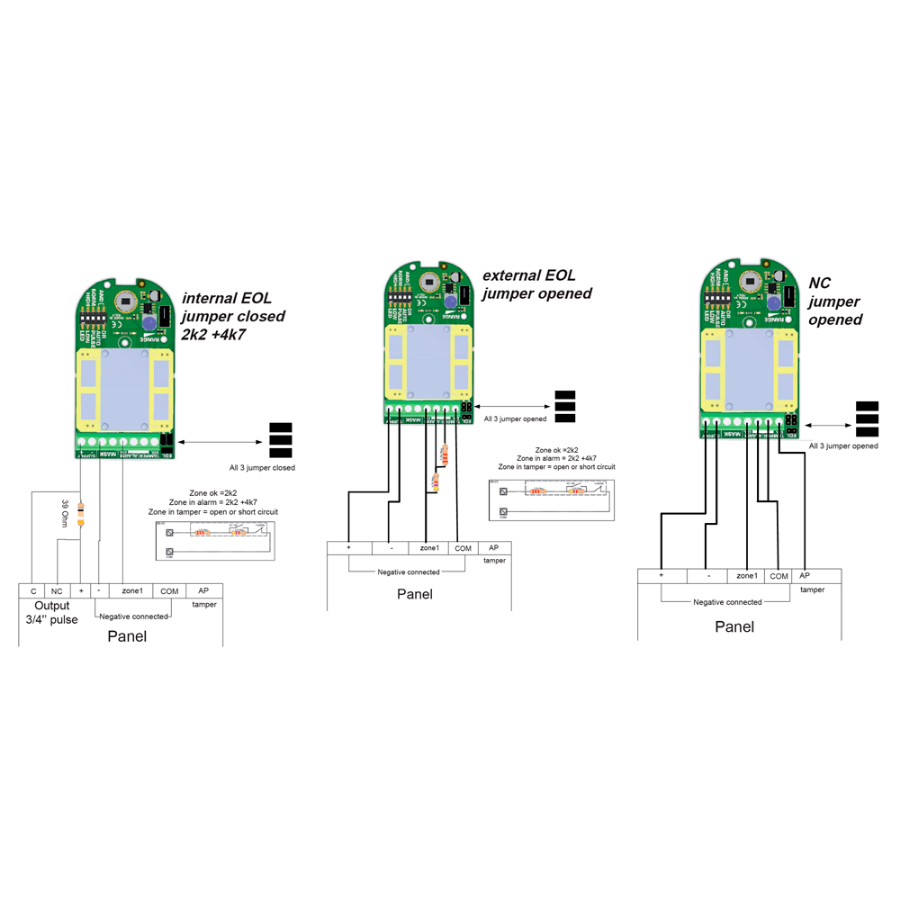

| Connection mode | End-of-line resistors: 2EOL |
| End-of-line resistor values | With the 3 jumpers:Rest 2k2Alarm 2k2+4k7Tamper open circuit |
| Installation | Surface mounting or wall mounting AM-SN1 |
| Power | 9~15 VDC / 27 mA |
| Temp. operation | -10o C ~ 40o C |
| Dimensions (without bracket) | 114 (H) x 63 (W) x 40 (D) mm |
| Colour | White |
