| Brand | AkuvoxAkubela range |
| Model | PG71-POE-EU |
| Operating system | Android 10.0 |
| Hardware | RAM: 2 GB | ROM: 16 GB |
| Camera | 5 Mpx CMOS with privacy curtain |
| LCD | 8" TFT 1280 x 800 |
| Operation mode | Capacitive touch panel |
| Inputs | 1 x RS485 |
| Outputs | Does not have |
| Sensors | Proximity, light, temperature and humidity |
| Functions | Search and management of home automation devicesIntelligent scene management and automationVideo door entry monitor |
| Audio | Two-way audio with dual microphone and noise-reduction speaker with Crystal Clear Audio technology |
| Remote access | Configuration through WEB browserBela Home mobile application (scenes and automations) or SmarPlus (intercommunication)Remote access by Cloud: Included |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Network interface | Ethernet 10/100 BaseT / WiFi 802.11b/g/n / Bluetooth 4.2 / ZigBee 3.0 |

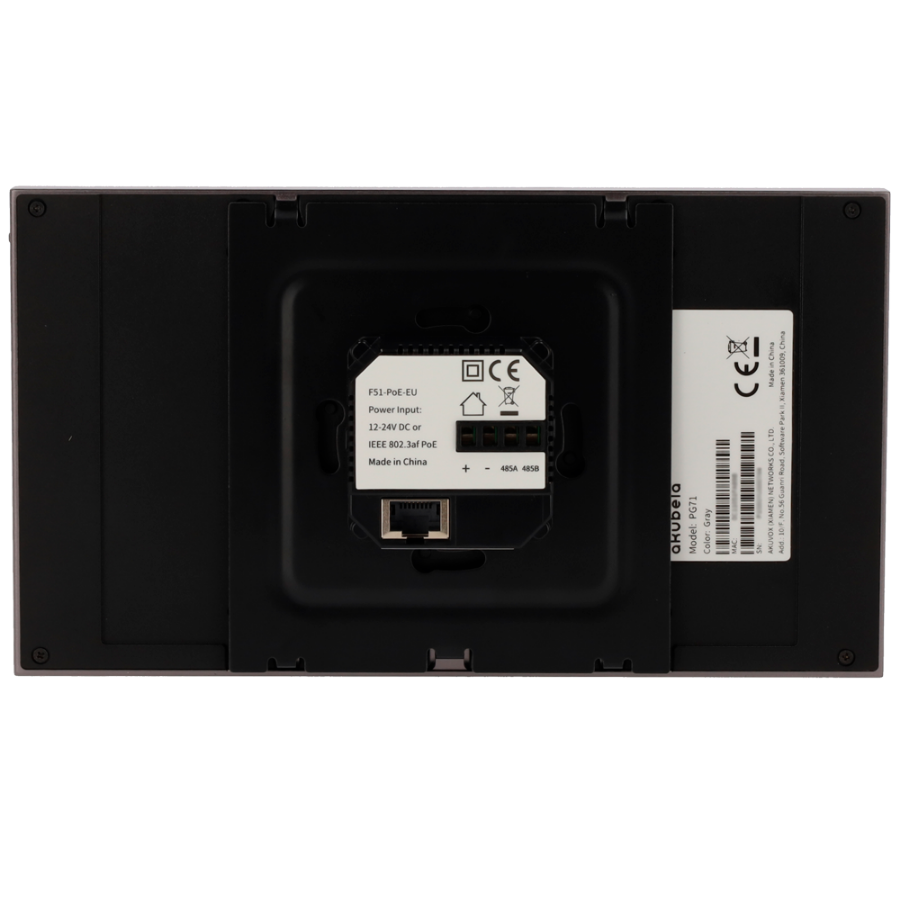

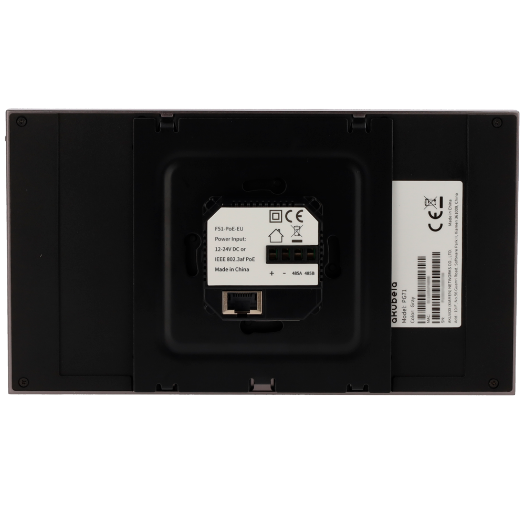

| Power | DC 12-24 V / 600 mA máx.Standard PoE (IEEE802.3af) |
| Temp. operation | -10 oC ~ +50 oC |
| Dimensions | 214 (W) x 120 (H) x 46.7 (D) mm |
| Weight | 600 g |

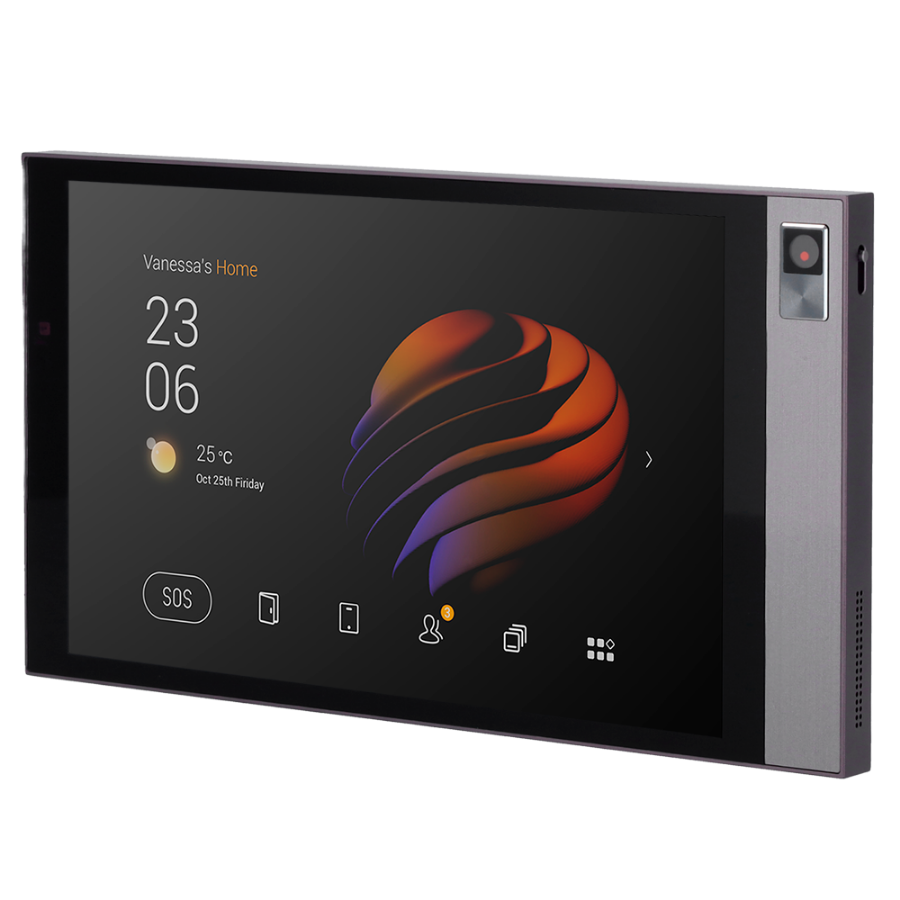

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.

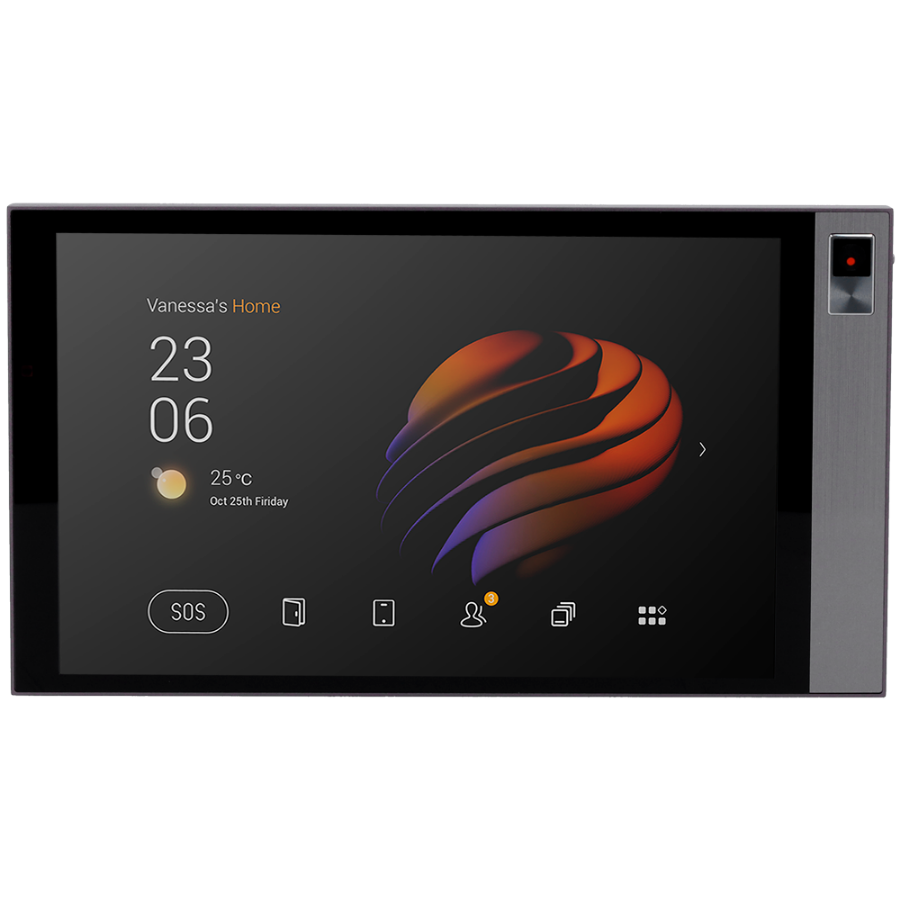

This model has a 8" touch screen for easy operation by the user. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Advanced configurable functions: integrated camera (allows video calls), standard SIP protocol 2.0 (allows integration with third-party PBXs), Bluetooth connection (allows pairing headphones or speakers for use during calls) and ZigBee connection (allows adding SmartHome equipment).

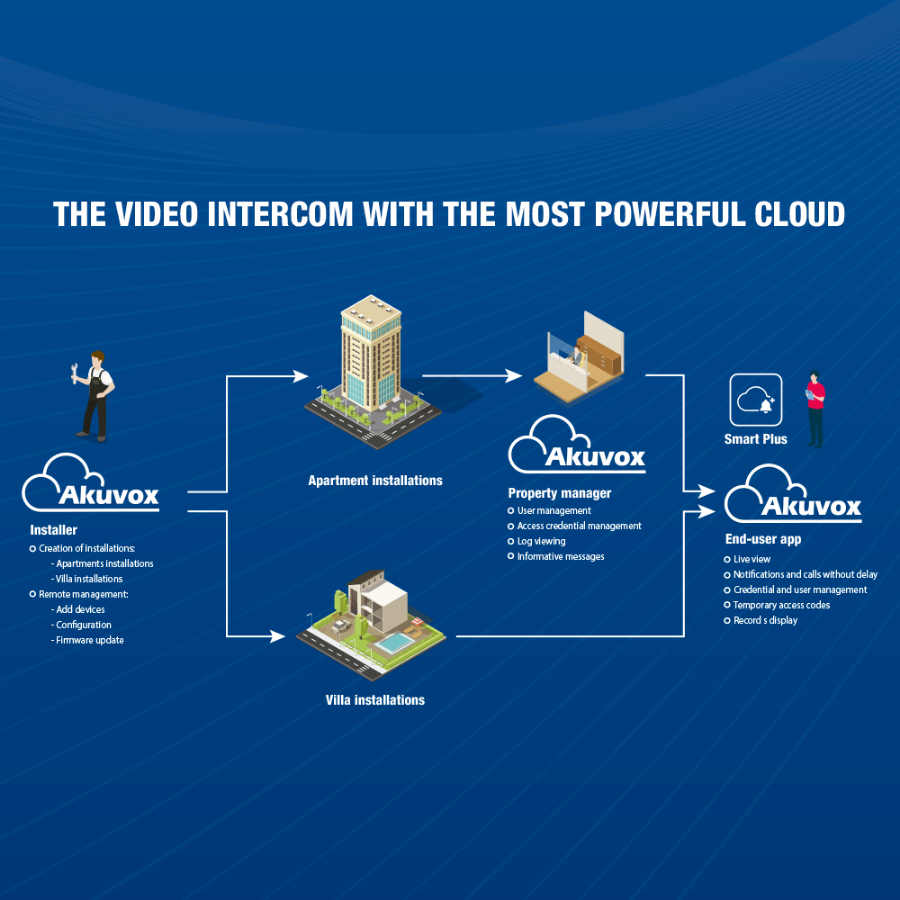

From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus or Bela Home mobile application, the end user can receive calls, open the door or view the panel camera live, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
