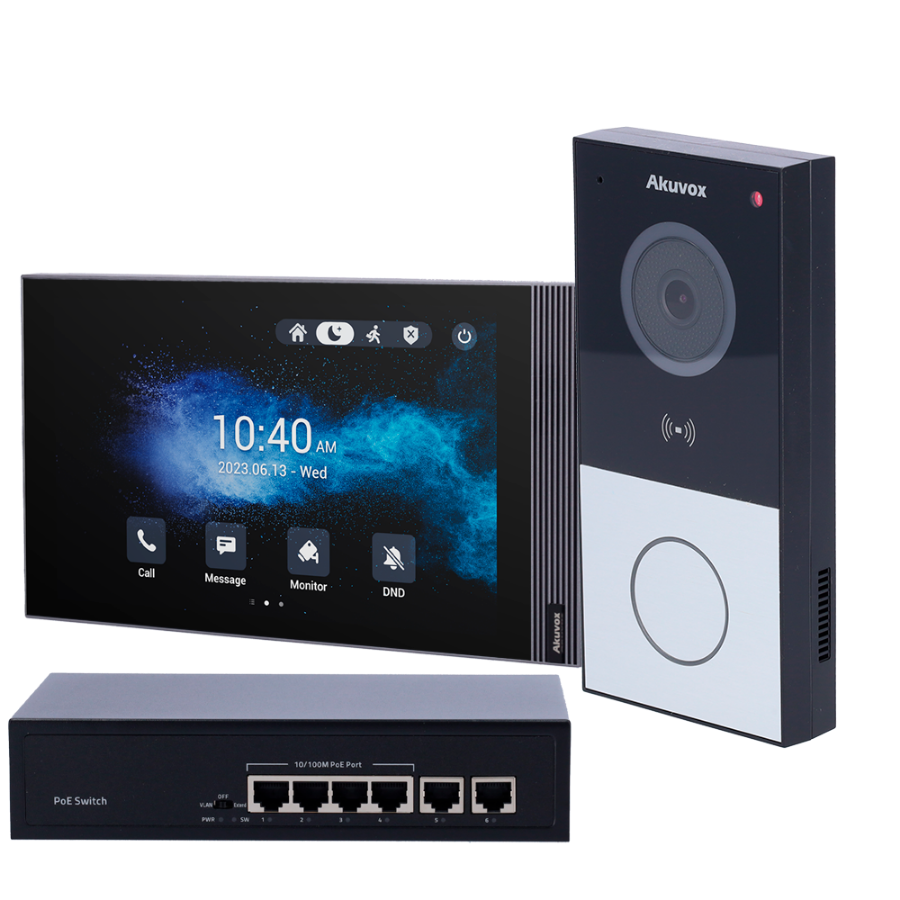

| Brand | Akuvox |

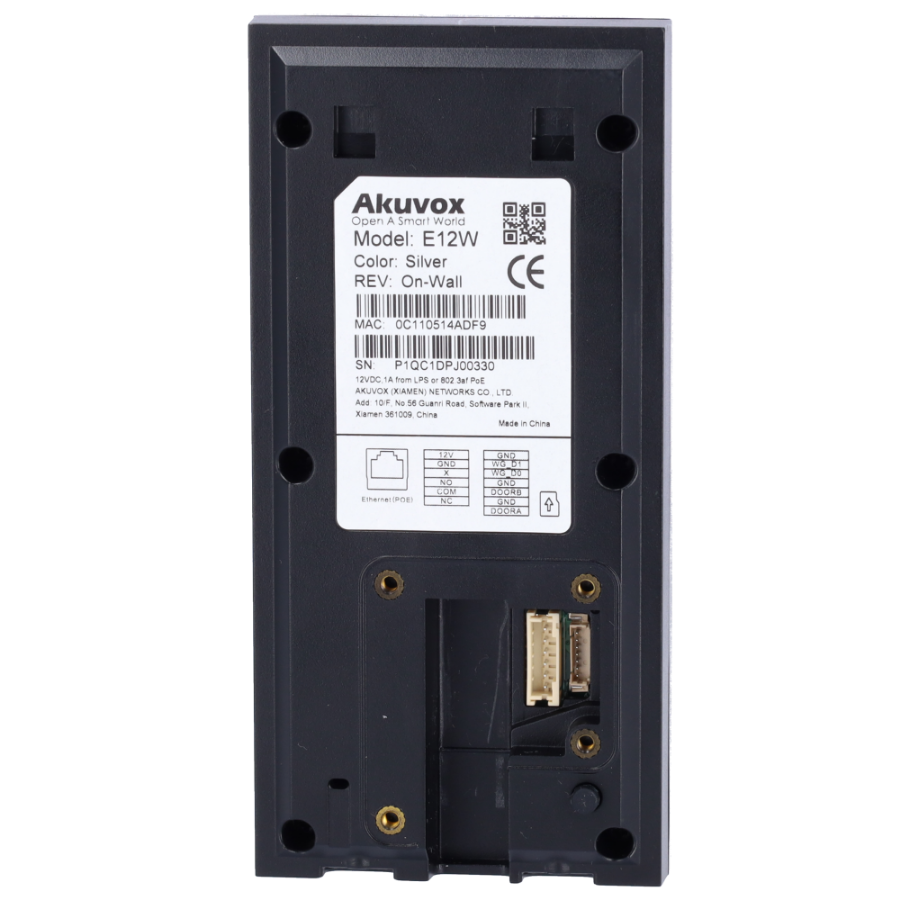

| Model | E12W |
| Access control | Door opening with MF card 13.56 MHz, NFC and Bluetooth, with records |
| Capacity | Contacts: 1.000RFID users: 5.000 card(s) |
| Keypad | Mechanical call button with configurable LED illumination |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x output pushbutton and 1 x Wiegand IN |

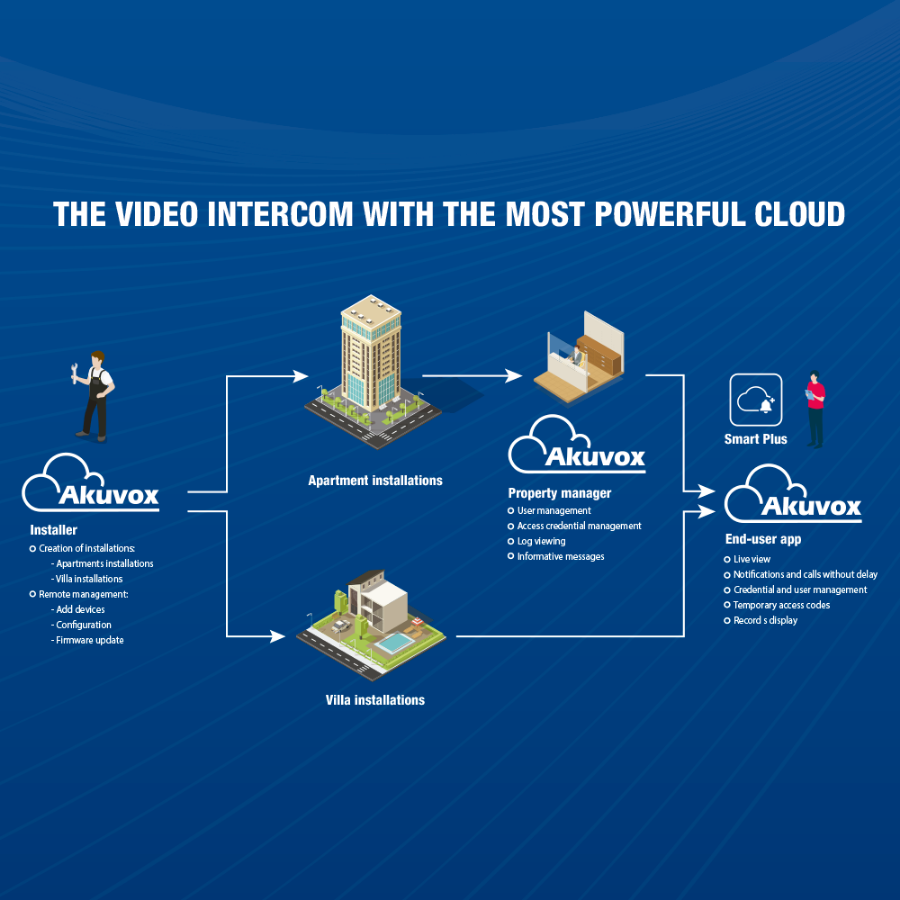

| Remote access | SmartPlus cell phone application or configuration via WEB browserRemote access by Cloud: Included |
| Image sensor | 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor |
| Viewing angle | 123° (H) / 69° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 y H.265 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711µ, G.729, G.722DTMF (RFC2833), SIP Info |
| Memory | MicroSD slot up to 32 GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Plastic |
| Degree of protection | IP65 |
| Temp. operation | -40 oC ~ +55 oC |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Weight | 600 g |
| Range | EasyAccess |

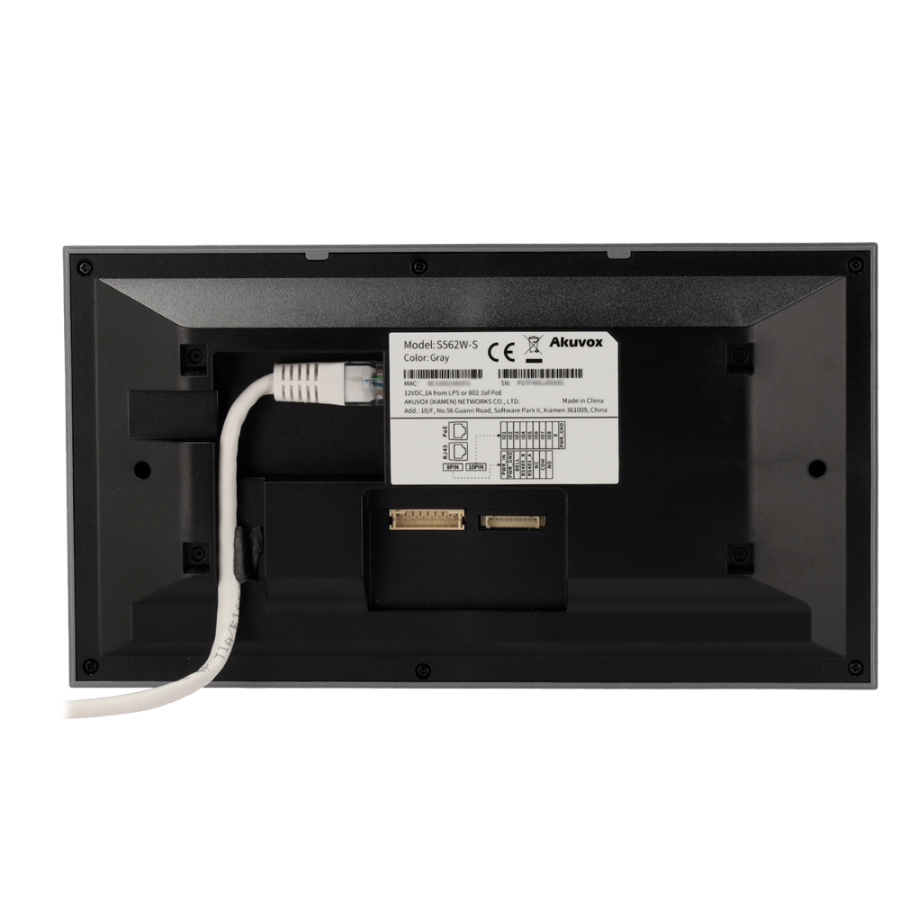

| Model | S562W-S |
| Operating system | LINUX OS |
| Hardware | RAM: 128 MB | ROM: 128 MB |
| LCD | 7" TFT 1024 x 600 |
| Capacity | Contacts: 500Messages: 100Call records: 100 |
| Operation mode | Capacitive touch panel |
| Inputs | 8 x configurable alarm, 1 x buzzer and 1 x RS485 |
| Outputs | 1 x relay |
| Network interface | Ethernet 10/100 BaseT / WiFi 802.11b/g/nRTSP / ONVIF |
| Power | DC 12 V / 600 mA máx.Standard PoE (IEEE802.3af) |
| Temp. operation | -10 oC ~ +45 oC |
| Dimensions | 216 (W) x 119 (H) x 22 (D) mm |

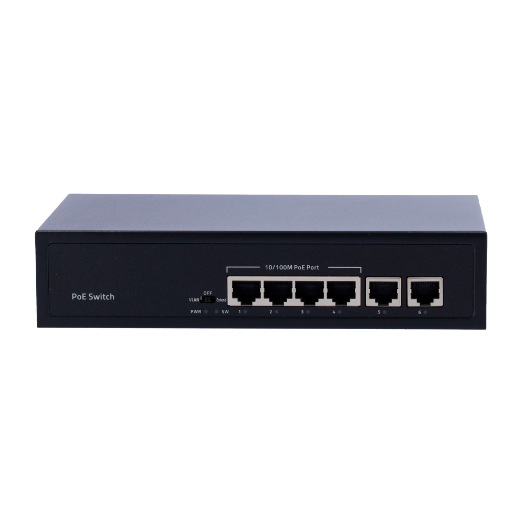

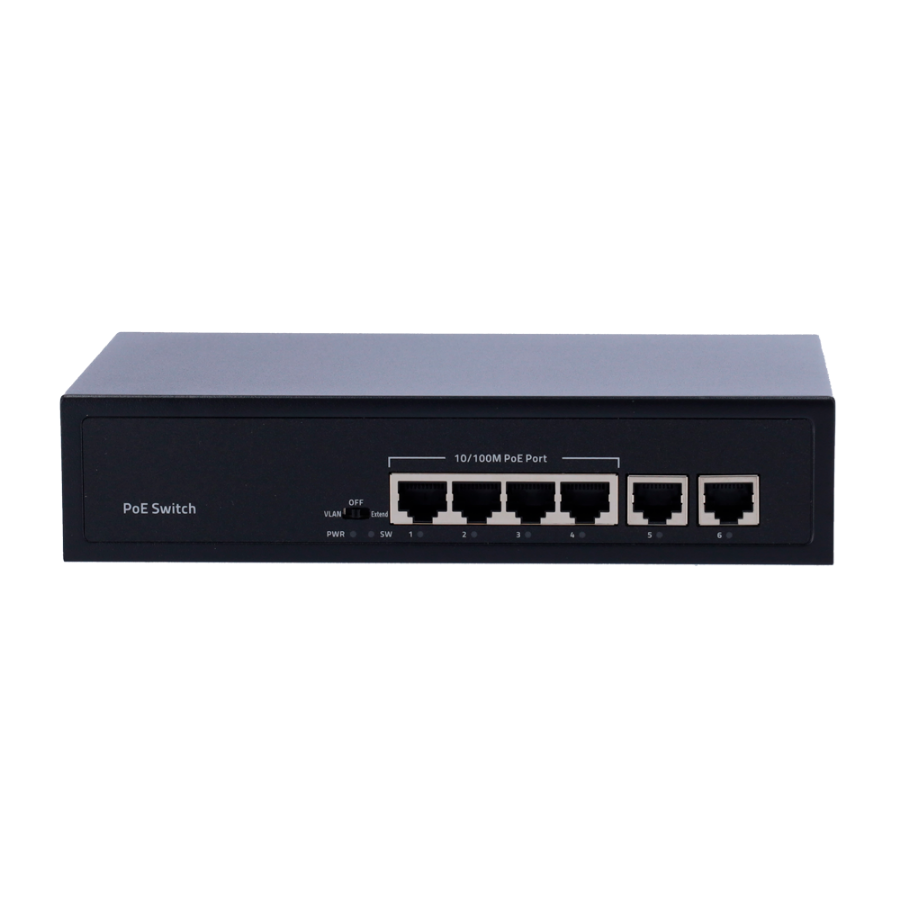

| Type | Unmanageable PoE switch |
| Interface | 6 mbps ports RJ45 10/100 |
| IEEE standards compliance 802.3 | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE characteristics | 4 ports 802.3af/at PoE+Up to 30 W per portTotal PoE power of 60 W |
| Functions | VLAN modeDefault modeExtended Mode |
| Packet Buffer | 768 Kbit |
| Bandwidth | 1.2 Gbps |
| Packet forwarding rate | 0.90 Mbps |
| MAC Table | 2K |
| Supported technologies | Auto-Negotiation / Auto MDI/MDIX mode |
| Power | DC 52 V / 1.52 A max., adapter-powered (AC 100-240 V, 50/60 Hz) |
| Maximum consumption | < 60 W |
| Operating temperature | 0 oC ~ + 40 oC |
| Dimensions | 200 (W) x 118 (H) x 44 (D) mm |
| Weight | 300 g |
