AK-KIT02-2

Linux video intercom kit
2 wires & WiFi | Board and monitor
Crystal Clear two-way audio
EM/MF and NFC reader
1 Relay output | Antivandalic
Connection via Cloud

Brand: AKUVOX

Šifra: AK-KIT02-2

GTIN: 6933964803513

542,00 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Brand	Akuvox

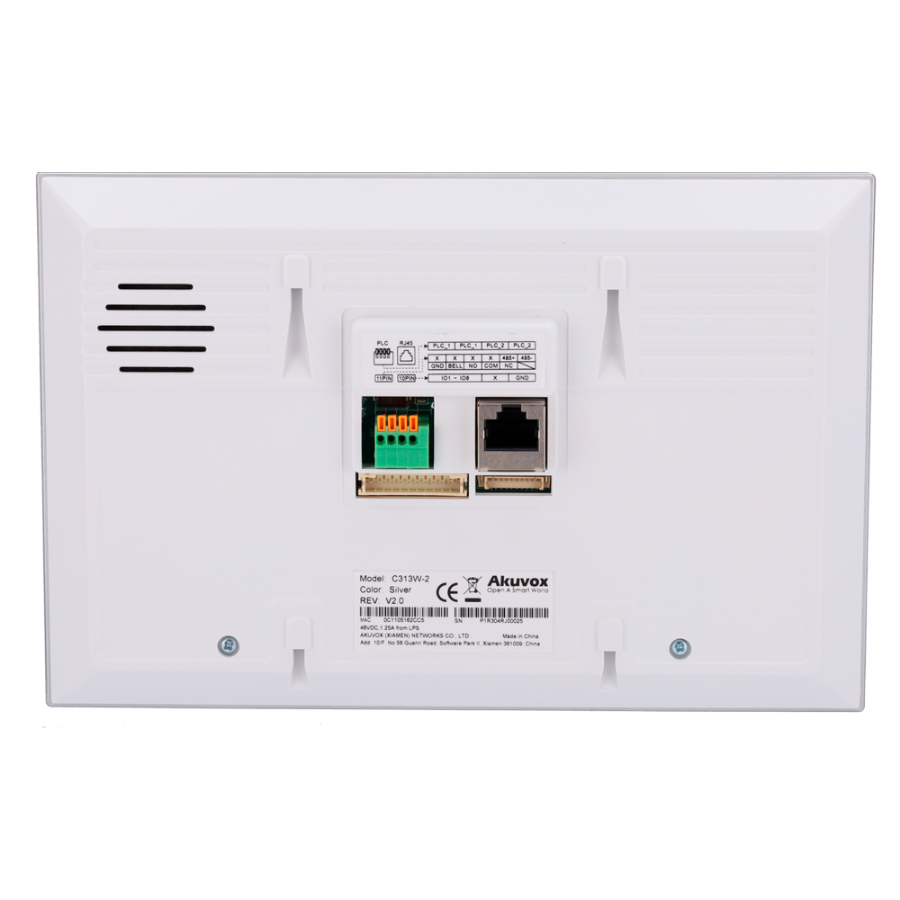

Model	C313W-2
Operating system	LINUX OS
Hardware	RAM: 64 MB \| ROM: 128 MB
LCD	7" TFT 800 x 480
Capacity	Contacts: 500Messages: 100Call records: 100
Operation mode	Capacitive touch panel
Inputs	8 x configurable alarm and 1 x buzzer
Outputs	1 x relay
Audio	Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Audio Format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711µ, G.729, G.722, DTMF (RFC2833), SIP Info
Remote access	SmartPlus cell phone application or configuration via WEB browserRemote access by Cloud: Included
Mode of operation	Local network and/or via cloud in different networks
Firmware updates	Remote with cloud via installer account or via web browser locally
Network interface	Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n
Ports of 2-hilos	2 port pairs: own power supply and power supply from external board or monitor
Power	DC 24 V / 48 V \| 600 mA max.
Temp. operation	-10 oC ~ +45 oC
Dimensions	200 (W) x 132 (H) x 27 (D) mm
Weight	600 g

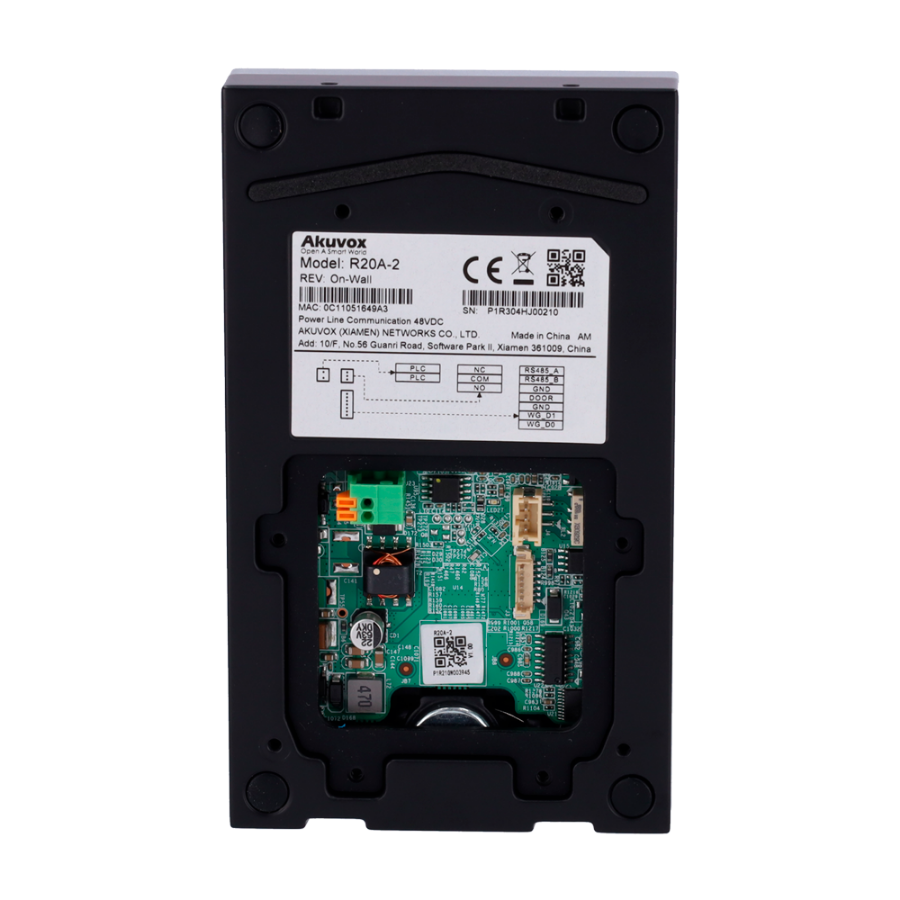

Model	R20A-2
Access control	Door opening with RFID card EM 125 kHz and MF 13.56 MHz and NFC, with records
Capacity	Contacts: 1.000RFID users: 5.000 card(s)
Keypad	Mechanical call button with configurable LED illumination
Outputs	1 x lock relay, 1 x Wiegand OUT and 1 x RS485
Inputs	1 x output pushbutton and 1 x Wiegand IN
Image sensor	1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor
Viewing angle	110° (H) / 58° (V)
Camera resolution	1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video encoding	H.264 y H.265
Audio Format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711µ, G.729, G.722, DTMF (RFC2833), SIP Info
Network interface	RS485 / RTSP
Material	Aluminium alloy
Degree of protection	IP65
Temp. operation	-30 oC ~ +60 oC
Dimensions	145 (H) x 85 (W) x 28 (D) mm
Power	DC 24 V / 48 V \| 1000 mA max.
Weight	800 g

Opis

Akuvox
Video intercom kit
Technology 2 wires & WiFi

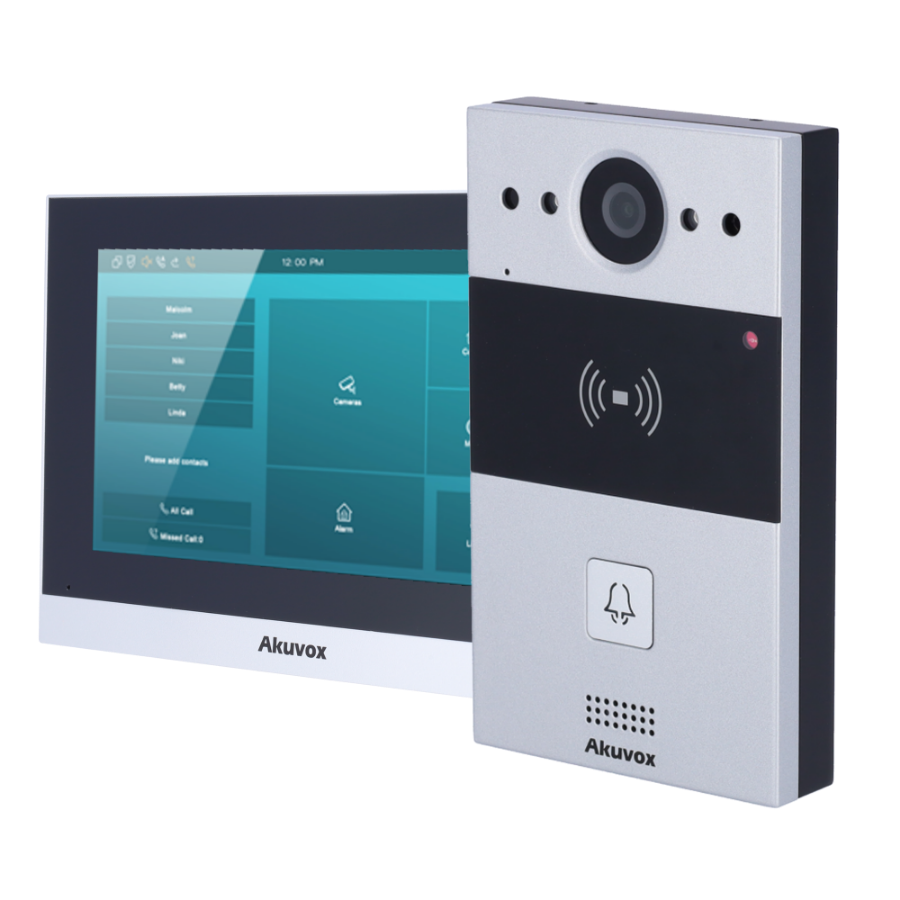

Kit consisting of: AK-R20A-2 outdoor surface video door entry panel with 2 Mpx HD camera and AK-C313W-2 indoor WiFi monitor with 7" TFT LCD screen
EM/MF and NFC card reader
Complete configuration via web browser
Push notifications and device-to-device calls through SmartPlus app
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders

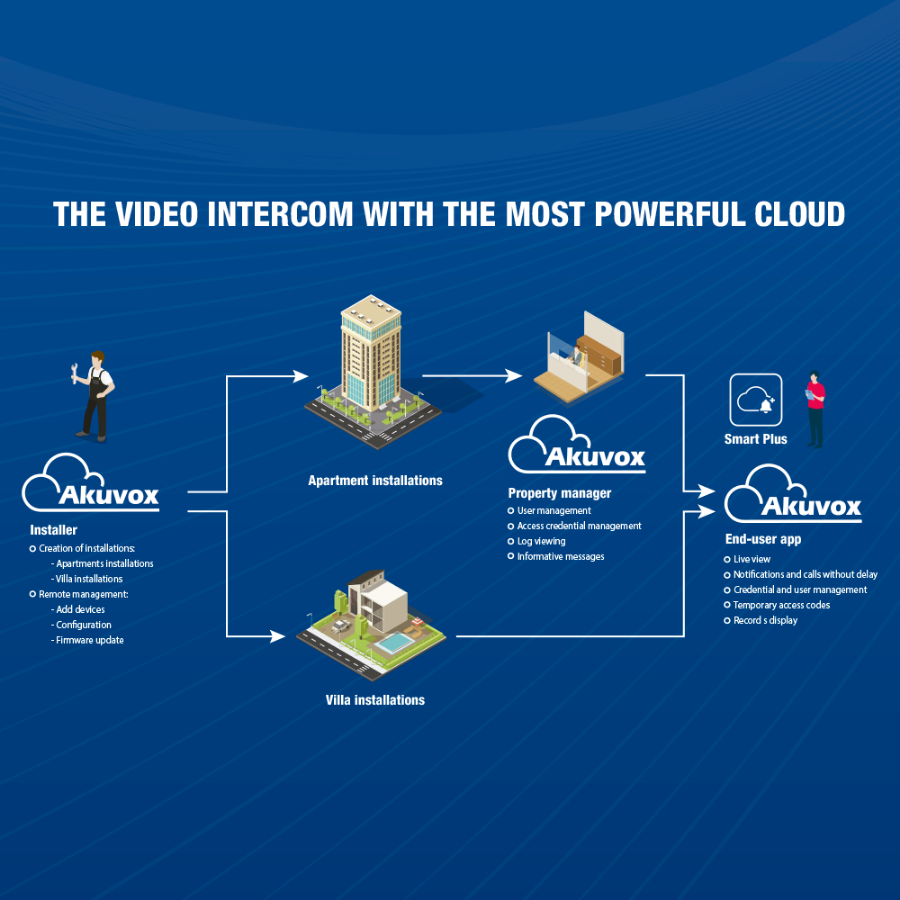

Connection between boards and monitors via cloud in different networks
Remote configuration access for installation
Connection distance up to 100 meters between board and monitor with good quality cable
