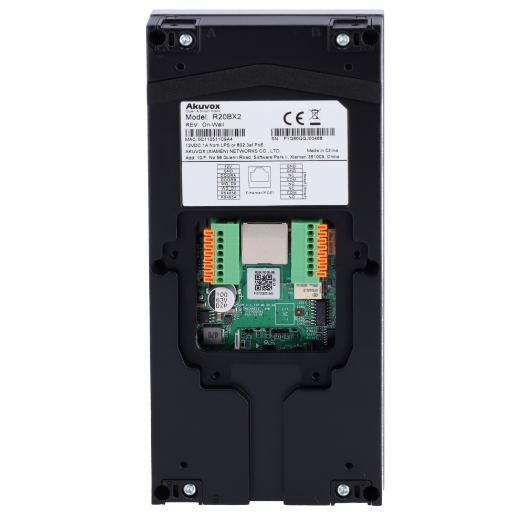

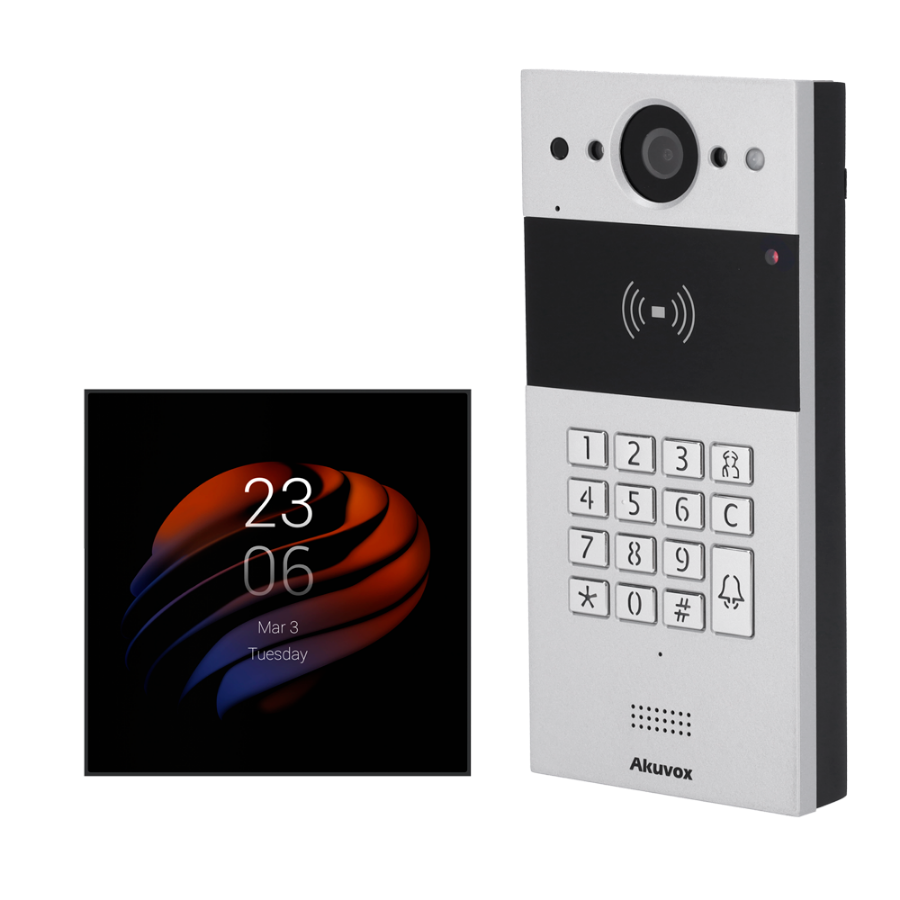

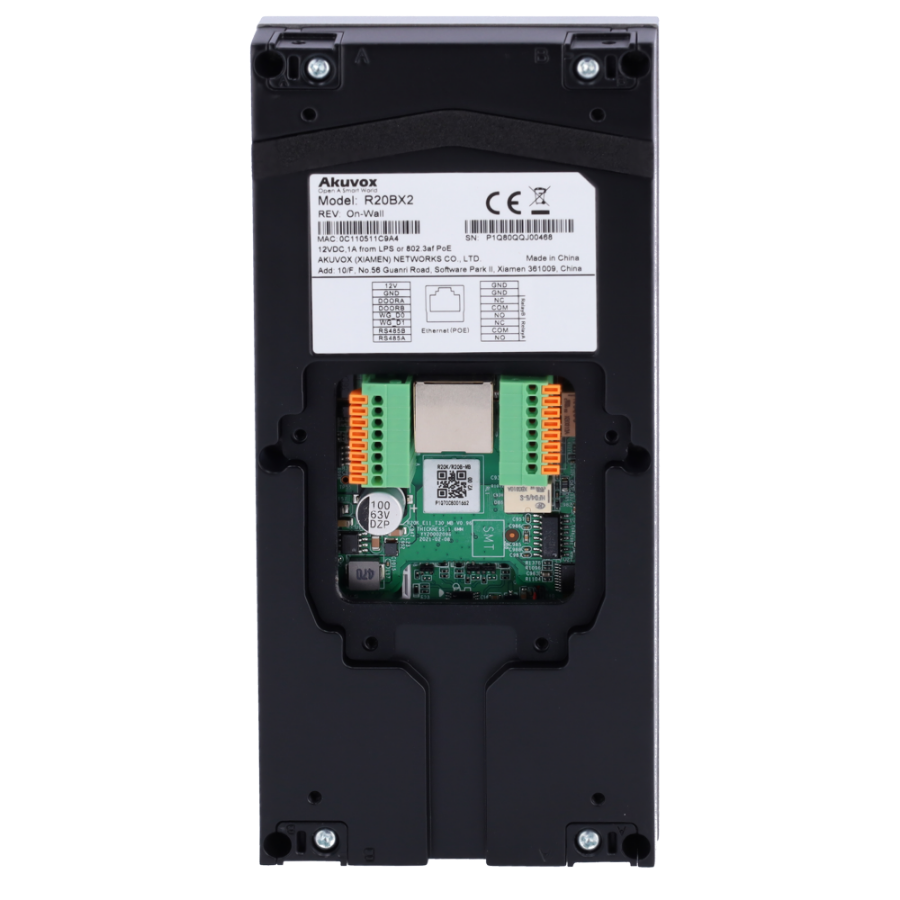

| Brand | Akuvox |
| Model | R20K |
| Access control | Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC and PIN, with records |
| Capacity | Contacts: 1.000RFID users: 5.000 cards/passwords |
| Keypad | Mechanical numeric call button panel with configurable LED illumination |
| Outputs | 2 x lock relay, 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 2 x output pushbutton and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |
| Remote access | SmartPlus cell phone application or configuration via WEB browserRemote access by Cloud: Included |
| Image sensor | 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor |
| Viewing angle | 110° (H) / 58° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 y H.265 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711µ, G.729, G.722DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |

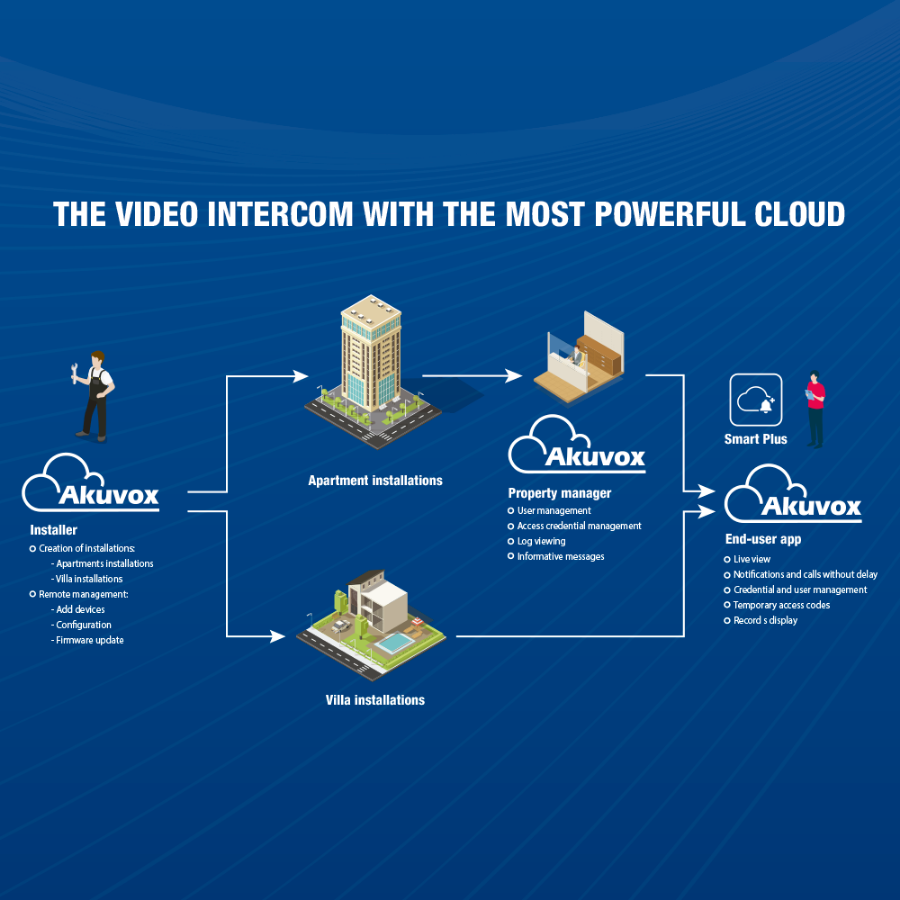

| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Aluminium alloy |
| Degree of protection | IP65 y IK07 |
| Temp. operation | -30 oC ~ +65 oC |
| Dimensions | 185 (H) x 85 (W) x 29 (D) mm |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Weight | 800 g |
| Range | EasyAccess |

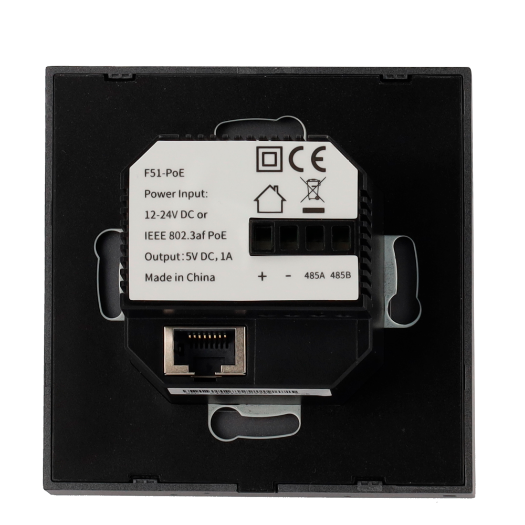

| Brand | AkuvoxAkubela range |
| Model | PS51-POE-EU |
| Operating system | Android 10.0 |
| Hardware | RAM: 1 GB | ROM: 8 GB |
| LCD | 4" TFT 480 x 480 |
| Operation mode | Capacitive touch panel |
| Inputs | 1 x RS485 |
| Outputs | Does not have |
| Sensors | Proximity, light, temperature and humidity |
| Functions | Search and management of home automation devicesIntelligent scene management and automationVideo door entry monitor |
| Audio | Two-way audio with dual microphone and noise-reduction speaker with Crystal Clear Audio technology |
| Remote access | Configuration through WEB browserBela Home mobile application (scenes and automations) or SmarPlus (intercommunication)Remote access by Cloud: Included |
| Network interface | Ethernet 10/100 BaseT / WiFi 802.11b/g/n / Bluetooth 4.2 / ZigBee 3.0 |
| Power | DC 12-24 V / 600 mA máx.Standard PoE (IEEE802.3af) |
| Temp. operation | -10 oC ~ +55 oC |
| Dimensions | 86 (W) x 86 (H) x 47.4 (D) mm |
| Weight | 400 g |
