| Brand | Akuvox |
| Model | AK-ACR-CRP11 |
| Card reading distance | < 5 cm |
| Identification modes | Card (RFID EM 125 kHz and MF 13.56 MHz) and password |

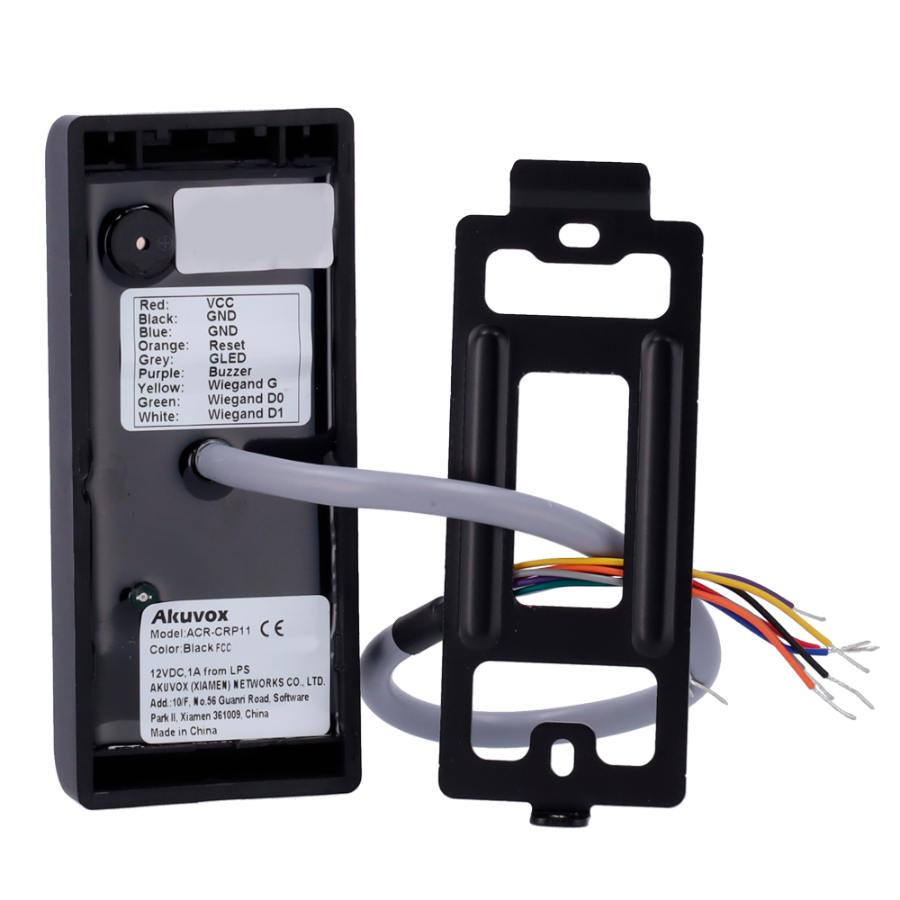

| Outputs | Wiegand 26/34, buzzer for status indication |
| Compatibility | Akuvox AK-A094 controllers and third-party devices |
| Power | DC 12 V / 150 mA máx. |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -10 oC ~ +60 oC |
| Dimensions | 121 (H) x 52 (W) x 18 (D) mm |
| Weight | 80 g |
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.

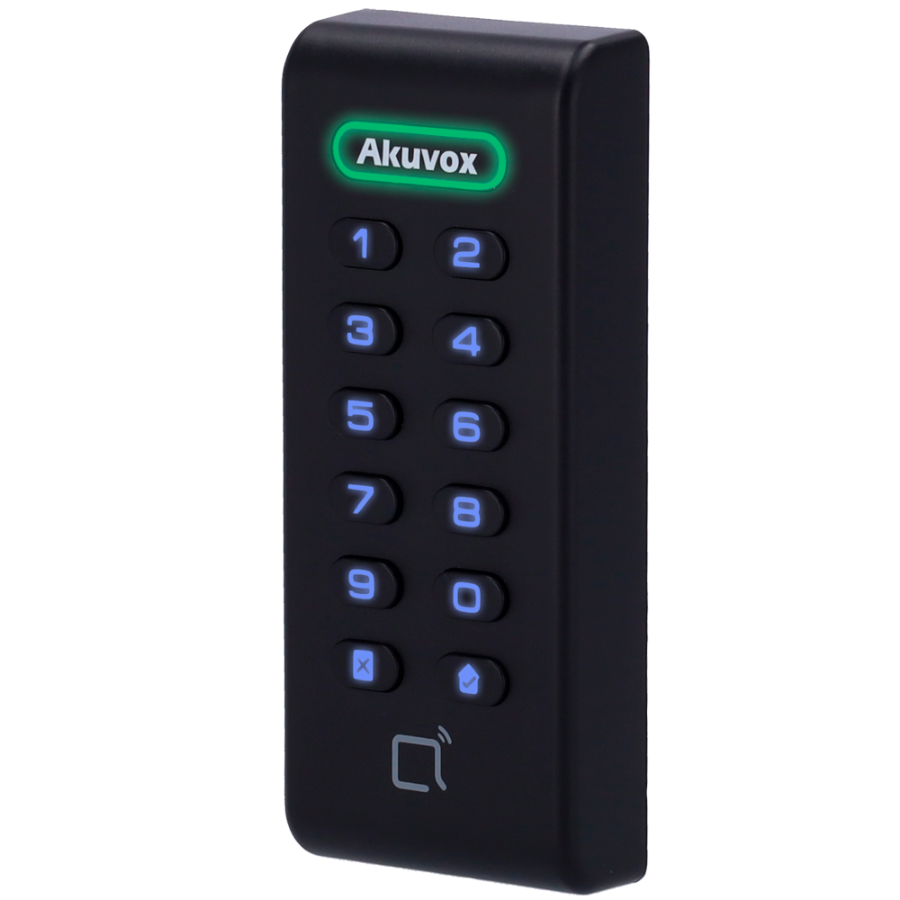

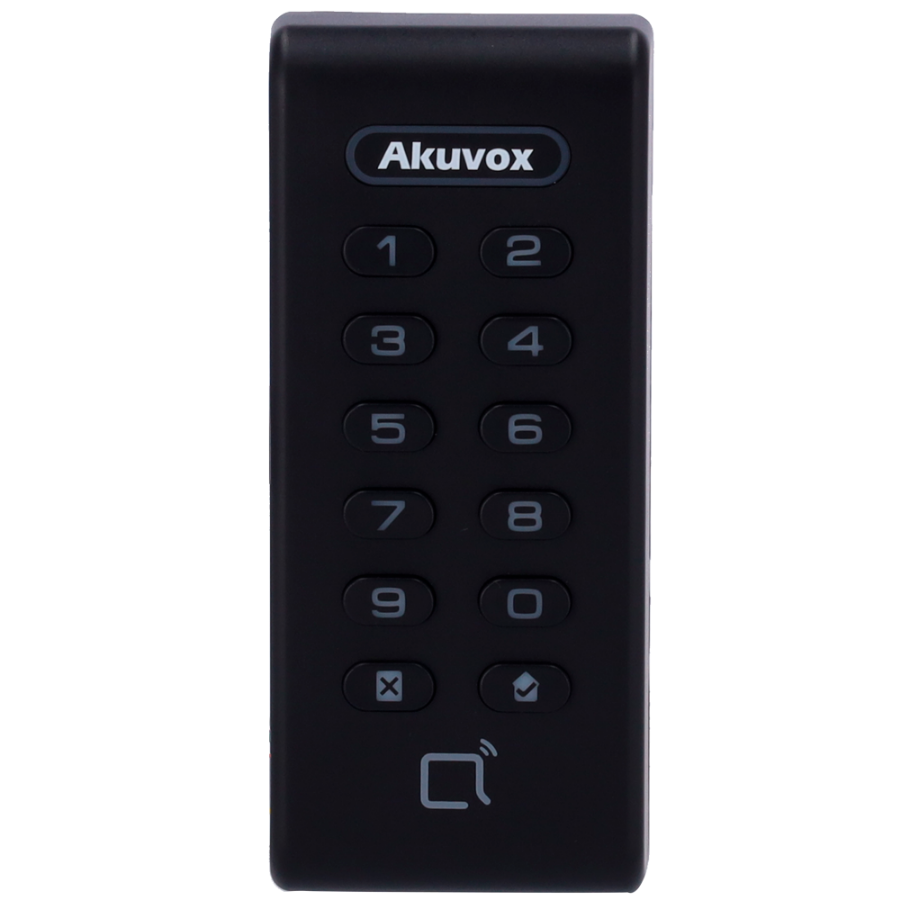

This reader allows identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz, as well as keypad for numeric codes.
The connection to the controllers is made via Wiegand. This protocol allows a secure connection in the outdoor installation with its IP65 grade.
