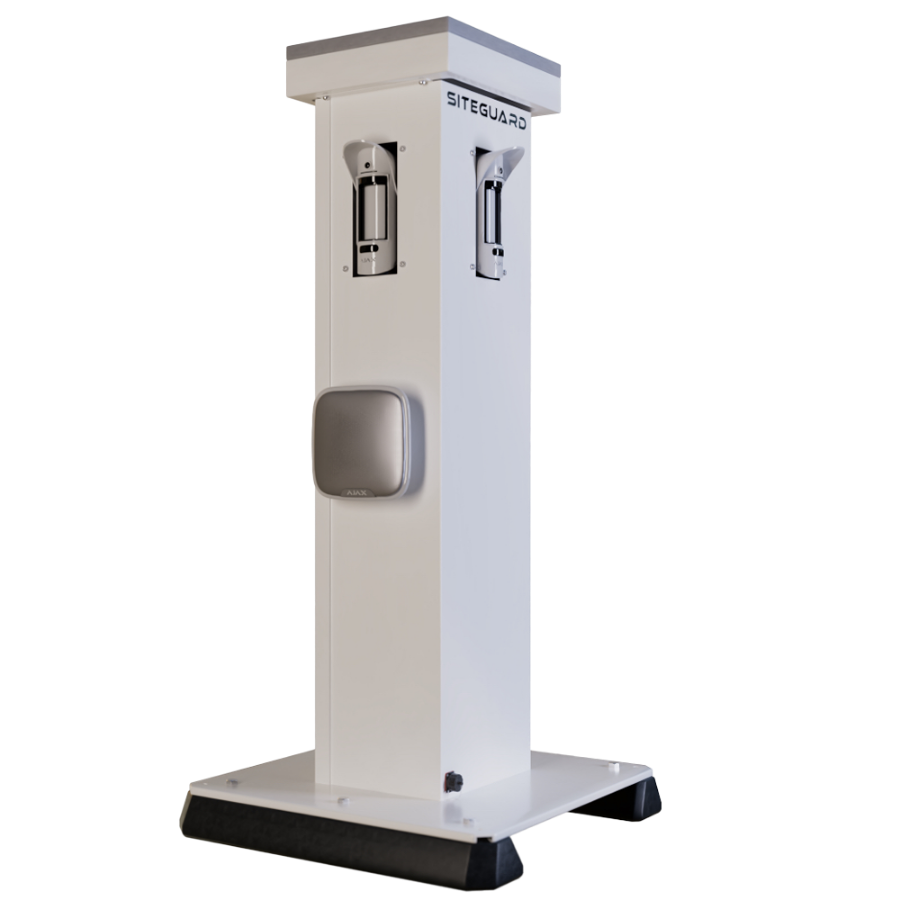

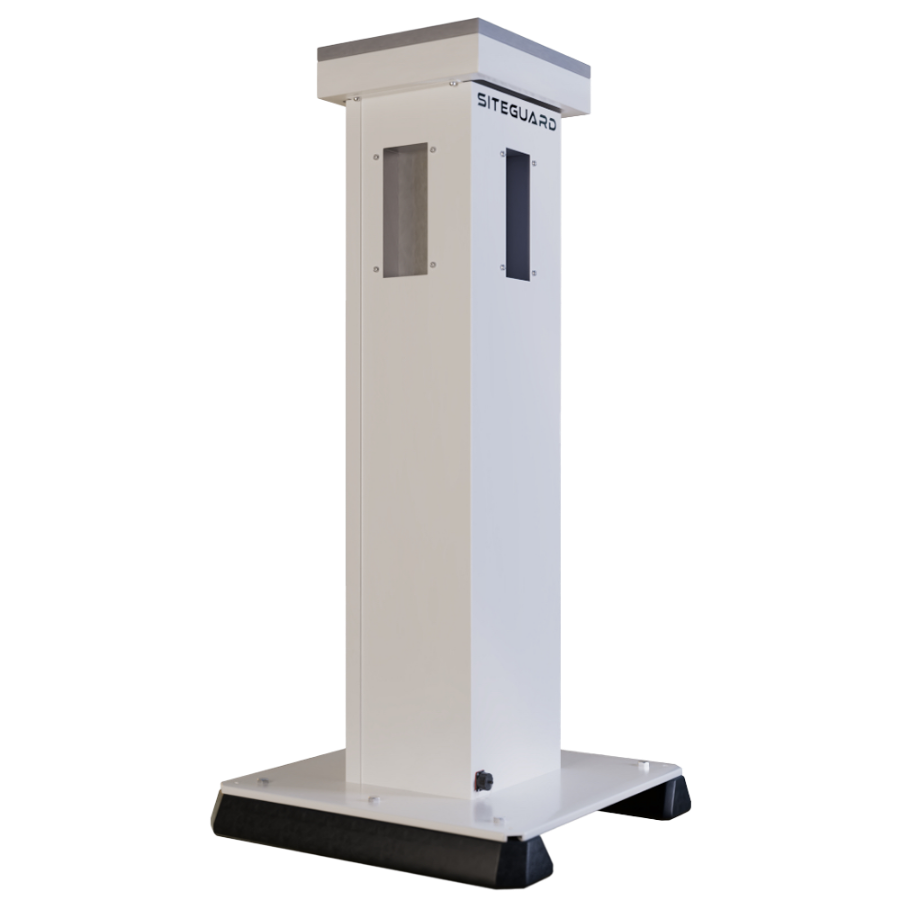

| Brand | SiteGuard Ajax Ready |
| Use | Perimeter protection tower 360o with instant photo verification |

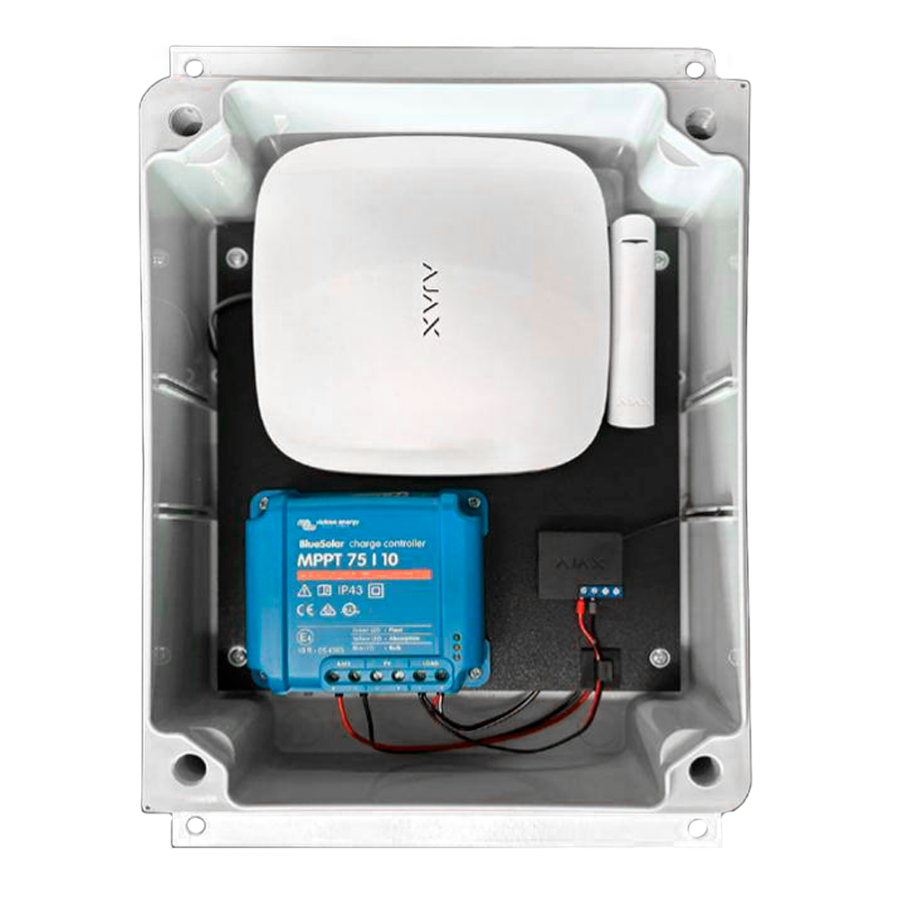

| Equipment included | Solar PanelMPPT RegulatorStructure2 anti-vibration blocks bolted to tower baseConnection for lead acid backup battery installationExternal power connector for indoor use (optional use) |
| Recommended Ajax devices | Control panel: 1 x AJ-HUB2-W/B or AJ-HUB2-4G-W/B Power supply module: 1 x AJ-DC1224V-PCB2Outdoor PIRCam: 4 x AJ-MOTIONCAMOUTDOOR-W or AJ-MOTIONCAMOUTDOOR-PHOD-WOutdoor siren: 2 x AJ-STREETSIREN-W/BTil |
| Backup battery connection | Connection for lead acid battery installation 12 V (up to 85 Ah) |
| Recommended backup battery | BATT-1244-U |

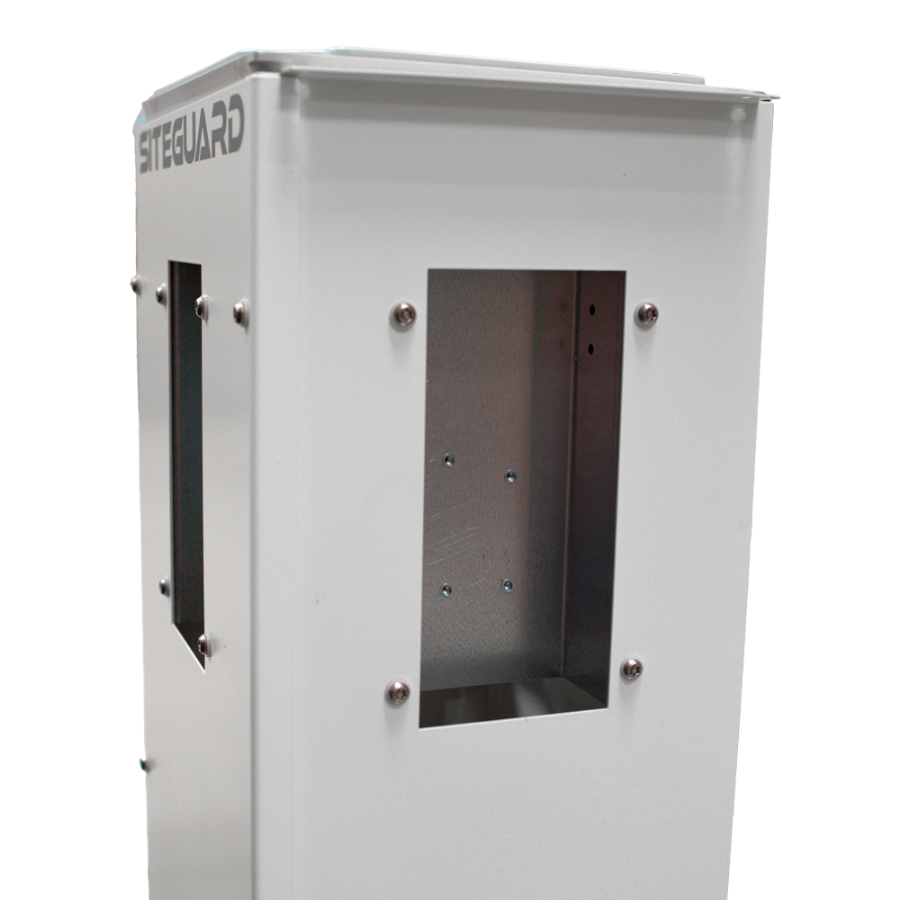

| Tower material | Galvanized steel |
| Junction box | Available for equipment storage. Protection IP65 |
| Dimensions | Height: 138 cmBase: 68 (W) x 68 (D) cm |
| Bolts | TX30 M6 x 12 mm |
| Weight (without battery) | 37 kg |
| Colour | White |

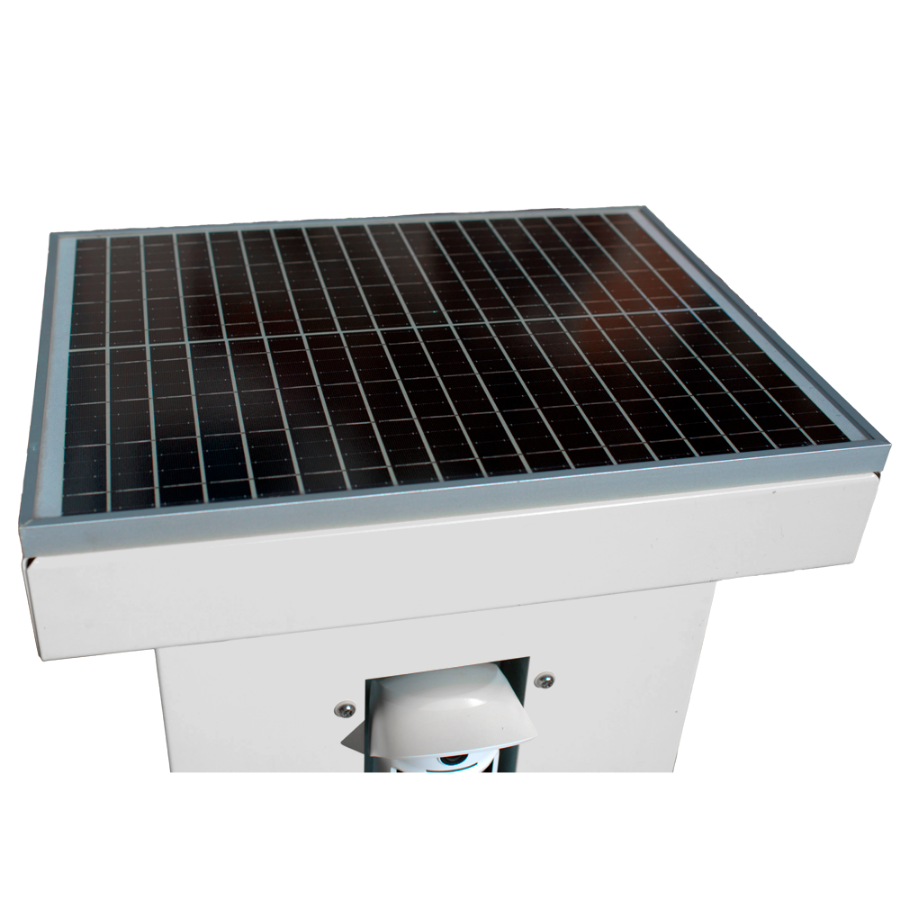

| Nominal power | 25 W |
| Solar cell type | Monocrystalline |
| Maximum peak voltage (Vmp) | 18 V |
| Open circuit voltage (Voc) | 22,41 V |
| Short circuit current | 1,54 A |
| Maximum current | 1,4 A |
| Dimensions | 421 (H) x 320 (W) x 20 (D) mm |
| Weight | 0,75 kg |
| Material | Tempered glass |
| Service life | >20 years |
| Degree of protection of junction box | IP65 |

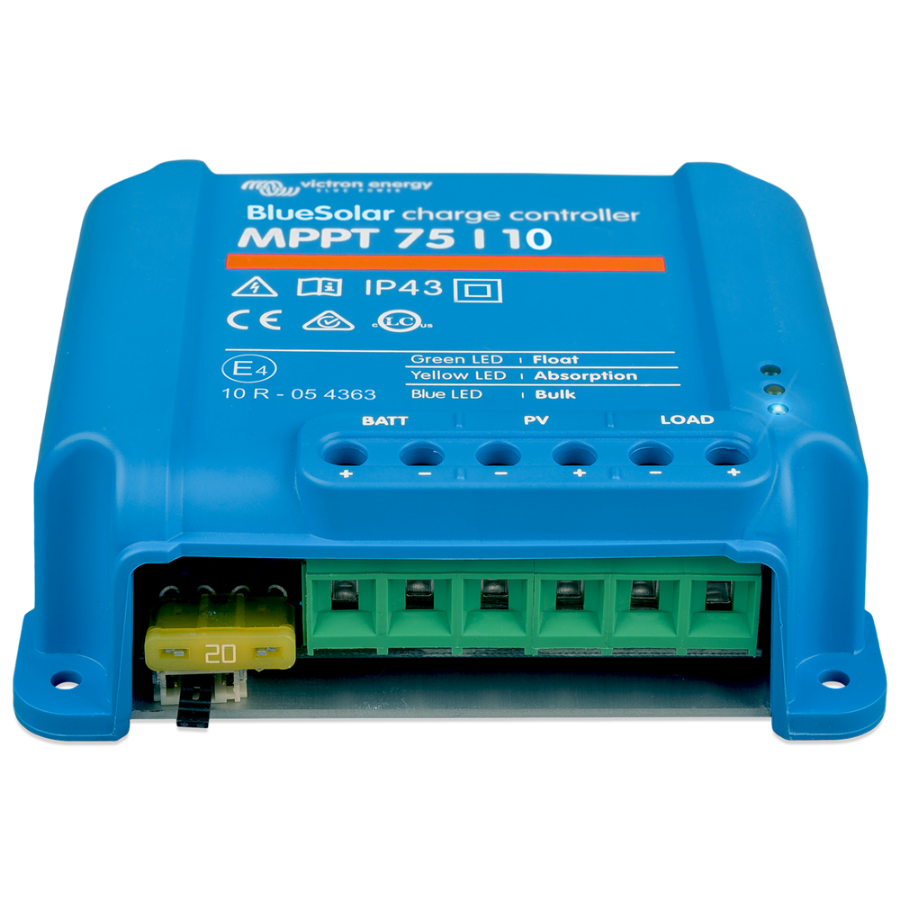

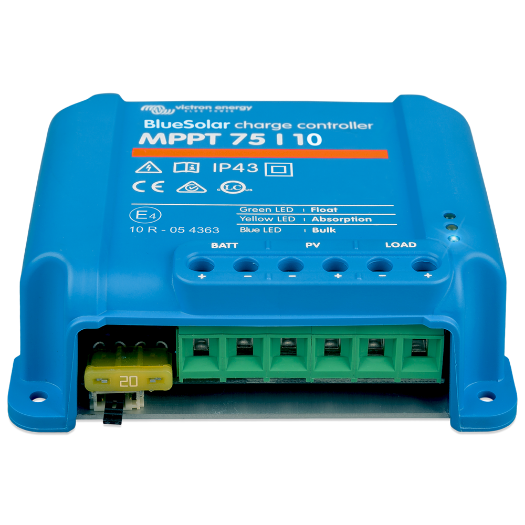

| Brand | Victron Energy |
| Battery voltage | 12 V (preset for lead-acid battery) |
| Rated load current | 10 A |
| Nominal potential | 145 W (@12 V) |
| Maximum solar short circuit current | 13 A |
| Automatic load disconnection | Available |
| Maximum efficiency | 98% |
| Charging algorithm | Adaptive multistage for optimized recharge cycles and maintenance of charge over extended periods of time |
| Maximum continuous load current | 15 A |
| Load disconnect voltage | 11,1 - 11,8 V |
| Load reconnection voltage | 13,1 - 14V |
| Protection | Short-circuit, over-temperature and fuse to protect against battery polarity inversion |
| Operating temperature | -30oC to +60oC |
| Dimensions | 100 (H) x 113 (W) x 40 (D) mm |
| Weight | 0,15 kg |
