| Model | ACR205-QR-MF |
| Activation sensor | Infrared auto-activation |
| Identification modes | MF 13.36 MHz and QR card |
| Read time | < 1 sec |
| Card reading distance | < 6 cm |
| QR reading distance | < 20 cm |
| Outputs | Wiegand 26/34, buzzer for status indication, tamperUSB for configuration |
| Compatibility | Third-party access control equipment with Wiegand connection |
| Power | DC 12 V / 800 mA max. |
| Degree of protection | Interior |
| Temp. operation | -20o C ~ +70o C |
| Dimensions | 86 (W) x 86 (H) x 12 (D) mm |
| Weight | 150 g |
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.

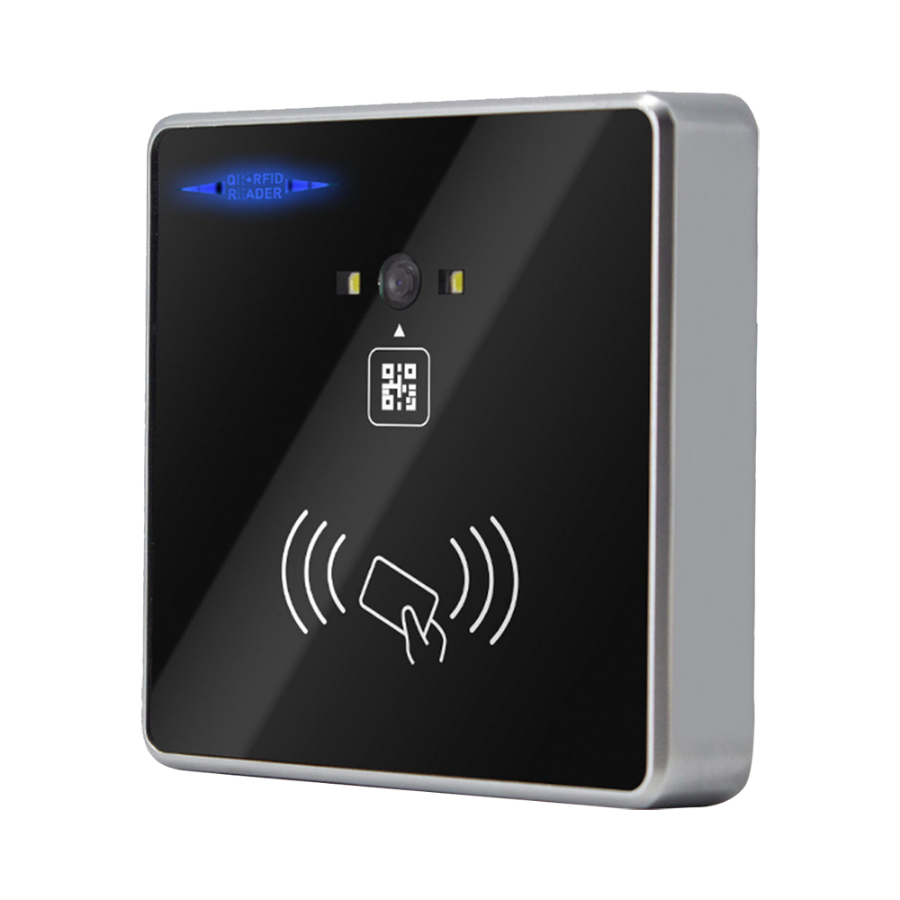

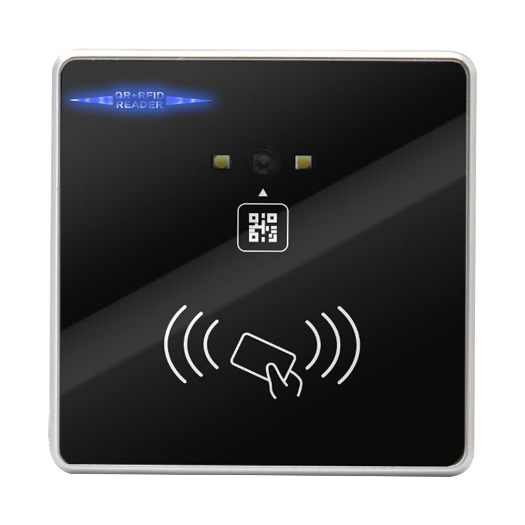

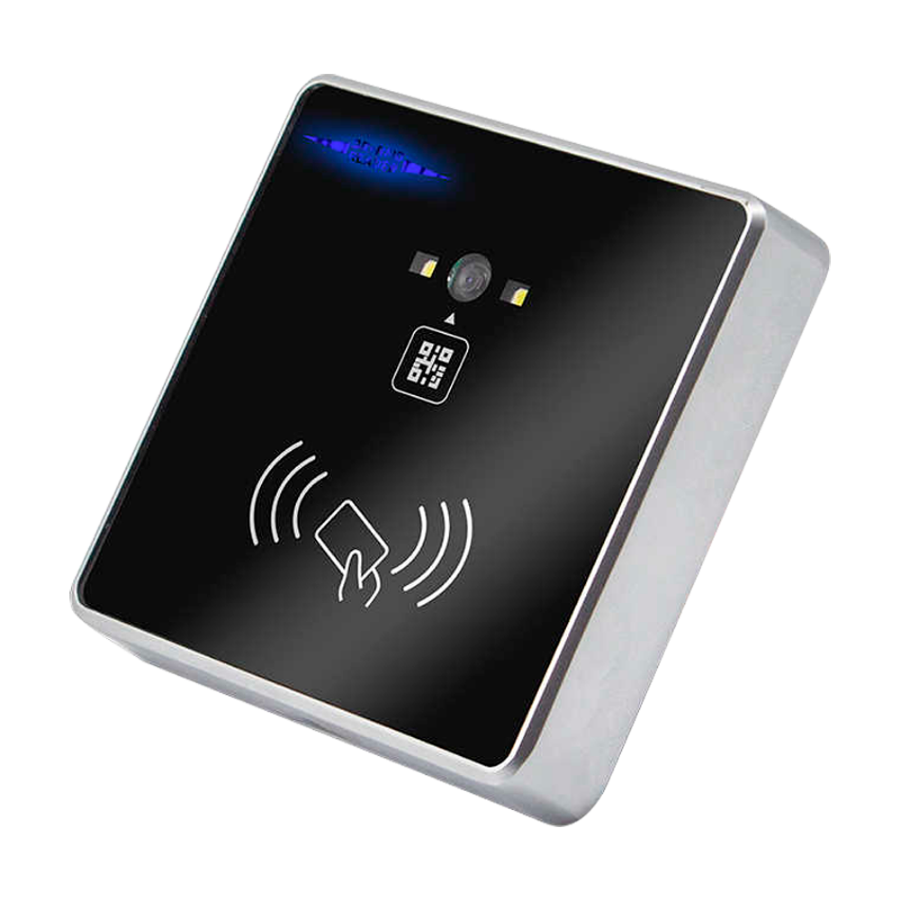

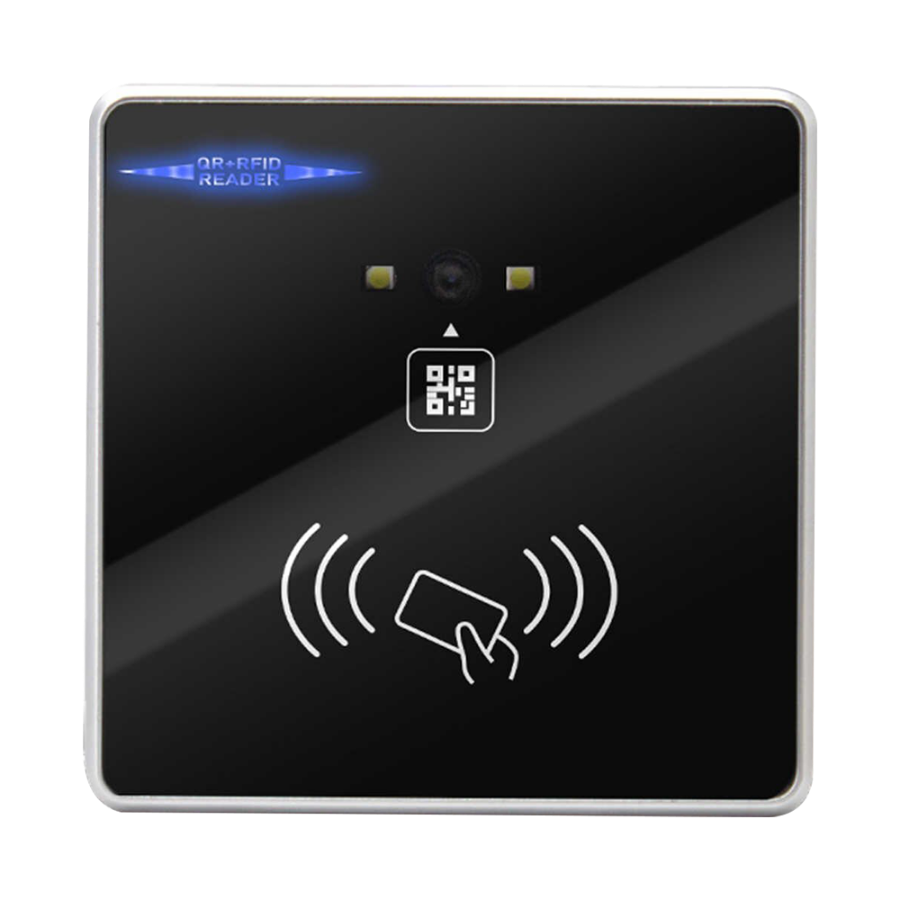

This reader allows identification through cards or key fobs with MF technology of 13.56 MHz and QR code reading.
The connection to the controllers is made via Wiegand. This protocol allows a secure connection to the installation.
