| Detection range | 30m outdoor |
| Number of beams | 4 |
| Detection method | Interruption of 2 continuous beams at a time |
| Sensitivity | Adjustable between L, M H |
| Frequency channels | 2 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A) |

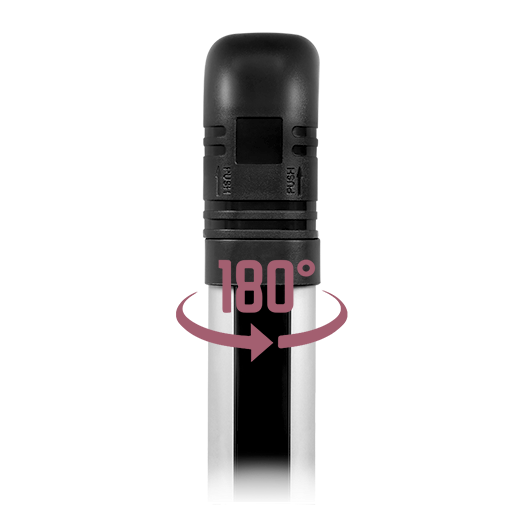

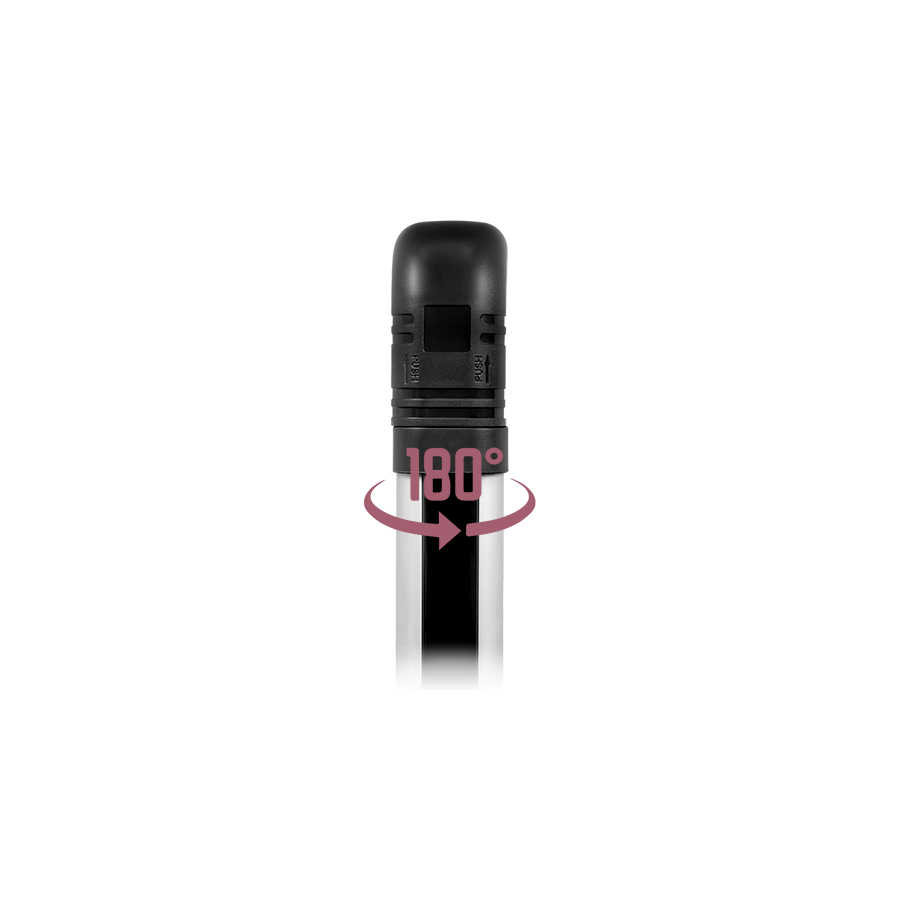

| Alignment angle | Horizontal 180°(±90°) |
| Adjustment method | Over LED and buzzer |
| Operating temperature | -25oC ~ +55oC |
| Degree of protection | IP65 |
| Power | 9~30 VDC, 50~120 mA |
| Dimensions | 76(H) x 4(W) x 7(D)cm |
