| Use | Infrared barrier detector |
| Detection range | 600m indoor / 200m outdoor |
| Number of beams | 3 |
| Detection method | Interruption of the 3 beams at once |
| Interruption time | 50ms, 100ms, 300ms, 700ms (available) |
| Frequency channels | 4 different channels over DIP Switch |
| Alarm outputs | Alarm output NO/NC , tamper output NC, low battery output NC |
| Compatibility | Compatible with Ajax Transmitter module or Ajax DoorProtect/DoorProtect Plus external contact |
| Alignment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |
| Operating temperature | -25oC ~ +55oC |
| Degree of protection | IP65 |
| Power | Batteries ER34615H, includes 2 batteries (one for each barrier) |
| Autonomy | 3 years with one battery and 6 years with two batteries each barrier |
| Dimensions | 291 (H) x 91 (W) x 92 (D) mm |
| Installation | Exterior or interior, on wall or pole |

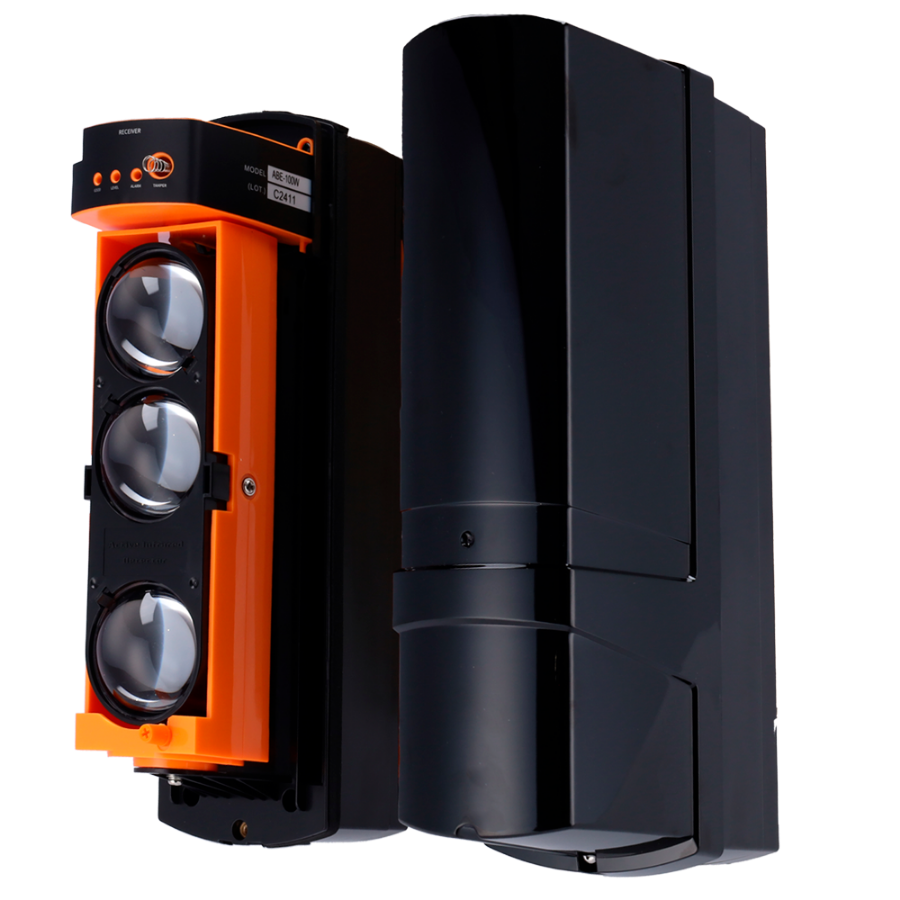

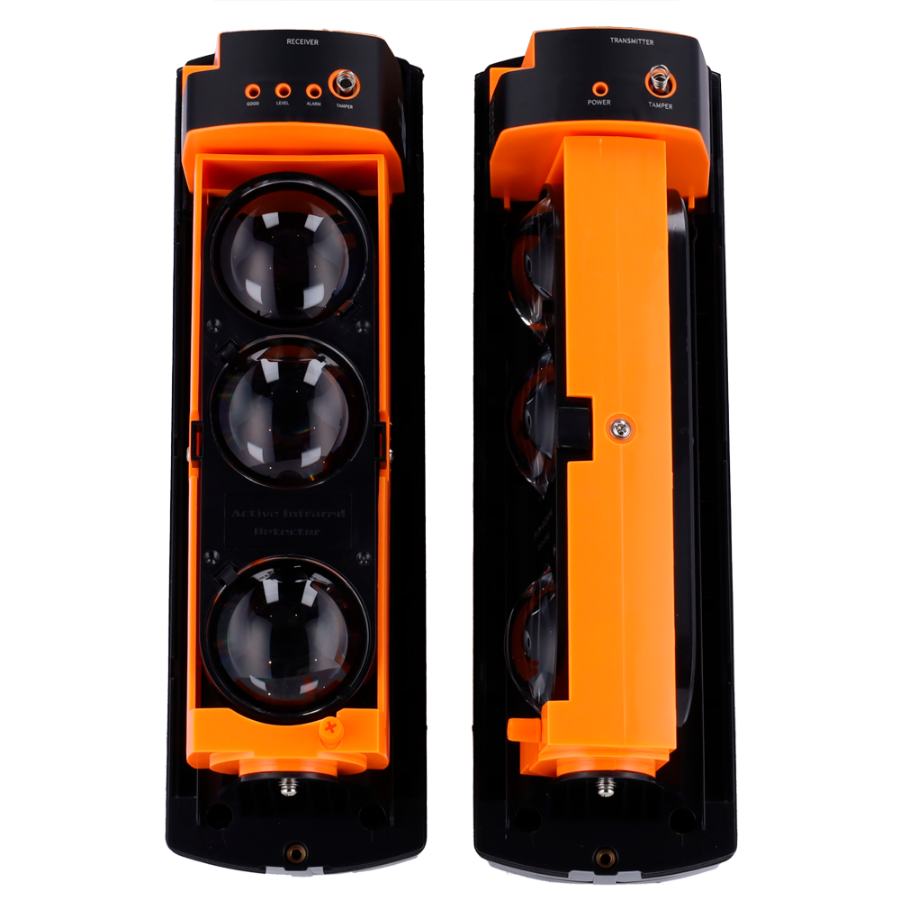

The ABE-200W is a triple-beam infrared barrier designed for perimeter security applications, providing accurate and reliable detection both indoors and outdoors. Its maximum detection range is 600 meters indoors and 200 meters outdoors, adapting to different protection needs.

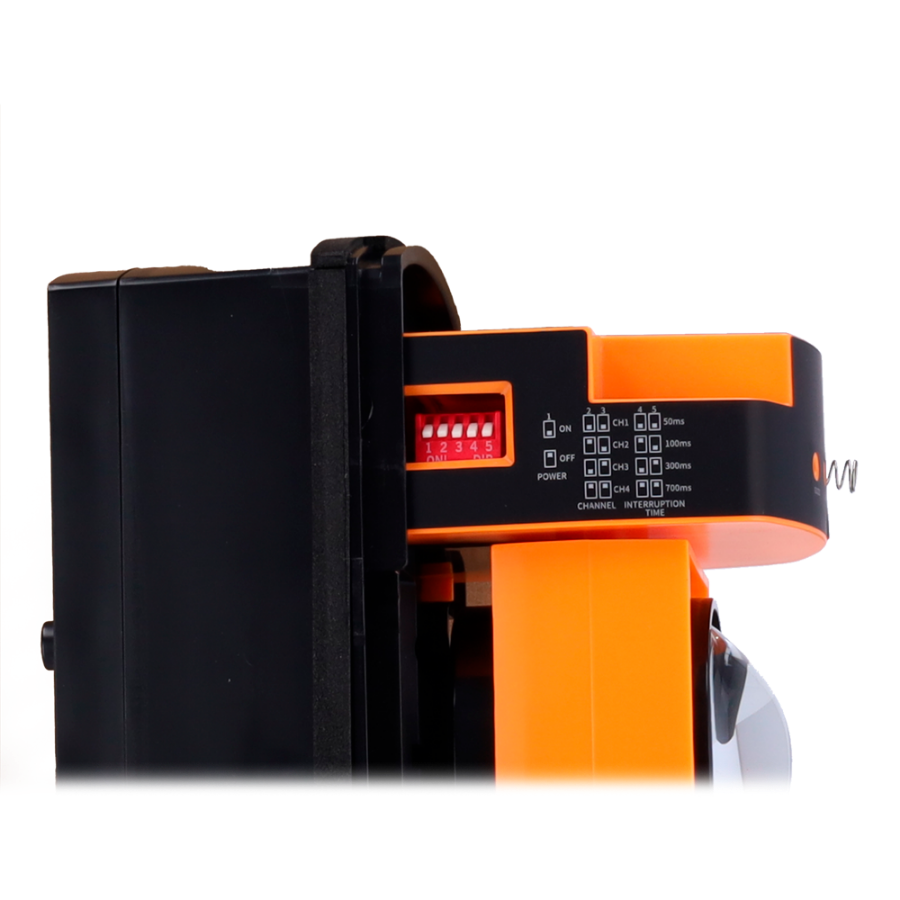

This wireless device is compatible with Ajax Transmitter or DoorProtect modules, facilitating integration into existing alarm systems. Lenses are horizontally ±90° and vertically ±10°, adjustable for optimal alignment during installation. In addition, it has a DIP switch for programming and offers four working frequencies, ensuring a flexible configuration adapted to each environment.

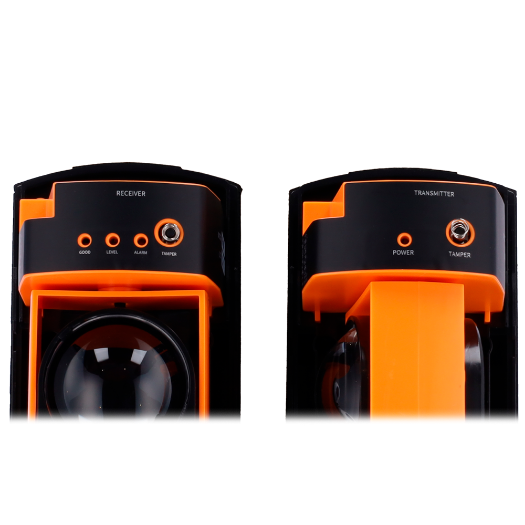

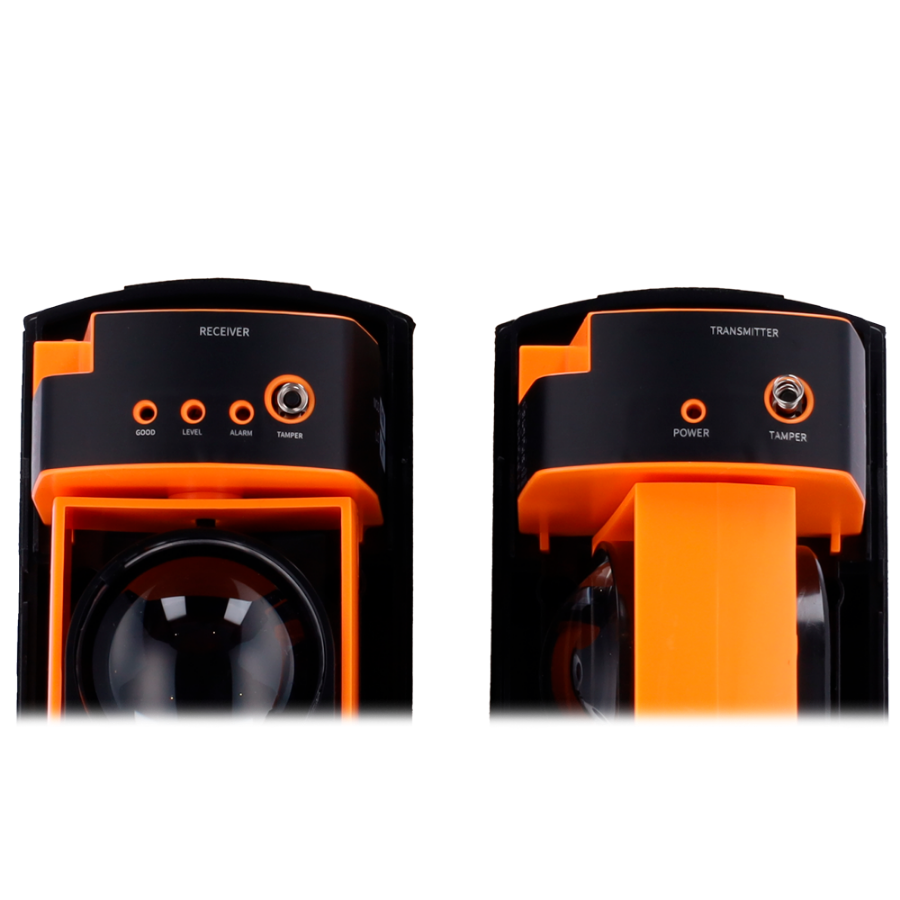

The ABE-200W incorporates a double tamper protection with tamper (front and rear) that protects against unauthorized tampering, guaranteeing the integrity of the system. Its robust and resistant design, with IP65 certification, makes it an ideal solution for perimeter protection in various applications.
